Kramer TP-582R [11/25] Your tp 582t hdmi switcher line transmitter
![Kramer TP-582R [11/25] Your tp 582t hdmi switcher line transmitter](/views2/1153102/page11/bgb.png)
8
TP-581T, TP-582T and TP‑582R - Defining the Devices
4.2 Your TP-582T HDMI Switcher/Line Transmitter

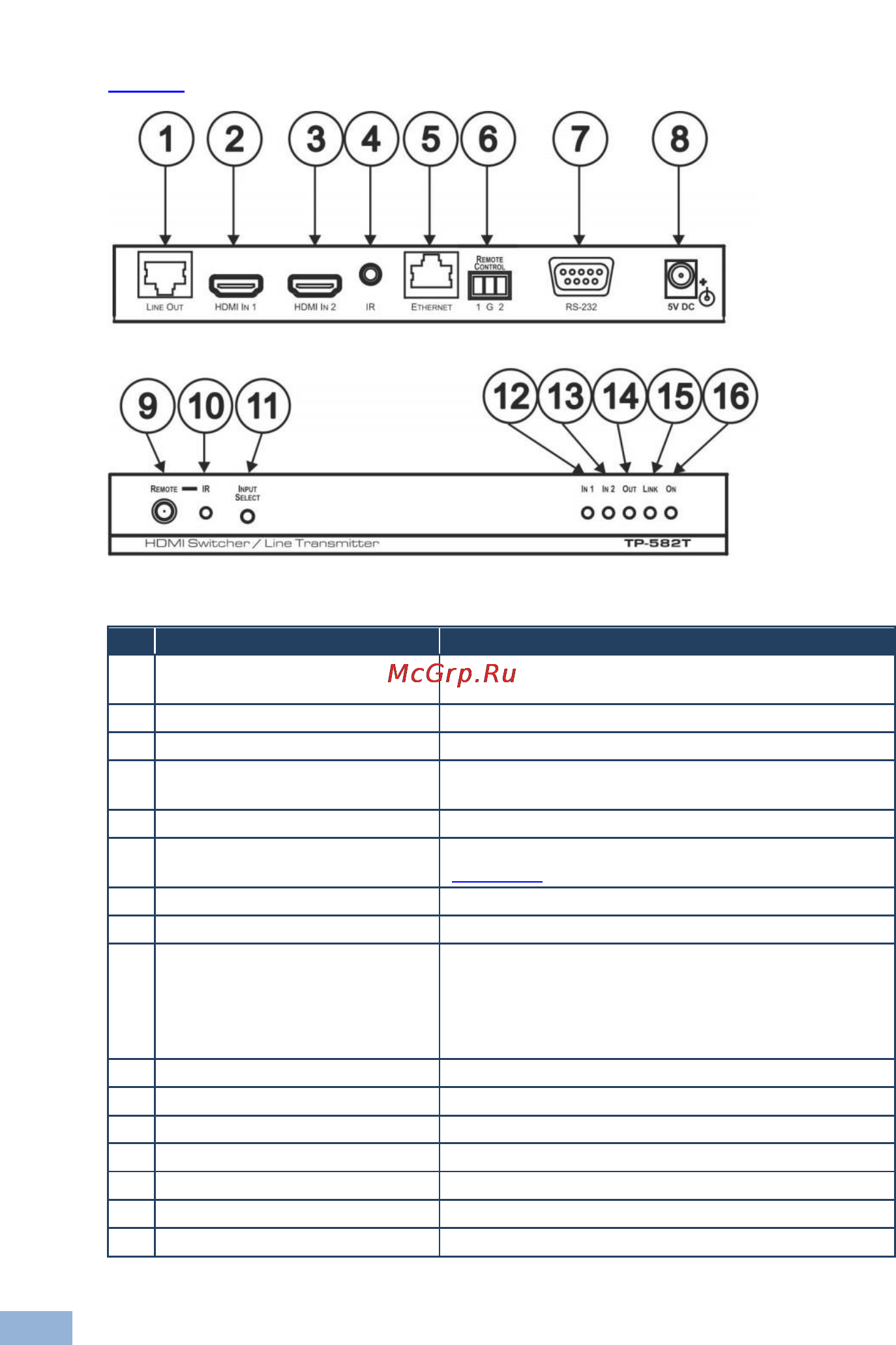

Figure 2 defines the TP-582T:
Figure 2: TP-582T HDMI Switcher/Line Transmitter
#
Feature
Function
1
LINE OUT RJ-45 Connector
Connects to the CAT 5 IN RJ-45 connector on the
TP-582R
2
HDMI IN 1 Connector
Connects to the HDMI source 1
3
HDMI IN 2 Connector
Connects to the HDMI source 2
4
IR 3.5mm Mini Jack Connector
Connects to an external infrared transmitter/sensor
(receiver)
5
ETHERNET Connector
Connects to a network
6
REMOTE CONTROL Terminal
Block
Connects to contact closure switches (see
Section 5.4)
7
RS-232 9-pin D-sub Connector
Connects to an RS-232 port
8
5V DC
+5V DC connector for powering the unit
9
REMOTE IR Sensor
Senses commands from the Kramer IR remote
control device
Note that the IR sensor is only used to select the TP-
582T inputs. These IR signals cannot be transmitted to
the TP-582R
10
IR LED
Lights when an infrared signal is detected
11
INPUT SELECT Switch
Press to toggle between HDMI inputs
12
IN 1 LED
Lights when the HDMI 1 input device is connected
13
IN 2 LED
Lights when the HDMI 2 input device is connected
14
OUT LED
Lights when an HDMI output device is detected
15
LINK LED
Lights when the TP connection is active
16
ON LED
Lights when receiving power
