VP-553 - Using the Embedded Web Pages

The lower part of the screen lets you save the settings and upload a saved setting.

The model name, FW version and IP number appear on the lower left side of the

main page.

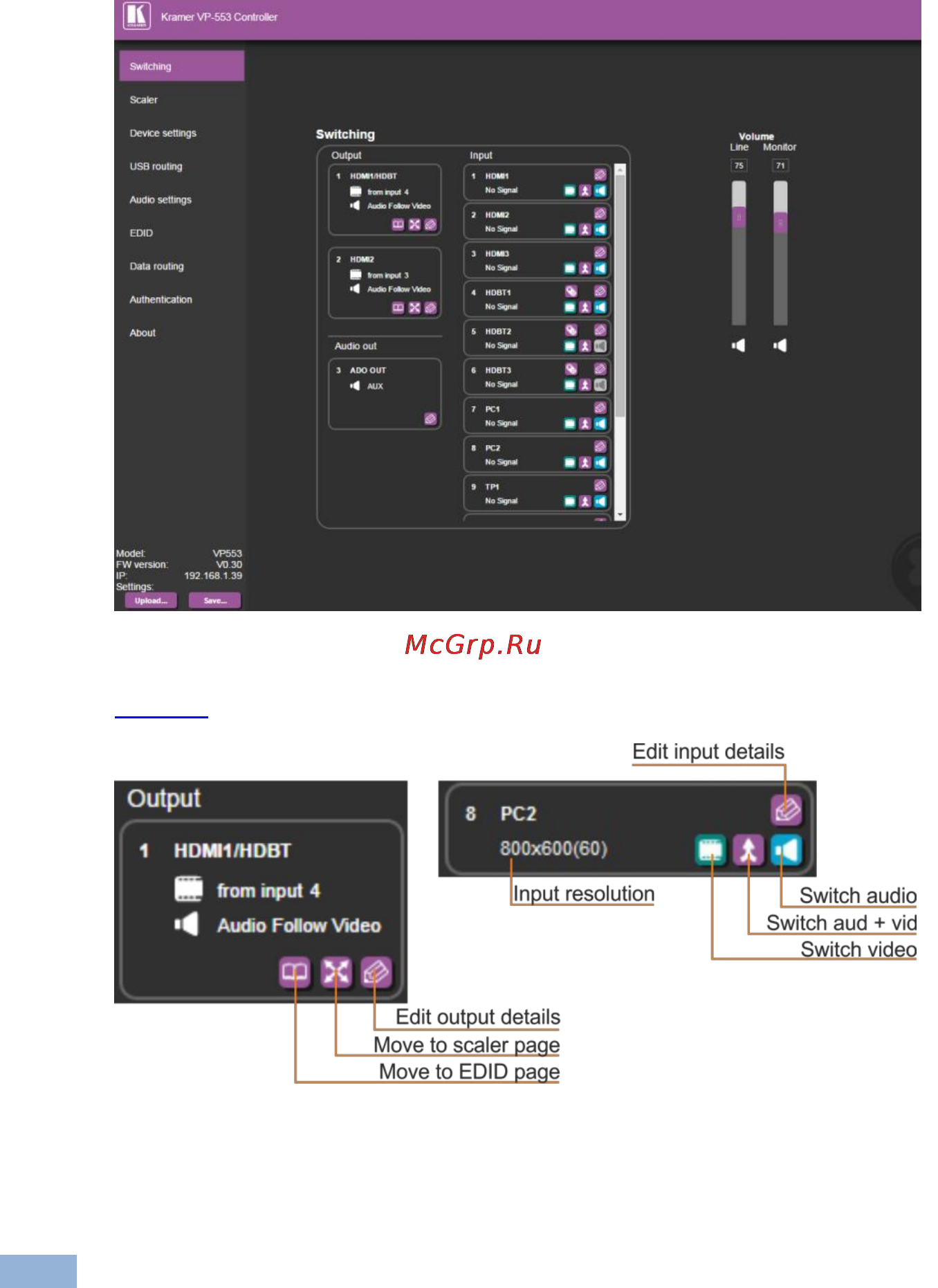

Figure 14: The Switching Page

Figure 15 explains the icons used to switch inputs and outputs.

Figure 15: Switching Page – Input and Output Icons

You can also edit the input and output button by clicking the edit icon.
