VP-553 - Using the Embedded Web Pages

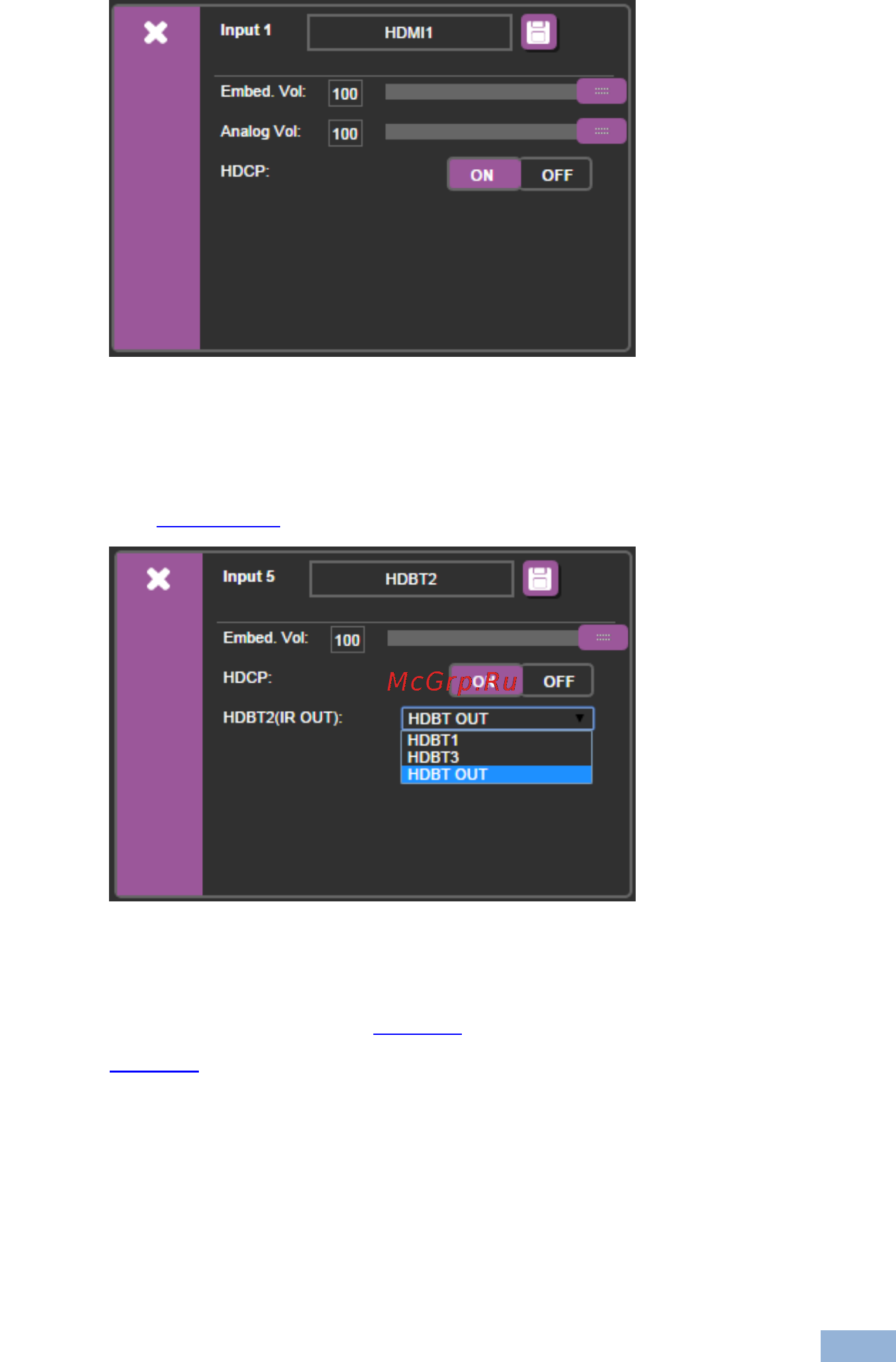

Figure 19: Switching Page – HDMI input Window

When selecting the HDBT input, you can rename the input, set the embedded

audio volume, set the HDCP to ON or OFF, and set the HDBT IR OUT signal route

(see Section 7.2.1):

Figure 20: Switching Page – HDBT input Window

For HDBT inputs, when a Kramer SID-X2N unit is connected to the HDBT input,

click the SID-X2N icon (see Figure 21) to open the SID-X2N setup window (see

Figure 22).
