VP-553 - Using the Embedded Web Pages

To edit an input button, select that button and click the edit icon. The input edit

window appears:

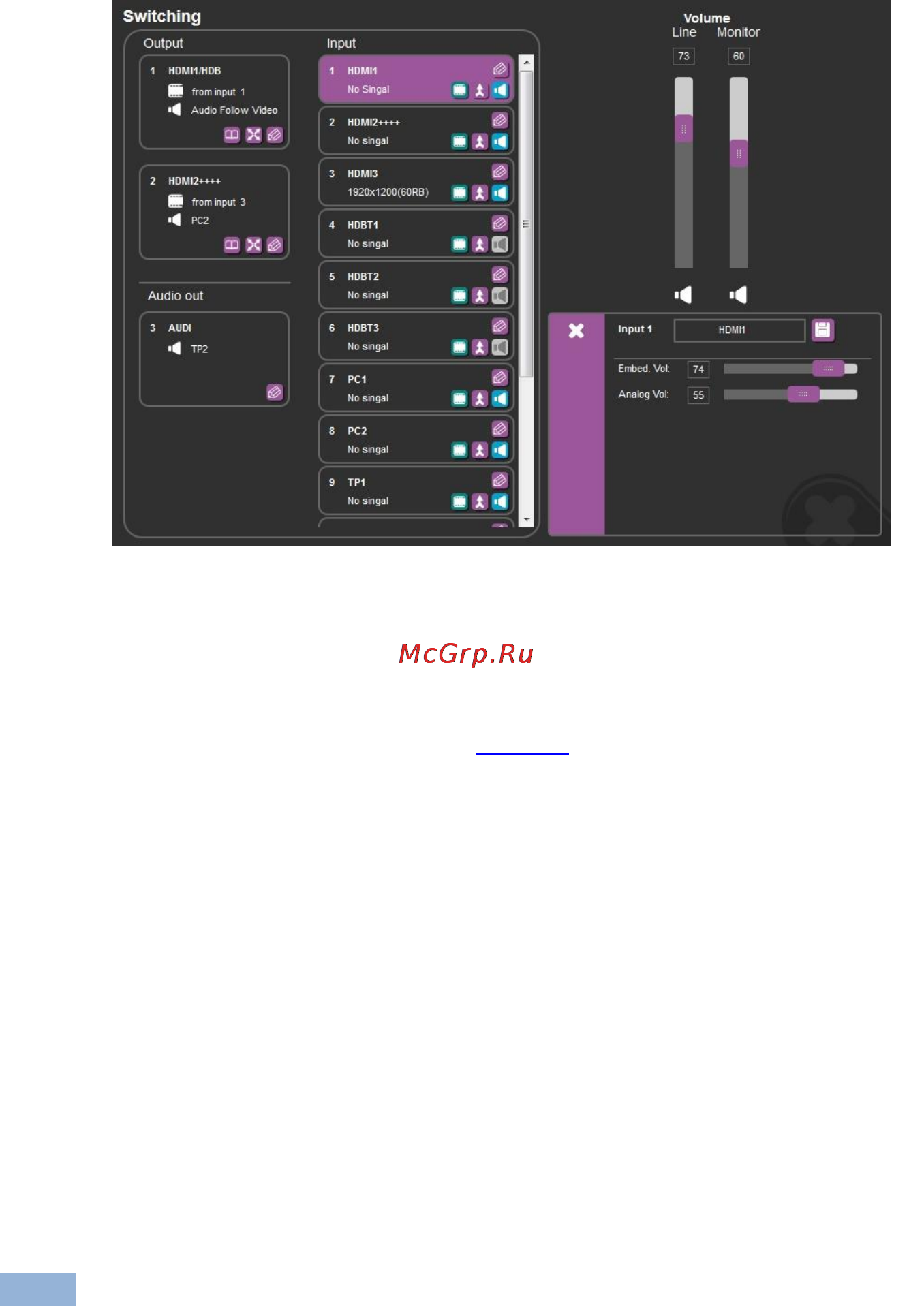

Figure 18: Edit Input Buttons

The input edit window lets you change the name of the input as it will appear on the

Web page and save it, and also set the embedded and analog volume separately.

The input details editing window (see Figure 15) is slightly different for each input

type.

When selecting an HDMI input you can rename the input, set the embedded and

analog audio volume and set HDCP to ON or OFF:
