 Underscan (sometimes know as compress mode) generally leaves a border

around the image

The image appears reduced in size with a margin around it so that none of the data

gets lost.

Overscan

Underscan

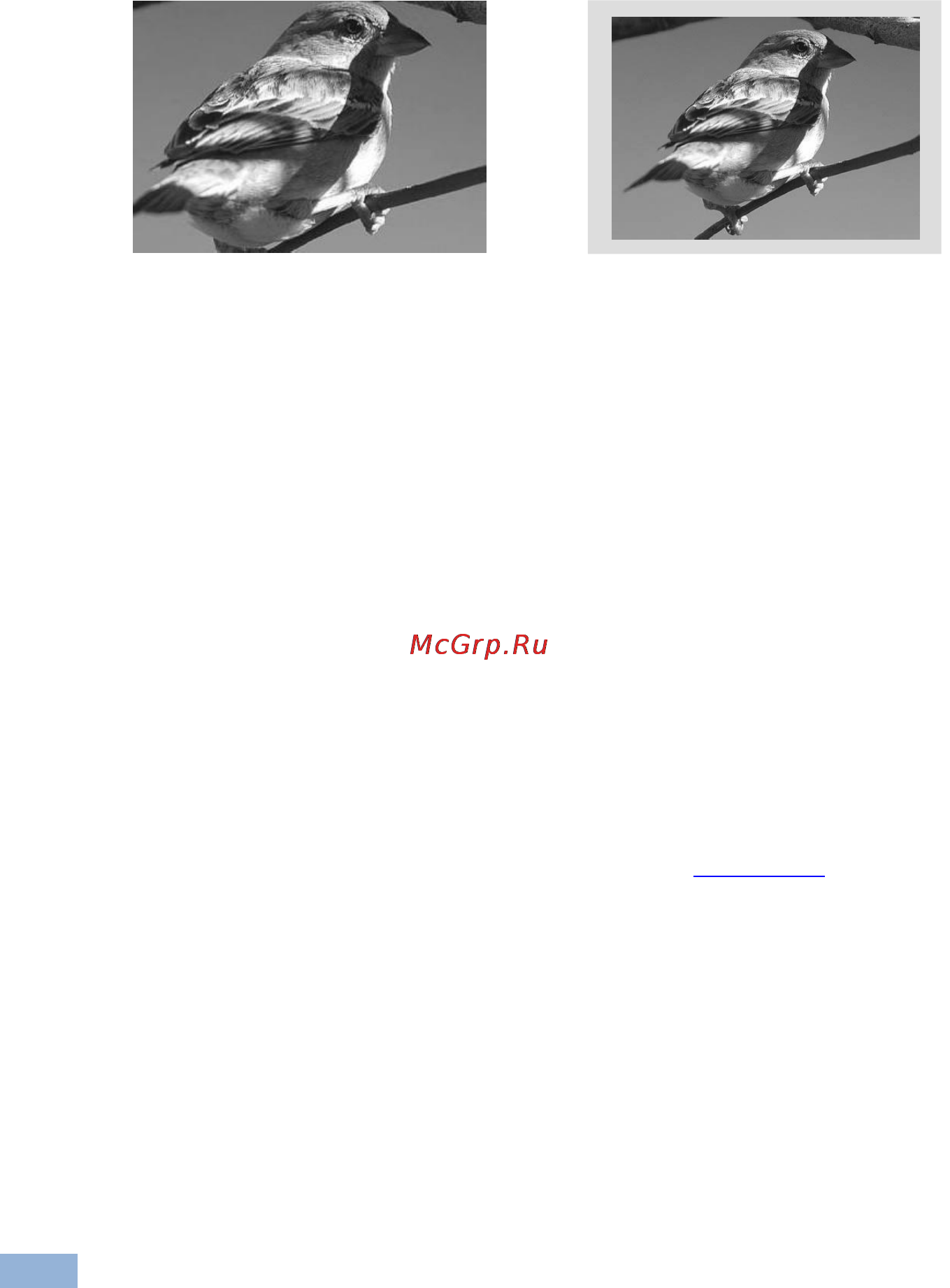

Figure 3: Overscanned and Underscanned images

5.2 Adjusting the Display via the Menu Buttons

The menu buttons (MENU, ENTER,  and +) let you adjust the screen settings.

Use the menu buttons as follows:

 Press the MENU button to display the menu on the screen

Pressing the MENU button disables the quick-set buttons (FREEZE and OS/US)

 Press the MENU button again each time you want to return to the previous

menu level or exit the menu

 Press the + or - buttons to move up or down the menu respectively

 Press ENTER to accept changes

 Before exiting the menu, you can save settings (see Section 5.5.1)

5.3 Using the Menu

Using the main menu, you can adjust the screen display (screen adjustments

apply to both CV and Y/C displays). After pressing the MENU button (quick-set

buttons are disabled), the main Menu appears on the screen. Use the menu

buttons to scroll through the menu and make the required adjustments. The

following table defines the menu items.

The menu times-out after 20 seconds of inactivity.
