Mounting the K-Able Box

To mount a single K-Able Box vertically as illustrated in the example in

Figure 5:

1. Position the vertical-mounting bracket (see Figure 6) such that the

cable exits in line with the TBUS insert.

Note: The vertical mounting bracket is designed to be mounted with the

extension against the side of the TBUS providing the correct spacing between

the TBUS and the K-Able Box.

2. Secure the vertical mounting bracket perpendicular to the TBUS on the

underneath of the table using at least four of the small screws supplied.

3. Slide the pin through the top mounting hole of the K-Able Box

housing so that it protrudes the same distance from each side of the

hole.

4. Slide the bolt through the top rear mounting hole of the K-Able Box.

5. Screw the nut onto the bolt only until the end of the bolt is flush with

the nut.

6. Slide the pin at the front of the K-Able Box housing into the front of

the vertical mounting bracket at the same time as hooking the bolt onto

the rear of the vertical mounting bracket (see Figure 7).

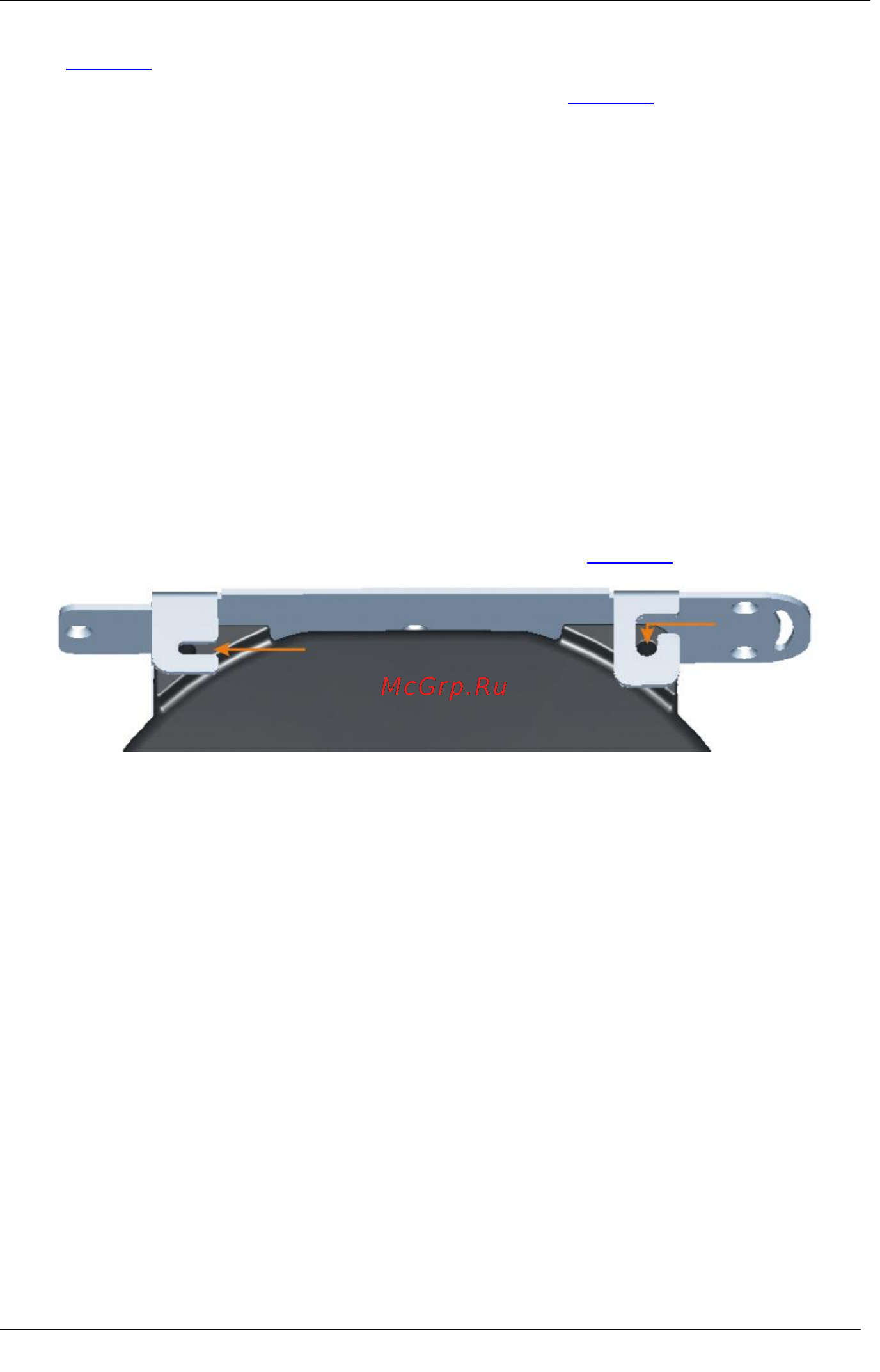

Figure 7: Inserting the Pin and Bolt into the Bracket

7. Tighten the nut on the bolt, securing the K-Able Box to the vertical

mounting bracket.

8. Feed the cable through the TBUS WCP/WCP-2/WCP-21 insert and

secure it to the plate of the TBUS.

9. Slide the plastic friction bush around the cable and press it into the

opening in the insert.
