Using the F-110

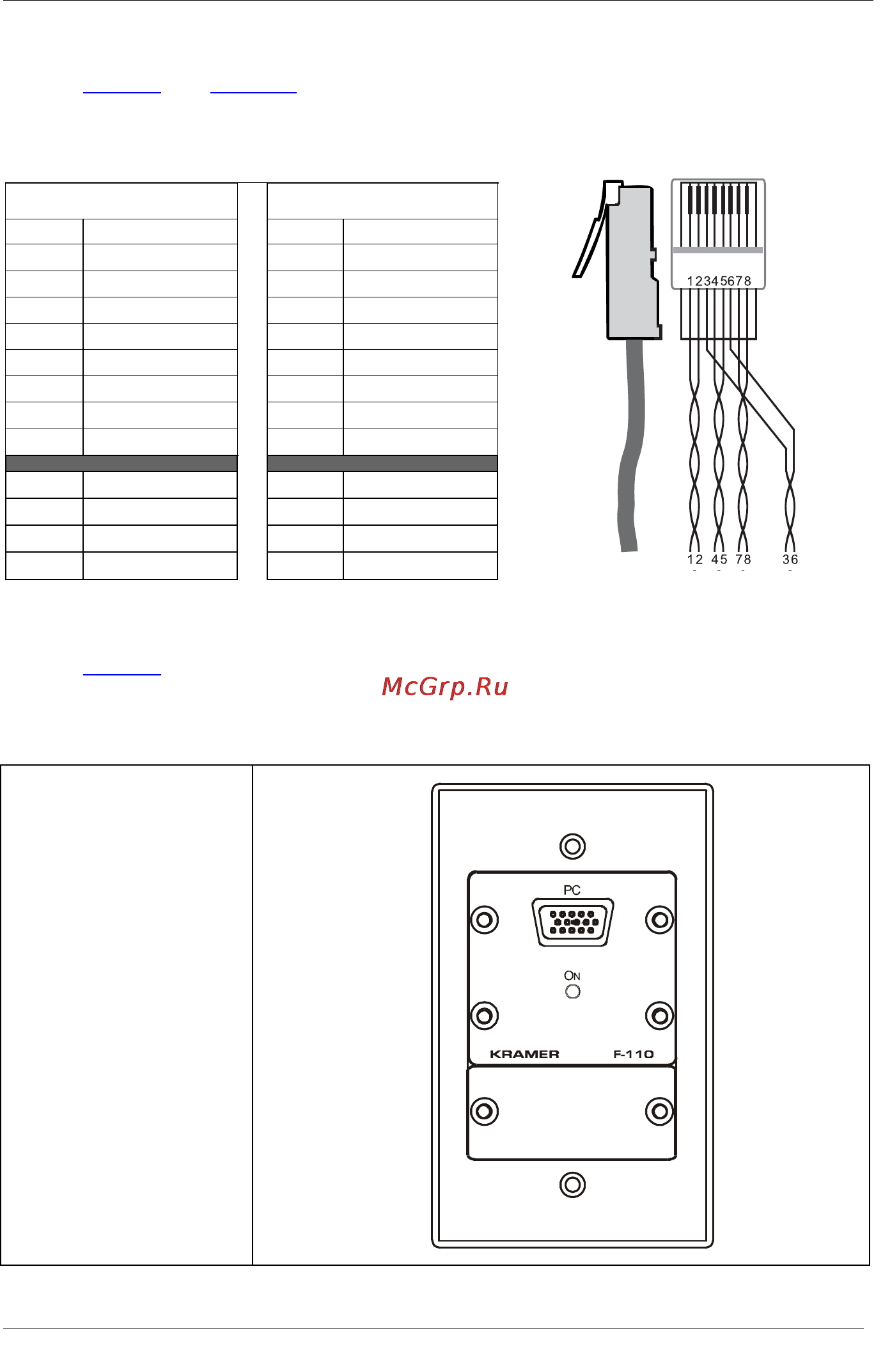

5.2 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

Table 2

and Figure 4 define the UTP CAT 5 PINOUT, on the RJ-45

connector:

Table 2: CAT 5 PINOUT

Figure 4: CAT 5 PINOUT

EIA /TIA 568A EIA /TIA 568B

PIN Wire Color PIN Wire Color

1 Green / White 1 Orange / White

2 Green 2 Orange

3 Orange / White 3 Green / White

4 Blue 4 Blue

5 Blue / White 5 Blue / White

6 Orange 6 Green

7 Brown / White 7 Brown / White

8 Brown 8 Brown

Pair 1 4 and 5 Pair 1 4 and 5

Pair 2 3 and 6 Pair 2 1 and 2

Pair 3 1 and 2 Pair 3 3 and 6

Pair 4 7 and 8 Pair 4 7 and 8

6 Using the F-110

Table 3 shows examples of how the F-110 dual-slot wall-plate insert can be

installed in various applications.

Table 3: F-110 Applications

F-110 installed in a wall plate

insert frame (for example, the

Kramer FRAME 1G/US):
