Connecting the F-110
7
5.1 Wiring the 9-pin Terminal Block Line Output Connector
The 8-pin terminal block is an easy plug-in connector for attaching the UTP
cable. Follow the colors of the color-coded sticker on these terminals for
proper connection of the UTP cable. Figure 3
defines the pinouts for the
terminal block.

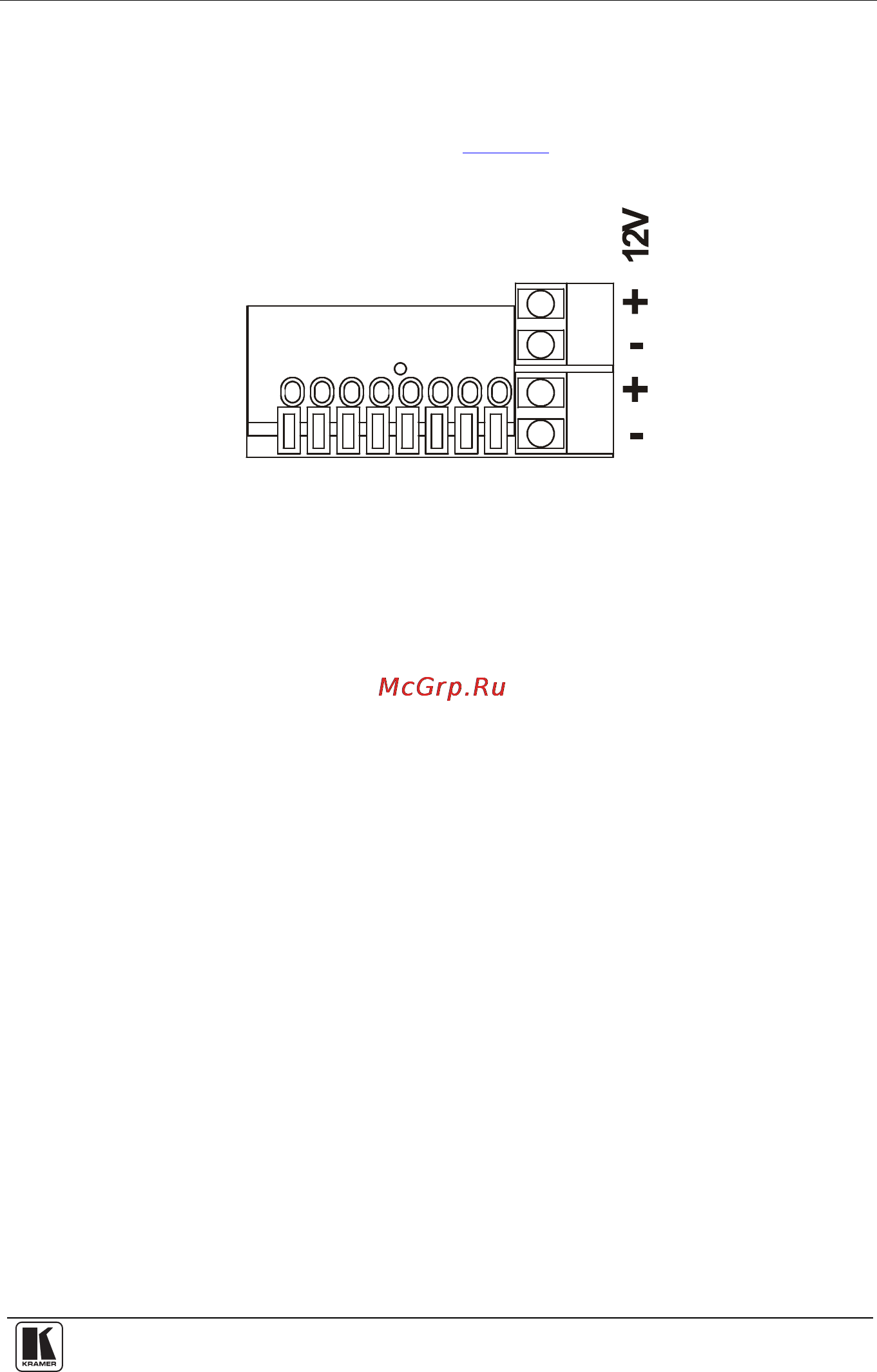

Figure 3: Terminal Block Pinouts
Notes:
• Use the connector clips only when removing wires, not when inserting
them
• Each wire should protrude 9mm (0.35") from the plastic insulation so
that it can be easily connected. To prevent the wires crossing, be sure
that each wire is fully inserted
Orange / White
Green / White
Brown / White
Brown
Green
Blue / White
Blue
Orange
