KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your F-110 XGA Line Transmitter
4
4 Your F-110 XGA Line Transmitter

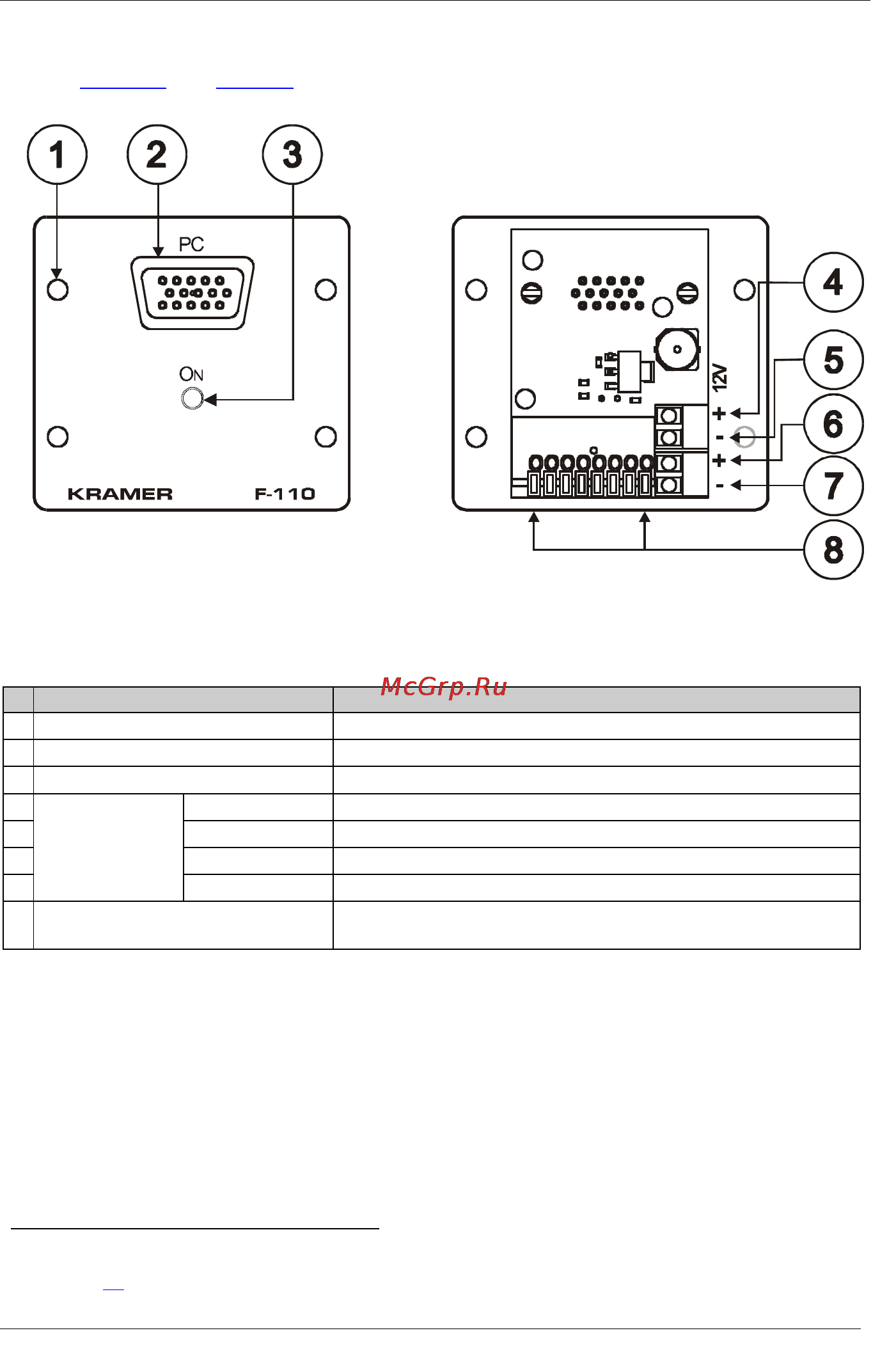

Figure 1 and Table 1 define the F-110:
Figure 1: F-110 XGA Line Transmitter
Table 1: F-110 Features
# Feature Function
1 Screw holes (4) Fix the wall plate to the connecting surface
2
PC INPUT 15-pin HD F Connector Connect to the XGA source
3 ON LED Lights green when receiving power
4 12V DC + PIN
1
Connect (+) to the connector for powering the unit
5 - PIN Connect (-) to the Ground
6 + PIN
1
Connect (+) to the connector for powering the unit
7 - PIN Connect (-) to the Ground
8 Line output 8-pin terminal block
Connector
2
Connects to the LINE IN RJ-45 connector on the Kramer PT-120
or TP-120 XGA Line Receiver
1 One set is used to power the F-110 and the other set can be used to power an adjacent insert
2 See section 5.1
