SIERRA VIDEO
12

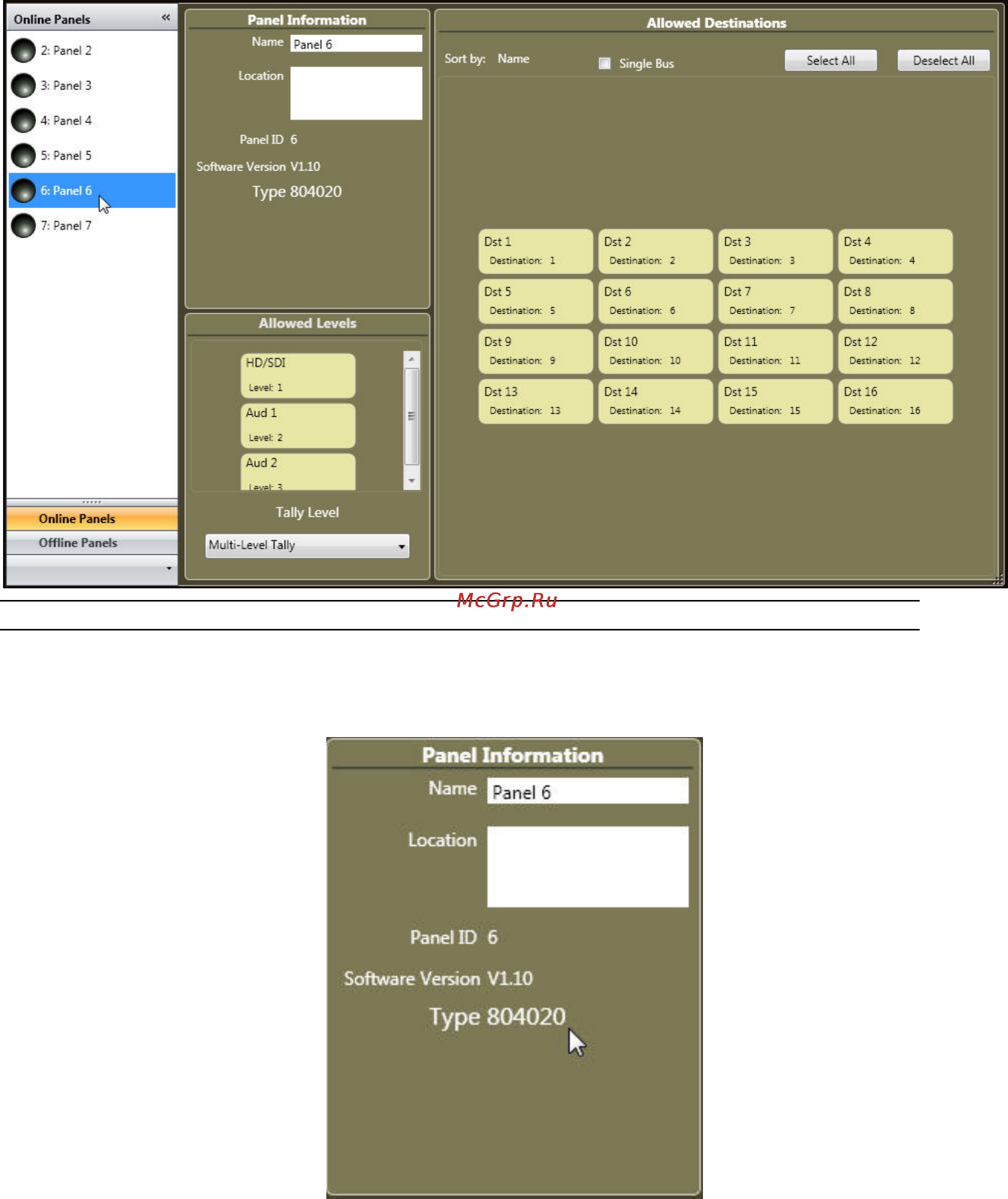

Select the Panel number (ID) of the SCP-20 panel you want to program.
Note:
The General Settings must be configured before proceeding to the Programming screen.
The “Panel Information” window will display the part number and software version of the selected
panel. The SCP-20 panel’s part number is 804020.
