SCP-20
21

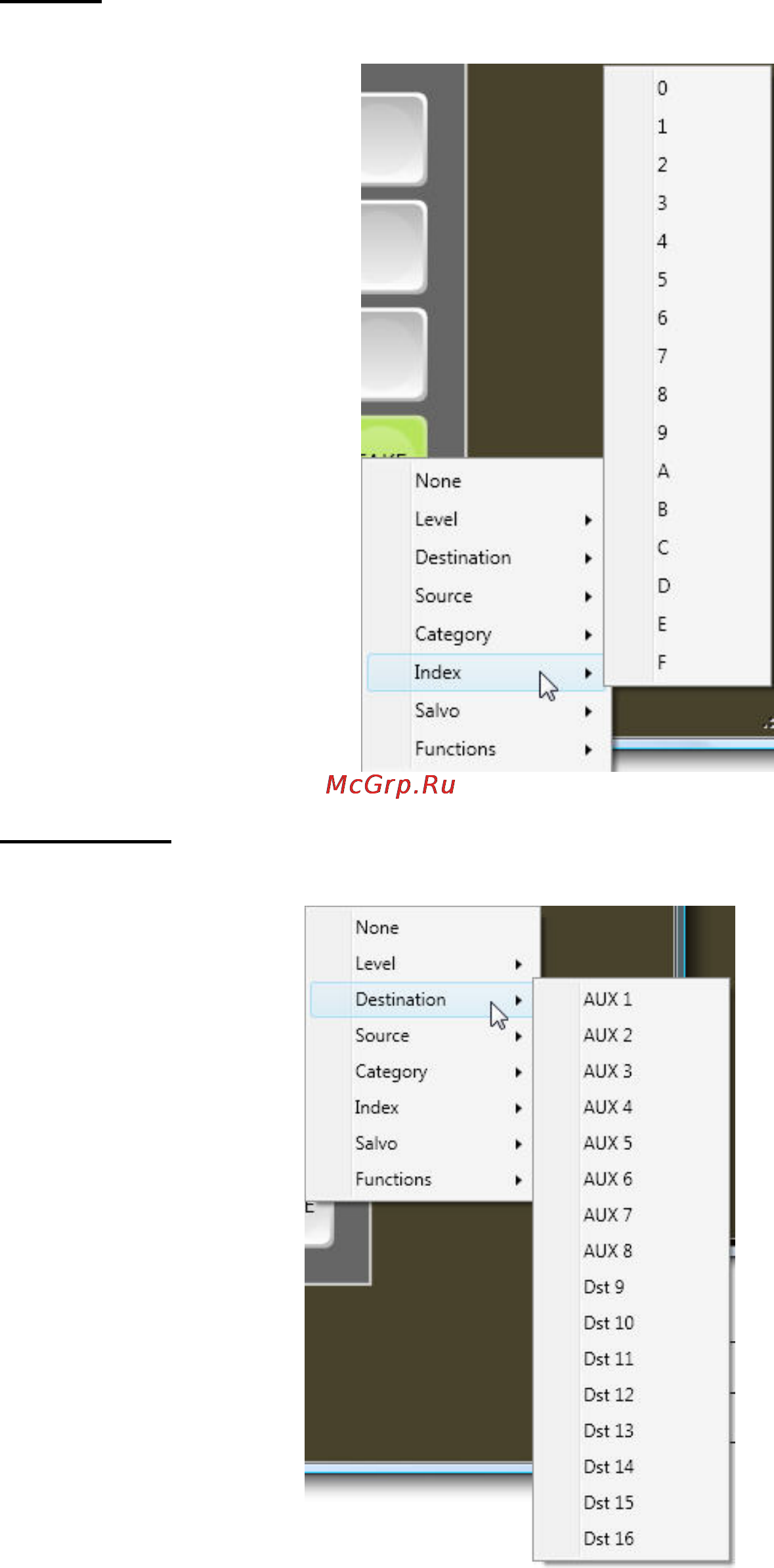

Index: This list contains the Indices as entered in the names screen in TyLinx Pro. This
programs the button to enter the index reference of a category to complete the entry.
Destination; This is a list of outputs, by name, providing a direct routing path to a selected
output.
