Kramer SCP-20 [29/38] Panel properties

SCP-20

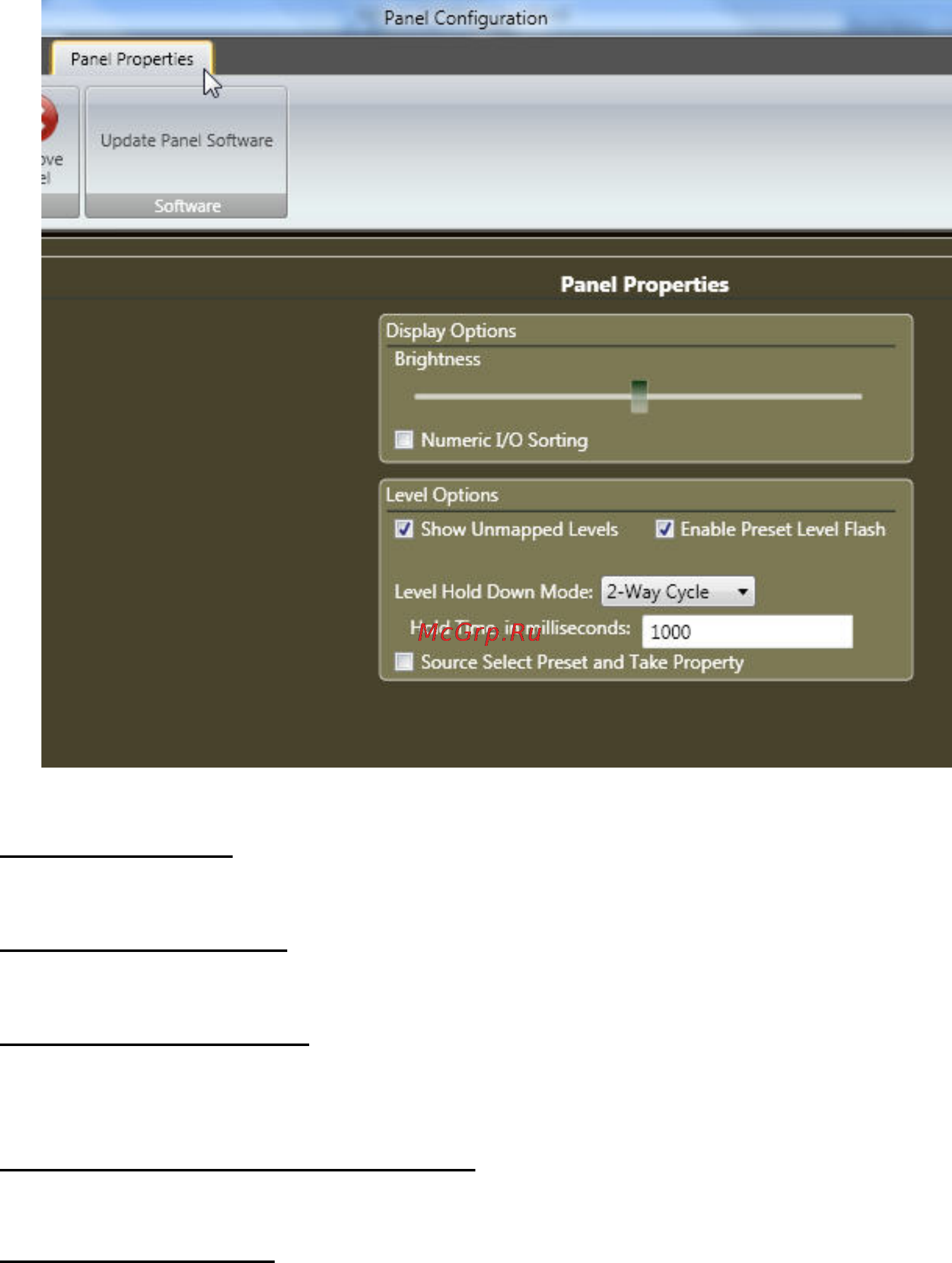

Panel Properties

Select the panel properties tab.

Numeric I/O sorting- Panel lists will display sorted by input or output number. Un-checked panel

will display lists by alpha sort.

Show UnMapped Levels- Levels that are unmapped will be displayed in status. Unchecked will

hide unmapped levels.

Enable Preset Level Flash- When checked this will cause level display to flash when preset to

switch. * If level button is programmed as a shift function, checking this box has no effect on level

button function.

Source Select Preset and Take Property- If this box is checked, router will “Take” when source

is selected. Un-checked will require a “Take” button to be pressed to initiate switch.

Level Hold Down Mode- When level buttons are held down for 3 seconds they will cycle through

a series of enabled and disabled. In the 2-Way Cycle mode, holding down the level button toggles

between all on to only the selected on. 3-Way Cycle Mode, holding down the level button toggles

between selected on, all on, and selected off others on.
