SIERRA VIDEO
20

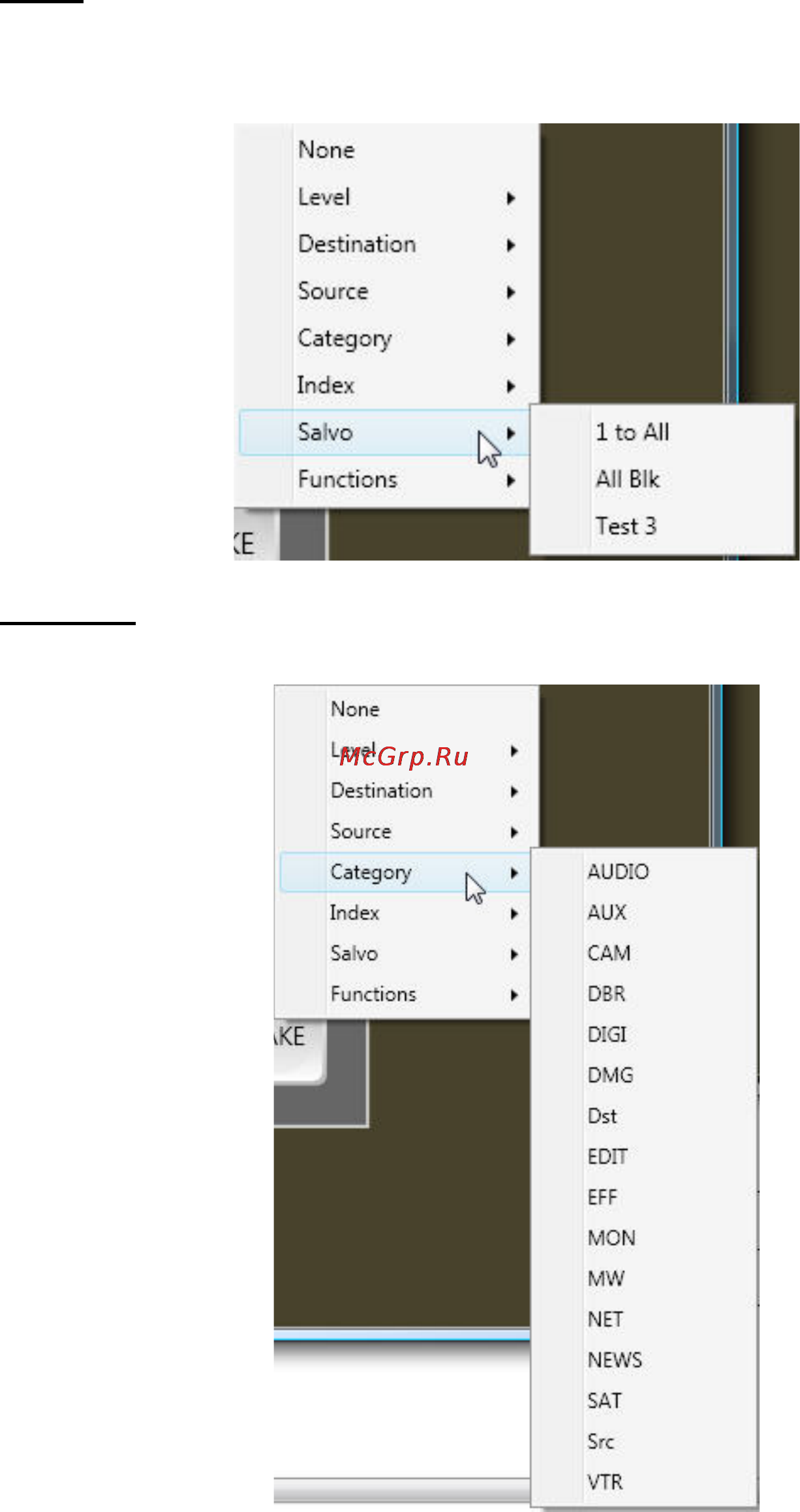

Salvo; This window is the list of Salvos. Selecting a Salvo from this list and applying it to a
button gives you a direct link to the Salvo selected.
*A “Salvo Menu” function can be found in the Functions window. This will display the list of
Salvos in the LCD of the panel for selection.
Category; This list contains the categories as entered in the names screen in TyLinx Pro. This
programs the button to enter the category name awaiting an index number to complete the entry.
