SCP-20

Salvo Menu- The “Salvo Menu” function will display the list of Salvos in the LCD of the

panel for selection.

Scroll Back- Causes lists to display from higher number to lower.

Scroll Forward- Causes lists to display from lower number to higher.

Select- Moves cursor.

Select/Shift- “Select/Shift” is a dual mode function. Pressing once is the “Select” function

(moves cursor). Holding down the button is the “Shift” function similar to a standard

computer keyboard.

Select All Levels- Enables all levels Note; all levels are enabled as a default. This

function restores all levels to enable if the previous switch was other than all levels.

Take- Initiates command

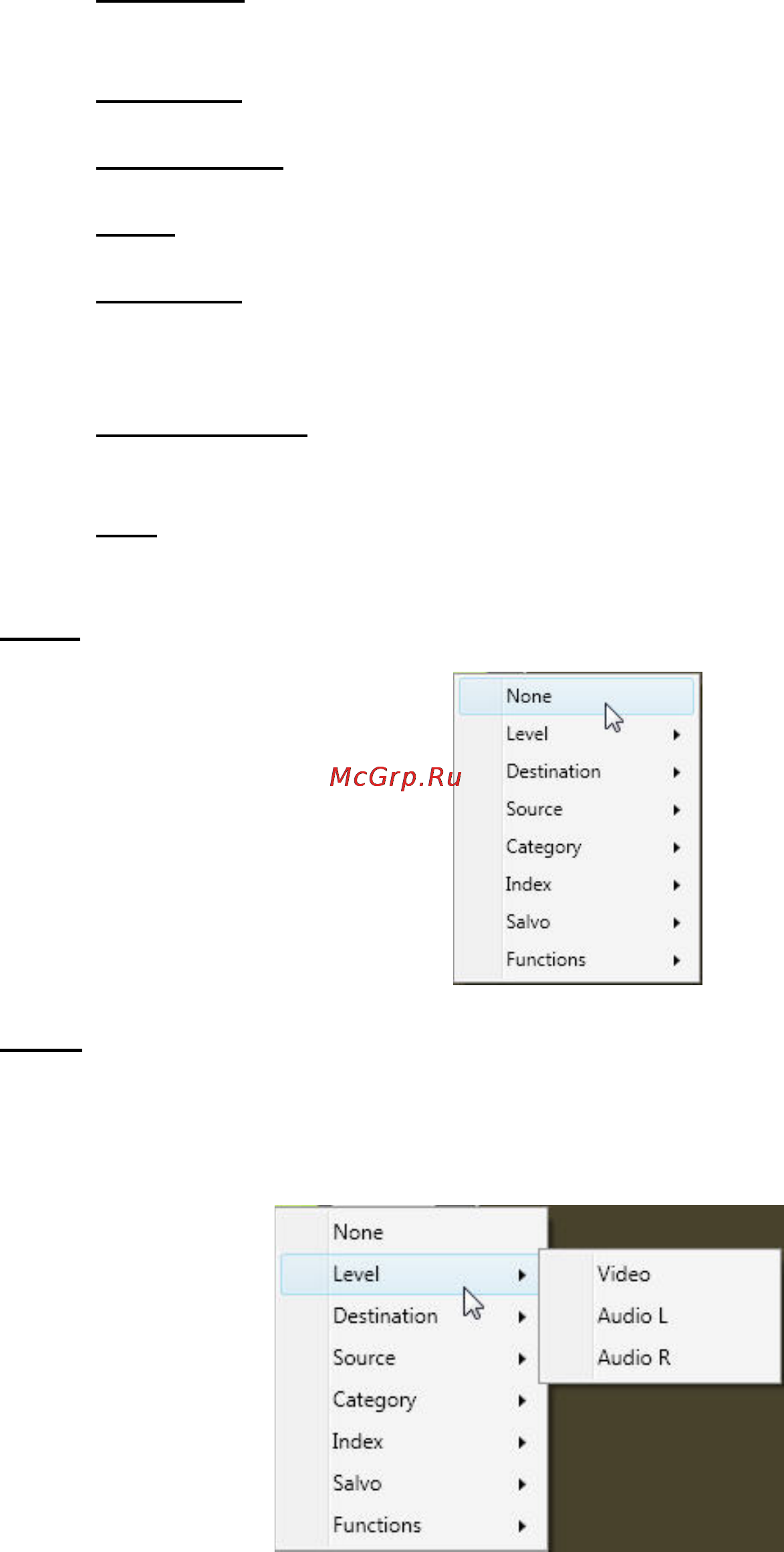

None- This removes any programming from the button.

Level; This list contains the levels of control active on the router. When this function is applied

to a panel button the LED for that button will light allowing individual level selection. After a

destination is selected all level buttons will light. Pressing a level button will unselect the level

indicated by extinguishing the light. Holding down the button will cause the panel to cycle from

enabling only the level selected to all levels enabled.
