SIERRA VIDEO
16
Programming Panel Buttons

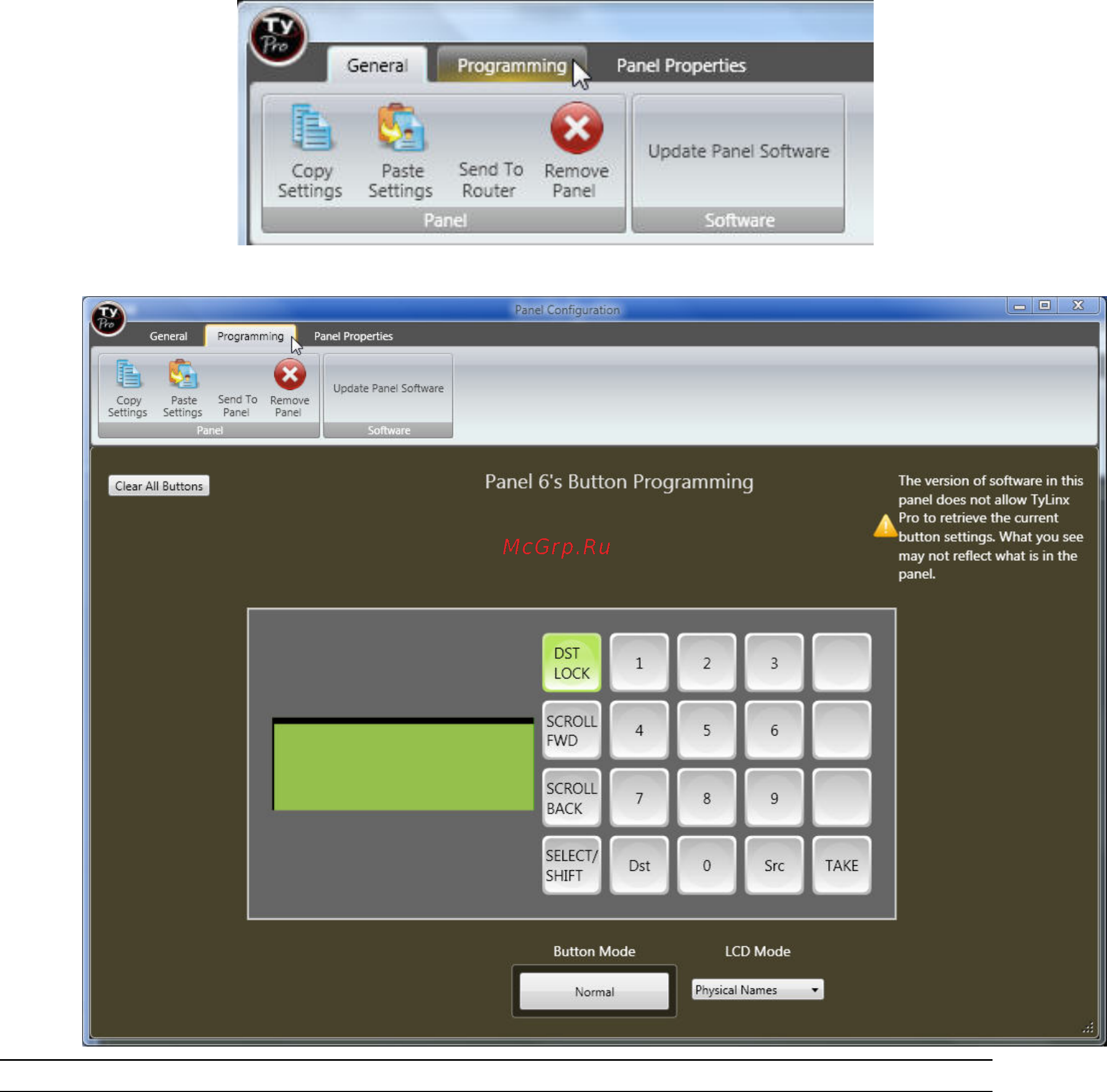

Click on the “Programming” tab at the top of the window.
This will take you to the button programming window.
Note:
If your panel does not have software that does not allow TyLinx Pro to read the current
programming of the buttons, this screen will reflect the factory default programming.
