SCP-20
15

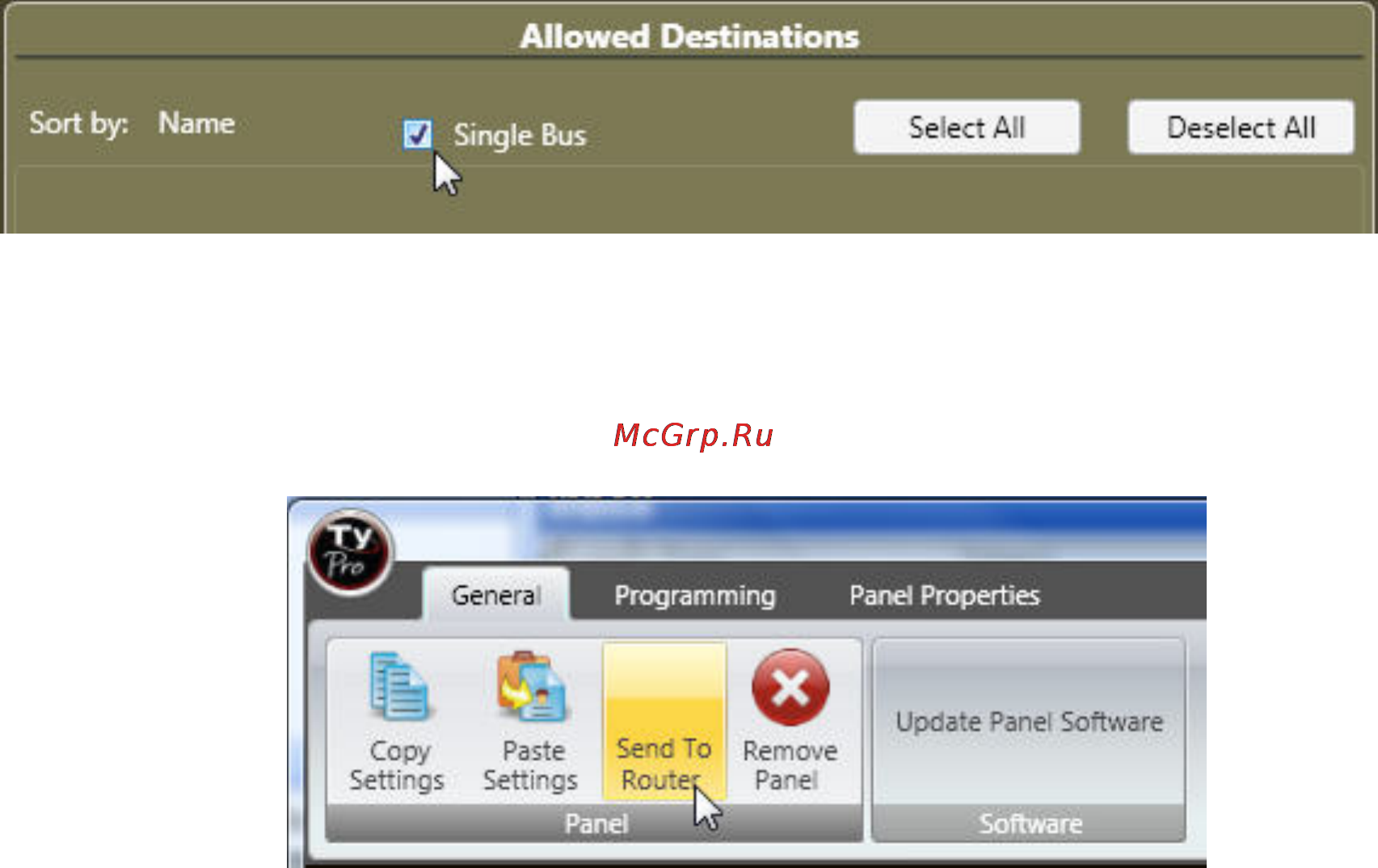

If the panel is to be a “Single Bus” (only controls 1 output), place a check in the “Single Bus” box.
Placing a check in the “Single Bus” box will cause the panel to only access and switch the single
selected output.
If there is no check in the box and only one output is selected for the panel to control, the panel
can status the blocked outputs but only switch the selected output.
When selection of allowed outputs and levels is complete, click on “Send to Router”.
