SIERRA VIDEO
22

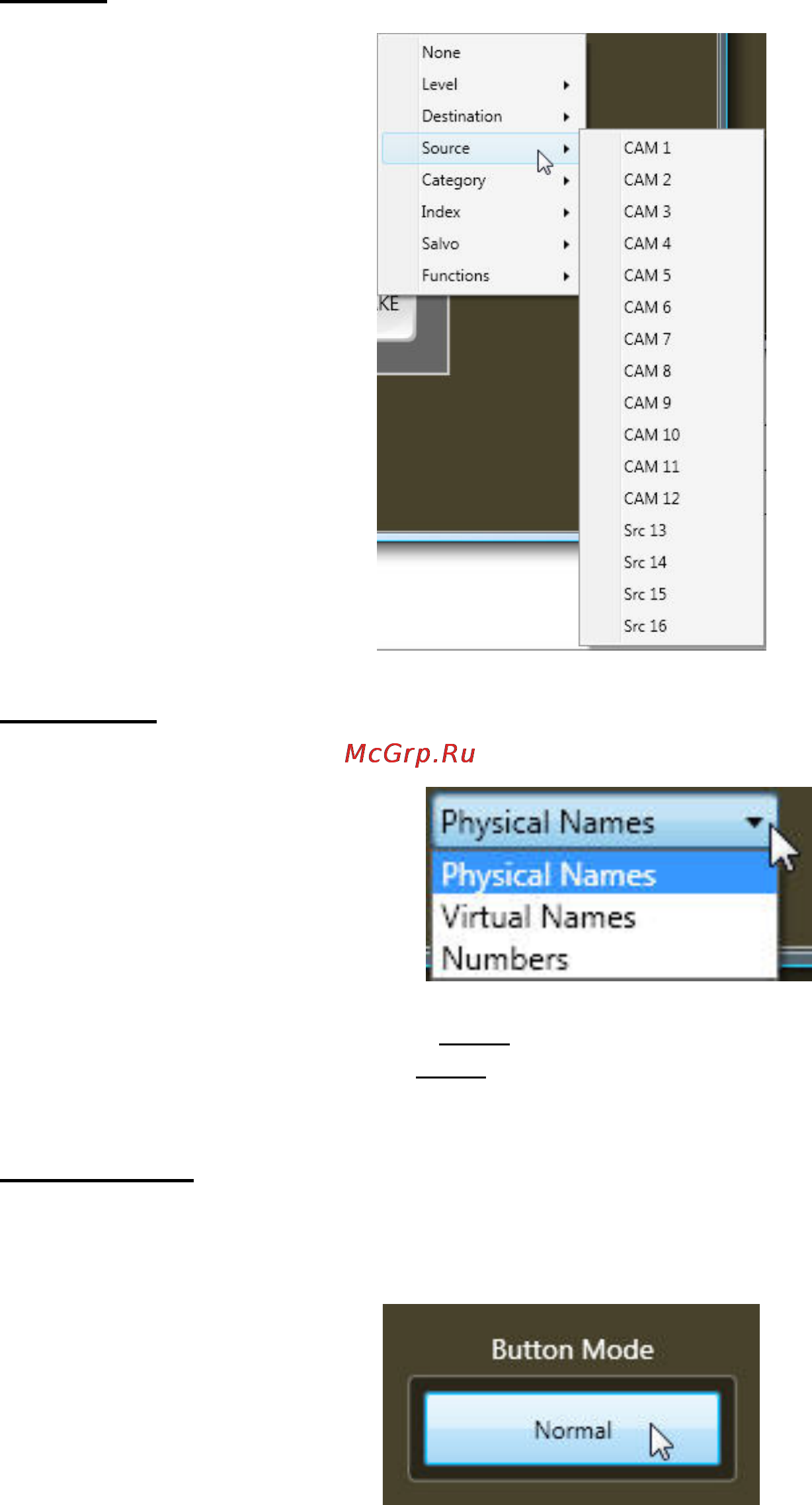

Source; This is a list providing a direct routing path to a selected input.
LCD Mode; Selecting the different setups will adjust the display of the in the “Source Status”
window on the panel. Some models, depending on LCD size, do not support all setups.
Physical Names displays the actual source names by level.
Virtual Names displays the virtual source name in all levels.
Numbers displays the physical I/O numbers (numeric only).
Button Mode; Clicking on the “Button Mode” button mode button toggles between “normal”
and “shift”. Selecting “shift” allows you to program buttons on a “shift” row. The “shift” row acts
similar to a PC keyboard. If a button is programmed is programmed as “Select/Shift”, holding
down that button accesses anything programmed in the “shift” row.
