SIERRA VIDEO
14

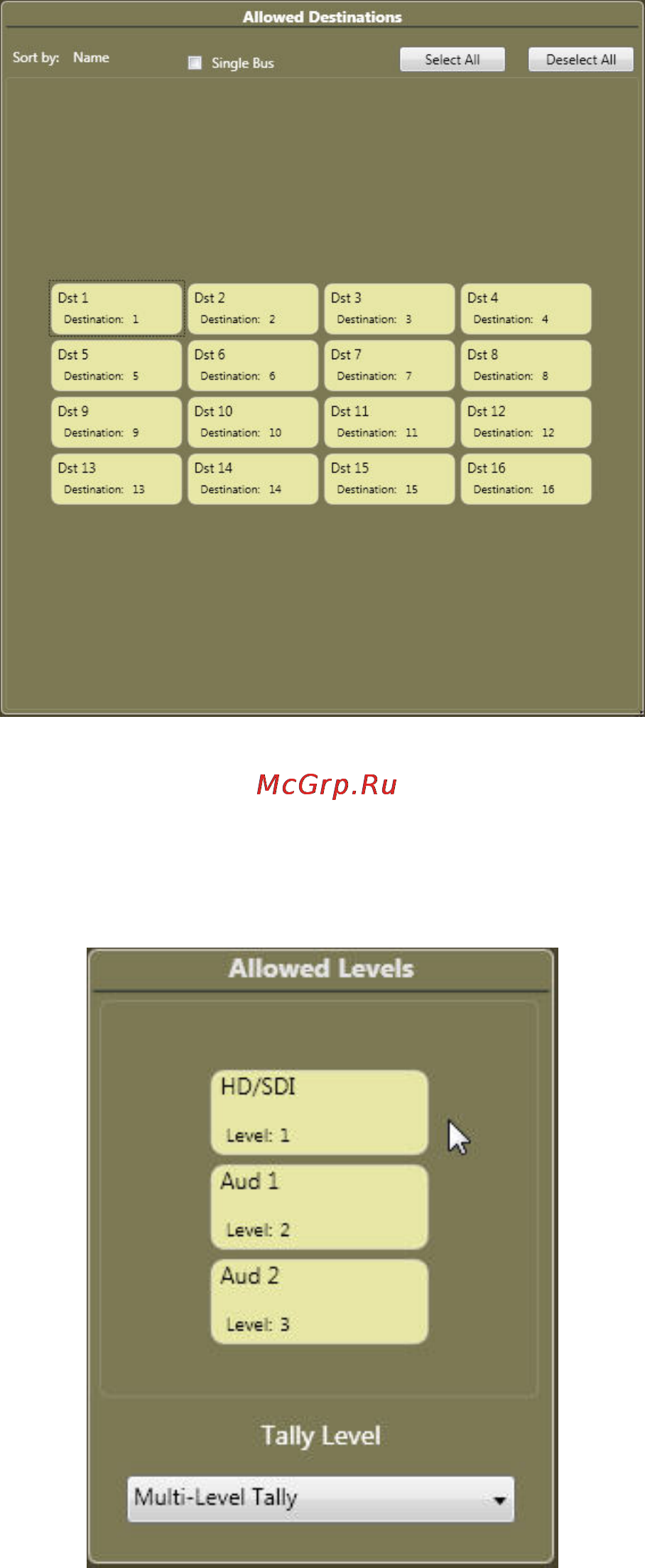

All control panels can have outputs blocked, this allows the control panel to status an output, but
prevents the panel from selecting inputs on that output.
Select the outputs you want this panel to control.
Panels can also have levels blocked. “Enable/Disable” the levels you want this panel to control by
clicking on the level boxes in the lower part of the screen.
The “LED Tally Level” section does not apply to the SCP-20 control panel.
