SCP-20
25

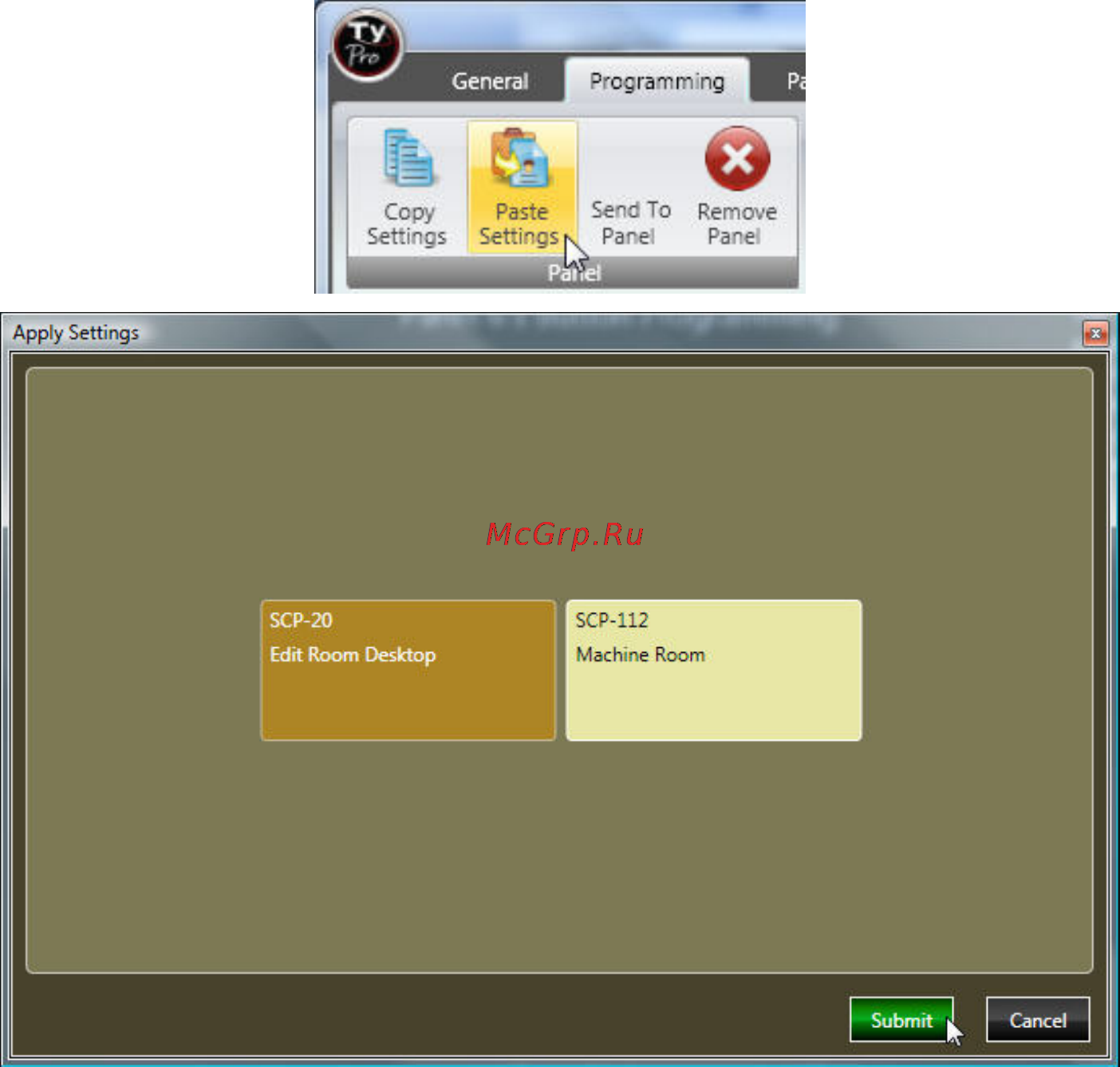

To recall saved settings, click on “Paste Settings” and select the settings you want to apply and
click on “Submit”..
