Asus z170-p d3 [30/85] Z170 p d3 fan connectors
![Asus z170-p d3 [30/85] Z170 p d3 fan connectors](/views2/1162357/page30/bg1e.png)
1-20
Chapter 1: Product introduction
Donotforgettoconnectthefancablestothefanconnectors.Insufcientairowinside
thesystemmaydamagethemotherboardcomponents.Thesearenotjumpers!Donot
placejumpercapsonthefanconnectors!TheCPU_FANconnectorsupportsaCPUfanof
maximum1A(12W)fanpower.
Onlythe4-pinCPUfansupportstheASUSFanXpert2+feature.

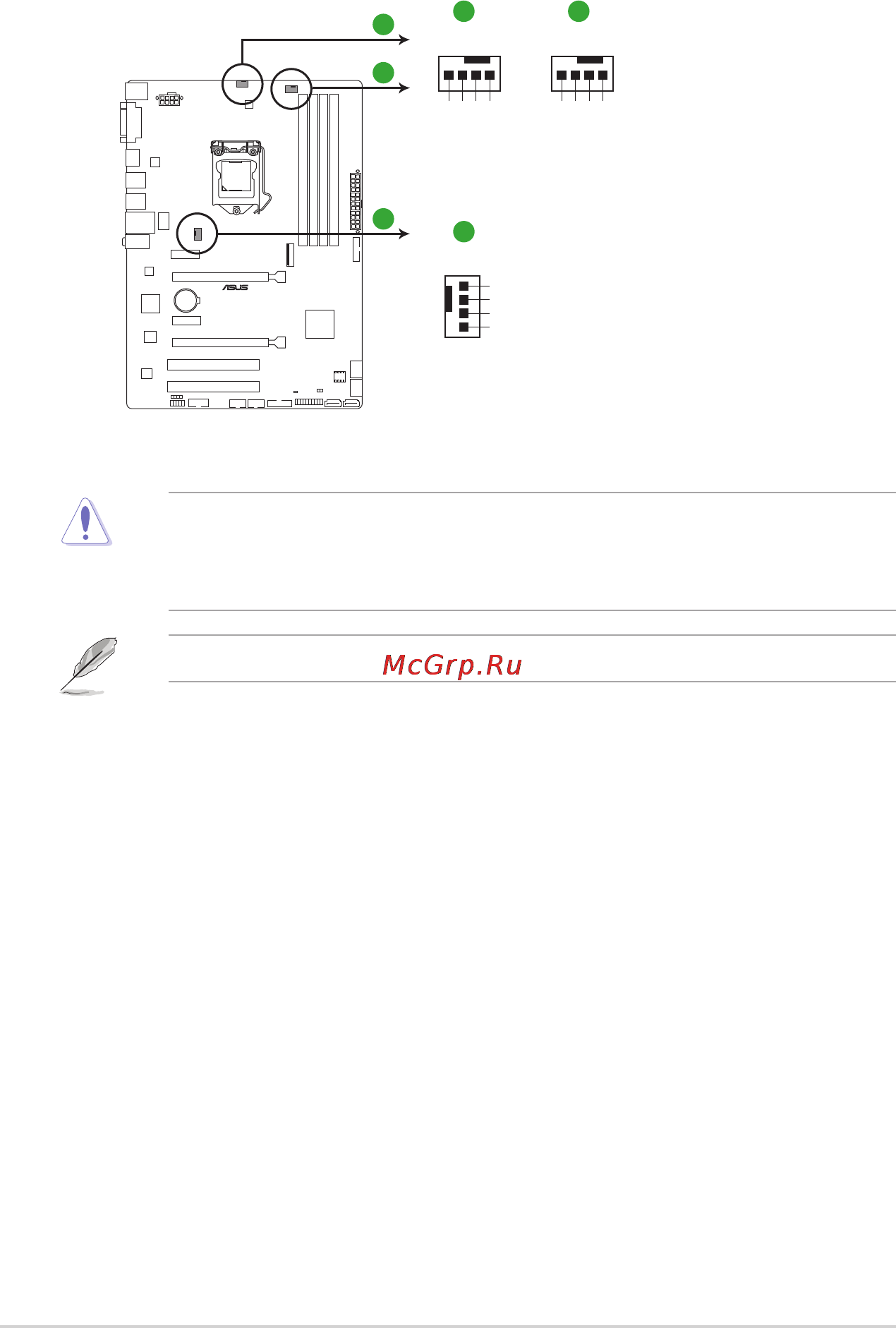

8. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN 1/2)
Connectthefancablestothefanconnectorsonthemotherboard,ensuringthatthe
black wire of each cable matches the ground pin of the connector
A
CHA_FAN1
+5V
CHA FAN IN
CHA FAN PWR
GND
A
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
B
CHA_FAN2
GND
CHA FAN PWR
CHA FAN IN
+5V
C
B
C
Z170-P D3
Z170-P D3 Fan connectors
