Chassis Fan 1/2 Min. Duty Cycle(%) [60]
Usethe<+>or<->keystoadjusttheminimumchassisfandutycycle.Thevalues
rangefrom60%to100%.WhentheCPUtemperatureisunderthelowerlimit,the
chassisfanoperatesattheminimumdutycycle.
Allow Fan Stop [Disabled]
Thisfunctionallowsthefantorunat0%dutycyclewhenthetemperatureofthesource
isdroppedbelowthelowertemperature.
2.7.6 Anti Surge Support [On]
ThisitemallowsyoutoenableordisabletheAntiSurgefunction.Congurationoptions:[On]
[Off]

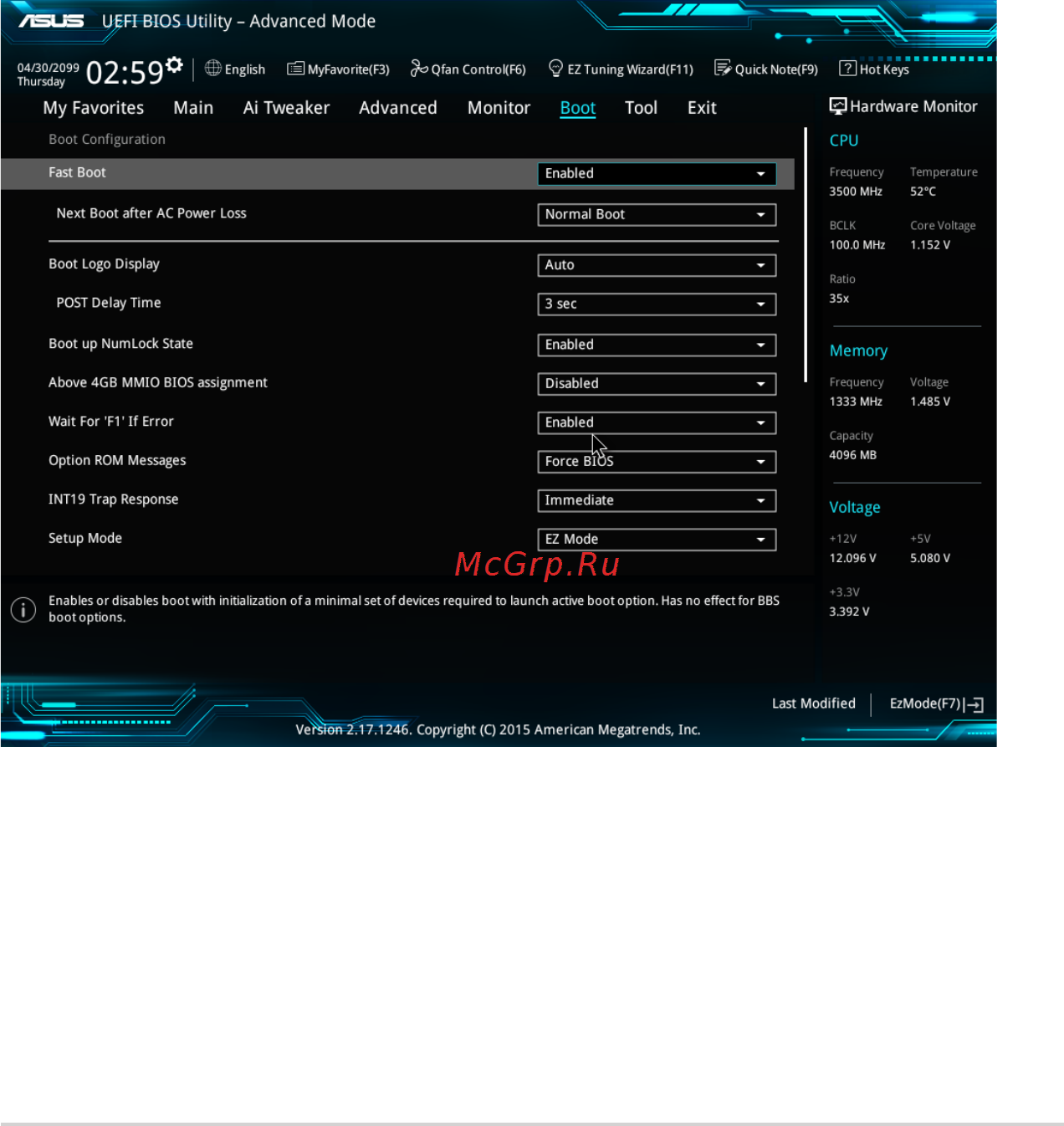

2.8 Boot menu
TheBootmenuitemsallowyoutochangethesystembootoptions.
ScrolldowntodisplaytheotherBIOSitems.
2.8.1 Fast Boot [Enabled]
[Enabled] Selecttoacceleratethebootspeed.
[Disabled] Selecttogobacktonormalbootspeed.
Next Boot after AC Power Loss [Normal Boot]
[NormalBoot] ReturnstonormalbootonthenextbootafterACpowerloss.
[FastBoot] AcceleratesthebootspeedonthenextbootafterACpowerloss.
ASUS Z170-P D3 2-39
