EZ Update

EZ Update is a utility that allows you to automatically update your motherboard’s software,

drivers, or BIOS.

With this utility, you can also manually update the BIOS and select the boot logo that will

display during POST.

Launching EZ Update

To launch EZ Update, click on the left of the AI Suite 3 main menu, then click EZ Update

on the AI Suite 3 main menu bar.

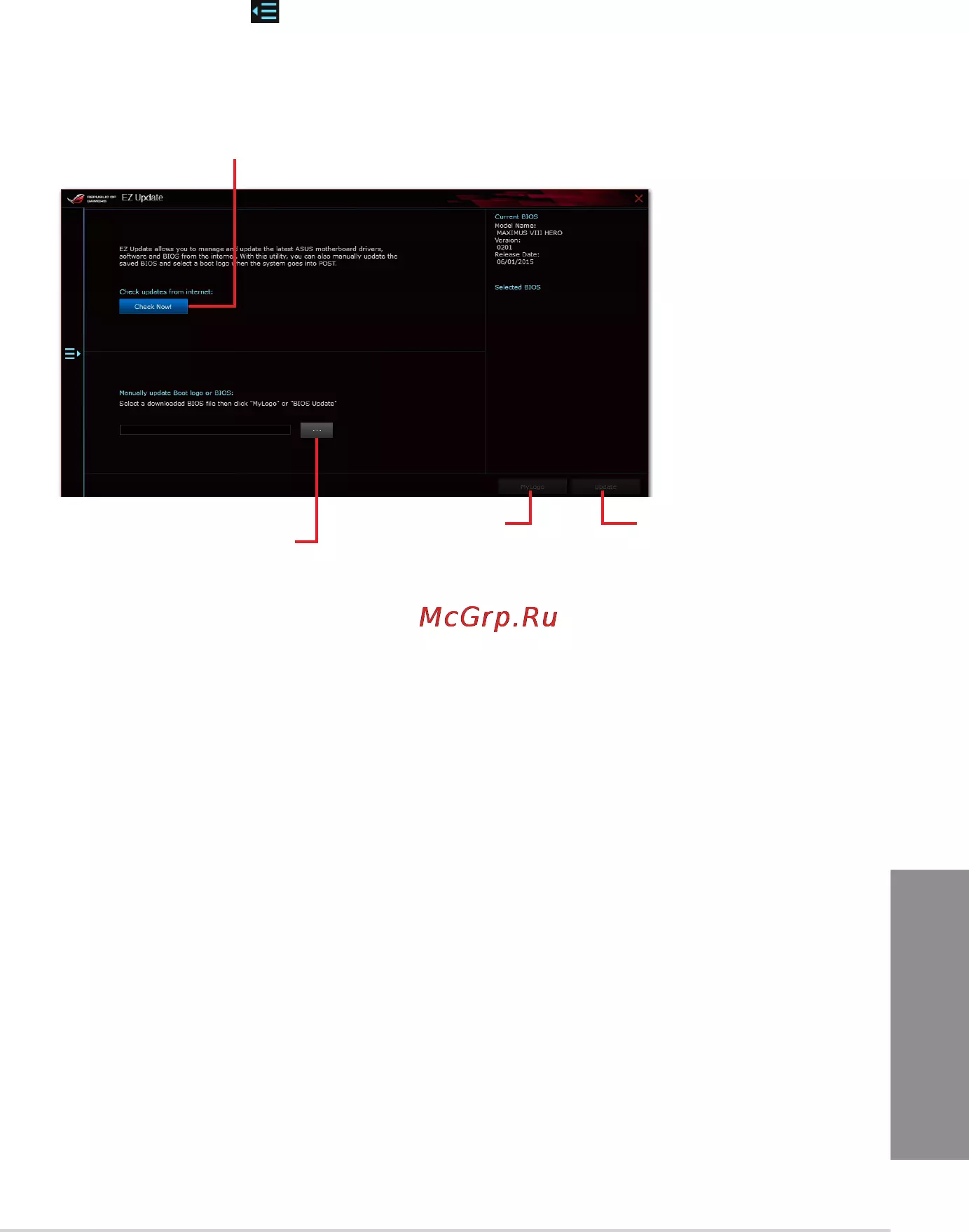

EZ Update screen

Click to automatically update your

motherboard’s driver, software and rmware

Click to search and

select the BIOS le

Click to select a

boot logo

Click to update

the BIOS

Содержание

Motherboard p.1
E10809 first edition september 2015 p.2
Chapter 1 product introduction p.3
Chapter 2 basic installation p.3
Contents p.3
Chapter 3 bios setup p.4
Chapter 5 raid support p.5
Chapter 4 software support p.5
Appendices p.5
Safety information p.6
Operation safety p.6
Electrical safety p.6
Where to find more information p.7
How this guide is organized p.7
About this guide p.7
Typography p.8
Conventions used in this guide p.8
Maximus viii impact specifications summary p.9
Integrated graphics processor inte p.9
Hd graphics support p.9
Z170 express chipset with raid 0 1 5 10 and intel rapid storage technology 14 support p.9
Z170 express chipset supports asus usb 3 boost p.10
Usb 3 controller p.10
Rog supremefx impact iii high definition audio codec p.10
Maximus viii impact specifications summary p.10
Audio feature p.10
Maximus viii impact specifications summary p.11
Maximus viii impact specifications summary p.12
Package contents p.13
The tools and components in the table above are not included in the motherboard package p.14
Installation tools and components p.14
Special features p.15
Product introduction p.15
Product highlights p.15
Chapter 1 product introduction p.15
Chapter 1 p.15
Supremefx impact iii p.16
Sonic studio ii p.16
Sonic senseamp p.16
Sonic radar ii p.16
Rog gaming features p.16
Gamefirst technology p.16
Ethernet p.16
Chapter 1 p.16
Rog exclusive features p.17
Probeit p.17
Languard p.17
Keybotii p.17
Impact power iii p.17
Chapter 1 p.17
Anti virus p.18
Ai suite 3 p.18
Usbbiosflashback p.18
Usb3 boost p.18
Rog rich bundled software p.18
Ramdisk p.18
Ramcache p.18
Kaspersk p.18
Chapter 1 p.18
Asus special features p.18
Rogcpu z p.19
Overwolf p.19
Memtweakit p.19
Dtsconnect p.19
Daemontoolsprostandard p.19
Chapter 1 p.19
Beforeyouproceed p.20
Before you proceed p.20
Take note of the following precautions before you install motherboard components or change any motherboard settings p.20
Motherboardoverview p.20
Motherboard overview p.20
Chapter 1 product introduction p.20
Chapter 1 p.20
Motherboardlayout p.21
Motherboard layout p.21
Chapter 1 p.21
Asus maximus viii impact p.21
Layout contents p.22
Chapter 1 p.22
This motherboard supports the new 6th gen inte p.23
Core processors on the lga1151 package with memory and pci express controllers integrated to support dual channel 2 dimm ddr4 memory and 16 pci express 3 2 lanes p.23
Chapter 1 p.23
Central processing unit cpu p.23
Asus maximus viii impact p.23
The motherboard comes with two double data rate 4 ddr4 dual inline memory modules dimm slots p.24
System memory p.24
Recommendedmemoryconfigurations p.24
Chapter 1 product introduction p.24
Chapter 1 p.24
You may install 1gb 2gb 4gb 8gb and 16gb unbuffered and non ecc ddr4 dimms into the dimm sockets p.25
Memoryconfigurations p.25
Chapter 1 p.25
Asus maximus viii impact p.25
Maximusviiiimpactmotherboardqualifiedvendorslist qvl p.26
Ddr44000mhzcapability p.26
Ddr43866mhzcapability p.26
Ddr43800mhzcapability p.26
Ddr43733mhzcapability p.26
Chapter 1 product introduction p.26
Chapter 1 p.26
Ddr43600mhzcapability p.27
Ddr43500mhzcapability p.27
Chapter 1 p.27
Asus maximus viii impact p.27
Ddr43466mhzcapacity p.28
Ddr43400mhzcapacity p.28
Chapter 1 product introduction p.28
Chapter 1 p.28
Ddr43333mhzcapacity p.29
Ddr43300mhzcapacity p.29
Chapter 1 p.29
Asus maximus viii impact p.29
Ddr43200mhzcapacity p.30
Chapter 1 product introduction p.30
Chapter 1 p.30
Asus maximus viii impact p.31
Ddr43000mhzcapacity p.31
Chapter 1 p.31
Ddr42800mhzcapacity p.32
Chapter 1 product introduction p.32
Chapter 1 p.32
Ddr42666mhzcapacity p.33
Continued on the next page p.33
Chapter 1 p.33
Asus maximus viii impact p.33
Ddr42666mhzcapacity p.34
Chapter 1 product introduction p.34
Chapter 1 p.34
Ddr42400mhzcapacity p.35
Chapter 1 p.35
Asus maximus viii impact p.35
Chapter 1 p.36
Ddr42133mhzcapacity p.36
Continued on the next page p.36
Chapter 1 product introduction p.36
When running xmp at ddr4 3200 mhz or higher the system s stability depends on the cpu s capabilities p.37
Visit the asus website for the latest qvl p.37
Supports two 2 modules inserted into the red slots as one pair of dual channel p.37
Supports one 1 module inserted into any slot as single channel memory p.37
Side s ss single sided ds double sided dimms p.37
Memory configuration p.37
Hyper dimm support is subject to the physical characteristics of individual cpus load the x m p settings in the bios for the hyper dimm support p.37
Dimm socket support p.37
Ddr42133mhzcapacity p.37
Configuration we suggest that you install the module into a1 slot p.37
Chapter 1 p.37
Asus maximus viii impact p.37
Asus exclusively provides hyper dimm support function p.37
Expansion slot p.38
Chapter 1 p.38
Irqassignmentsforthismotherboard p.39
Chapter 1 p.39
Onboard buttons p.40
Chapter 1 p.40
Onboardleds p.41
Onboard leds p.41
Chapter 1 p.41
Chapter 1 p.42
Chapter 1 p.43
Chapter 1 p.44
Chapter 1 p.45
Chapter 1 p.46
Chapter 1 p.47
Chapter 1 p.48
Z170serialata6gb sconnectors 7 pinsata6g_1 4gray p.48
Z170 chipset p.48
These connectors connect to serial ata 6 gb s hard disk drives via serial ata 6 gb s signal cables p.48
Rapid storage technology through the onboard inte p.48
Internal connectors p.48
If you installed serial ata hard disk drives you can create a raid 0 1 5 and 10 configuration with the inte p.48
Chapter 1 product introduction p.48
Usb3 connector 20 1pinusb3_12 p.49
This connector is for the thermistor cable that allows you to monitor the temperature of your motherboard s critical components and connected devices p.49
This connector allows you to connect a usb 3 module for additional usb 3 front or rear panel ports with an installed usb 3 module you can enjoy all the benefits of usb 3 including faster data transfer speeds of up to 5 gb s faster charging time for usb chargeable devices optimized power efficiency and backward compatibility with usb 2 p.49
T_sensorconnector 2 pint_sensor p.49
Chapter 1 p.49
Asus maximus viii impact p.49
Connect the fan cables to the fan connectors on the motherboard ensuring that the black wire of each cable matches the ground pin of the connector p.50
Chapter 1 product introduction p.50
Chapter 1 p.50
Cpu chassisandextensionfanconnectors 4 pincpu_fan 4 pincha_fan ext_fanheader p.50
These connectors are for atx power supply plugs the power supply plugs are designed to fit these connectors in only one orientation find the proper orientation and push down firmly until the connectors completely fit p.51
Chapter 1 p.51
Atxpowerconnectors 24 pineatxpwr 8 pineatx12v p.51
Asus maximus viii impact p.51
Chapter 1 p.52
Chapter 1 p.53
Chapter 1 p.54
Using probeit p.55
Probeit p.55
Chapter 1 p.55
The bundled supremefx impact iii audio card integrates all the audio functions of your motherboard it consists of three 3 audio ports to connect your audio devices and a front panel audio connector aafp for the front panel audio solution p.56
Supremefx impact iii audio card p.56
Frontpanelaudioconnector 10 1pinaafp p.56
Chapter 1 product introduction p.56
Chapter 1 p.56
This connector is for a chassis mounted front panel audio i o module that supports hd audio standard connect one end of the front panel audio i o module cable to this connector p.56
Chapter 1 p.57
Chapter 1 product introduction p.58
Chapter 1 p.58
Motherboard installation p.59
Chapter 2 basic installation p.59
Chapter 2 p.59
Building your pc system p.59
Basic installation p.59
Chapter 2 p.60
Chapter 2 p.61
Asus maximus viii impact p.61
Cpu installation p.62
Chapter 2 basic installation p.62
Chapter 2 p.62
Asus maximus viii impact p.63
Chapter 2 p.63
Supremefx impact iii audio card installation p.64
Chapter 2 basic installation p.64
Chapter 2 p.64
Dimm installation p.65
Chapter 2 p.65
To install the cpu heatsink and fan assembly p.66
Cpu heatsink and fan assembly installation p.66
Chapter 2 basic installation p.66
Chapter 2 p.66
Chapter 2 p.67
To uninstall the cpu heatsink and fan assembly p.68
Chapter 2 basic installation p.68
Chapter 2 p.68
Chapter 2 p.69
Atx power connection p.69
Sata device connection p.70
Chapter 2 p.70
Front i o connector p.71
Chapter 2 p.71
Expansion card installation p.72
Chapter 2 p.72
To install the wi fi antenna connector p.73
Installing the wi fi antenna connector p.73
Chapter 2 p.73
Usb bios flashback p.74
Chapter 2 p.74
Bios update utility p.74
Rear i o connection p.75
Motherboard rear and audio connections p.75
Chapter 2 p.75
Audio 2 4 or 5 channel configuration p.76
Lan ports led indications p.76
Chapter 2 p.76
Chapter 2 p.77
Audio i o connections p.77
Chapter 2 p.78
Turning off the computer p.79
Starting up for the first time p.79
Chapter 2 p.79
Chapter 2 basic installation p.80
Chapter 2 p.80
Chapter 3 p.81
Knowing bios p.81
Chapter 3 bios setup p.81
Bios setup p.81
Bios setup program p.82
Bios menu screen p.82
Entering bios setup after post p.82
Entering bios at startup p.82
Chapter 3 p.82
The default screen for entering the bios setup program can be changed refer to the setup mode item in section boot menu for details p.83
The boot device options vary depending on the devices you installed to the system p.83
Hotkey for the advanced bios settings p.83
Ez mode p.83
Chapter 3 p.83
Asus maximus viii impact p.83
The advanced mode provides advanced options for experienced end users to configure the bios settings the figure below shows an example of the advanced mode refer to the following sections for the detailed configurations p.84
Hotkey p.84
Chapter 3 bios setup p.84
Chapter 3 p.84
Advanced mode p.84
Ez tuning wizard f11 p.85
Chapter 3 p.85
Submenu items p.85
Qfan control f6 p.85
Myfavorite f3 p.85
Menu items p.85
Menu bar p.85
Language p.85
Scroll bar p.86
Quick note f9 p.86
Last modified button p.86
Hot keys p.86
General help p.86
Configuration fields p.86
Chapter 3 p.86
My favorites p.87
Chapter 3 p.87
Adding items to my favorites p.87
Main menu p.88
Chapter 3 p.88
The security menu items allow you to change the system security settings p.89
Security p.89
Chapter 3 p.89
Asus maximus viii impact p.89
User password p.90
Chapter 3 p.90
Administrator password p.90
Overclocking presets p.91
Extreme tweaker menu p.91
Chapter 3 p.91
Ai overclock tuner auto p.91
Cpu core ratio sync all cores p.92
Chapter 3 p.92
Asus multicore enhancement auto p.92
Xtreme tweaking disabled p.93
Tpu keep current settings p.93
Epu power saving mode disabled p.93
Dram timing control p.93
Dram odd ratio mode enabled p.93
Dram frequency auto p.93
Cpu svid support auto p.93
Chapter 3 p.93
Bclk frequency dram frequency ratio auto p.93
External digi power control p.94
Chapter 3 p.94
Chapter 3 p.95
Chapter 3 p.96
Chapter 3 p.97
Internal cpu power management p.98
Chapter 3 p.98
Tweaker s paradise p.98
Cpu core cache current limit max auto p.99
Chapter 3 p.99
Min cpu cache ratio auto p.100
Max cpu graphics ratio auto p.100
Max cpu cache ratio auto p.100
Cpu graphics current limit max auto p.100
Chapter 3 p.100
Dram voltage auto p.101
Cpu vccio voltage auto p.101
Cpu system agent voltage auto p.101
Cpu core cache voltage auto p.101
Chapter 3 p.101
Cpu standby voltage auto p.102
Cpu graphics voltage mode auto p.102
Chapter 3 p.102
Pll termination voltage auto p.102
Pch core voltage auto p.102
Dram ref voltage control p.102
Chapter 3 p.103
Advanced menu p.103
Intel virtualization technology disabled p.104
Hardware prefetcher enabled p.104
Cpu configuration p.104
Chapter 3 p.104
Boot performance mode auto p.104
Adjacent cache line prefetcher enabled p.104
Active processor cores all p.104
Cpu power management configuration p.105
Chapter 3 p.105
Chapter 3 p.106
Aspm support disabled p.106
Platform misc configuration p.106
Pci express native power management disabled p.106
Pch pci express p.106
Dmi link aspm control disabled p.106
Vt d disabled p.107
System agent sa configuration p.107
Sa pci express p.107
Peg aspm disabled p.107
Graphics configuration p.107
Dmi link aspm control disabled p.107
Chapter 3 p.107
Peg port configuration p.108
Dmi opi configuration p.108
Chapter 3 p.108
Pch configuration p.109
Chapter 3 p.109
Pci express configuration p.109
Sata mode selection ahci p.110
Sata controller s enabled p.110
Pch storage configuration p.110
Hyper kit mode disabled p.110
Chapter 3 p.110
Smart self test on p.111
Sata6g_1 gray sata6g_4 gray p.111
Chapter 3 p.111
Aggressive lpm support disabled p.111
Xhci hand off disabled p.112
Usb single port control p.112
Usb configuration p.112
Legacy usb support enabled p.112
Chapter 3 p.112
Chapter 3 p.113
Onboard devices configuration p.113
Network stack disabled p.113
Network stack configuration p.113
Wi fi controller enabled p.114
Intel lan controller enabled p.114
Hd audio controller enabled p.114
Chapter 3 p.114
Restore ac power loss power off p.115
Power on by rtc disabled p.115
Power on by pci e pci disabled p.115
Erp ready disabled p.115
Chapter 3 p.115
Apm configuration p.115
Hdd ssd smart information p.116
Chapter 3 p.116
Chapter 3 p.117
Q fan configuration p.117
Monitor menu p.117
Chapter 3 p.118
Chapter 3 p.119
Chapter 3 p.120
Chapter 3 p.121
Anti surge support on p.121
Fast boot enabled p.122
Chapter 3 p.122
Boot menu p.122
Boot logo display auto p.122
Option rom messages enabled p.123
Interrupt 19 capture disabled p.123
Chapter 3 p.123
Boot up numlock state enabled p.123
Above 4g decoding disabled p.123
Wait for f1 if error enabled p.123
Setup mode advanced mode p.123
Secure boot p.124
Csm compatibility support module p.124
Chapter 3 p.124
Chapter 3 p.125
Chapter 3 p.126
Boot override p.126
Boot option priorities p.126
Tool menu p.127
Setup animator disabled p.127
Chapter 3 p.127
Asus ez flash 3 utility p.127
Secure erase p.128
Chapter 3 bios setup p.128
Chapter 3 p.128
Ssd speeds may lower over time as with any storage medium due to data processing secure erase completely and safely cleans your ssd restoring it to factory performance levels p.128
Secure erase on the advanced mode menu p.128
Save to profile p.129
Profile name p.129
Load save profile from to usb drive p.129
Chapter 3 p.129
Asus overclocking profile p.129
Graphics card information p.130
Gpu post p.130
Dimm slot number p.130
Chapter 3 p.130
Asus spd information p.130
Launch efi shell from usb devices p.131
Exit menu p.131
Discard changes exit p.131
Chapter 3 p.131
Save changes reset p.131
Load optimized defaults p.131
Updating bios p.132
Ez update p.132
Chapter 3 p.132
Chapter 3 p.133
Asus ez flash 3 p.133
Recovering the bios p.134
Chapter 3 p.134
Asus crashfree bios 3 p.134
Please select boot device p.135
Chapter 3 p.135
Booting the system in dos environment p.135
Before updating bios p.135
Asus bios updater p.135
Chapter 3 p.136
Within five 5 seconds to enter freedos prompt p.136
Updating the bios file p.136
To update the bios file p.136
To switch the disk from drive c optical drive to drive d usb flash drive p.136
To switch from files panel to drives panel then select d p.136
Chapter 3 bios setup p.136
Chapter 3 p.137
Chapter 3 bios setup p.138
Chapter 3 p.138
Windows 7 and usb 3 driver for 100 series p.139
Window p.139
Software support p.139
Installing an operating system p.139
Chapter 4 software support p.139
Chapter 4 p.139
And usb 3 driver for 100 series p.139
Chapter 4 p.140
Method 2 using a modified window p.141
Installation source p.141
Chapter 4 p.141
1 x working system pc or notebook p.141
1 x window p.141
1 x sata odd p.141
1 x asus support dvd p.141
Method 3 using asus ez installer p.142
Chapter 4 p.142
Chapter 4 p.143
Window p.144
Os disk to iso file p.144
Chapter 4 p.144
Chapter 4 p.145
Chapter 4 p.146
To run the support dvd p.146
Support dvd information p.146
Running the support dvd p.146
Place the support dvd into the optical drive p.146
In the autoplay dialog box click run assetup exe p.146
Chapter 4 software support p.146
The software manual files are in portable document format pdf install the adob p.147
Support dvd main menu p.147
Run the support dvd p.147
Reader from the utilities tab before opening the files p.147
Obtaining the software manuals p.147
In the support dvd main menu click the manual tab p.147
Click the software manual that you wish to read p.147
Chapter 4 p.147
Asus maximus viii impact p.147
Acroba p.147
To read about your motherboard s software manual p.147
The software manuals are included in the support dvd follow the instructions below to get the necessary software manuals p.147
Software information p.148
Installing ai suite 3 p.148
Chapter 4 p.148
Ai suite 3 p.148
Launching ai suite 3 p.149
Chapter 4 p.149
The ai suite main menu includes is a quick access menu bar that allows you to swiftly launch any of the integrated asus utilities click p.150
The ai suite 3 main menu gives you easy access controls and insight to what s going on with your computer allowing you to optimize performance settings while at the same time ensuring system stability p.150
On the left of the menu to launch the menu bar p.150
Chapter 4 software support p.150
Chapter 4 p.150
Ai suite 3 main menu bar p.150
Ai suite 3 main menu p.150
Chapter 4 p.151
Way optimization p.151
Dual intelligent processors 5 p.151
Using tpu p.152
Turbo processing unit tpu p.152
Tpu allows you to manually adjust the cpu frequency cpu cache core frequencies dram frequency and related voltages for an enhanced system stability and a performance boost p.152
Cpu frequency p.152
Chapter 4 software support p.152
Chapter 4 p.152
Gpu boost p.153
Chapter 4 p.153
Asus maximus viii impact p.153
Using epu p.154
Epu is a real time system power saving chip that automatically detects the current system load and intelligently moderates power usage it offers a total system wide energy optimization reduces fan noise and extends the lifespan of your hardware components p.154
Energy processing unit epu p.154
Chapter 4 software support p.154
Chapter 4 p.154
Digi power control p.155
Chapter 4 p.155
Fan xpert 3 p.156
Chapter 4 software support p.156
Chapter 4 p.156
Asus fan xpert 3 provides customizable settings of your fans for a cooler and more quiet computing environment with its fan auto tuning feature asus fan xpert 3 automatically tweaks the settings of cpu and chassis fans to achieve their best cooling performance asus fan xpert 3 also supports hardware level pwm dc combo mode for the cpu and chassis fans you can also reduce the cpu fan speed below the default minimum for a noiseless operation during light loads p.156
Turbo app p.157
Chapter 4 p.157
Pc cleaner allows you to clean the system junk files by scanning and deleting selected files p.158
Pc cleaner p.158
Chapter 4 software support p.158
Chapter 4 p.158
Asus maximus viii impact p.159
Ai charger screen p.159
Ai charger allows you to fast charge your portable bc 1 mobile devices on your computer s usb port three times faster than the standard usb devices p.159
Ai charger p.159
To launch ai charger click p.159
On the left of the ai suite 3 main menu then select ai p.159
Launching ai charger p.159
Charger p.159
Chapter 4 p.159

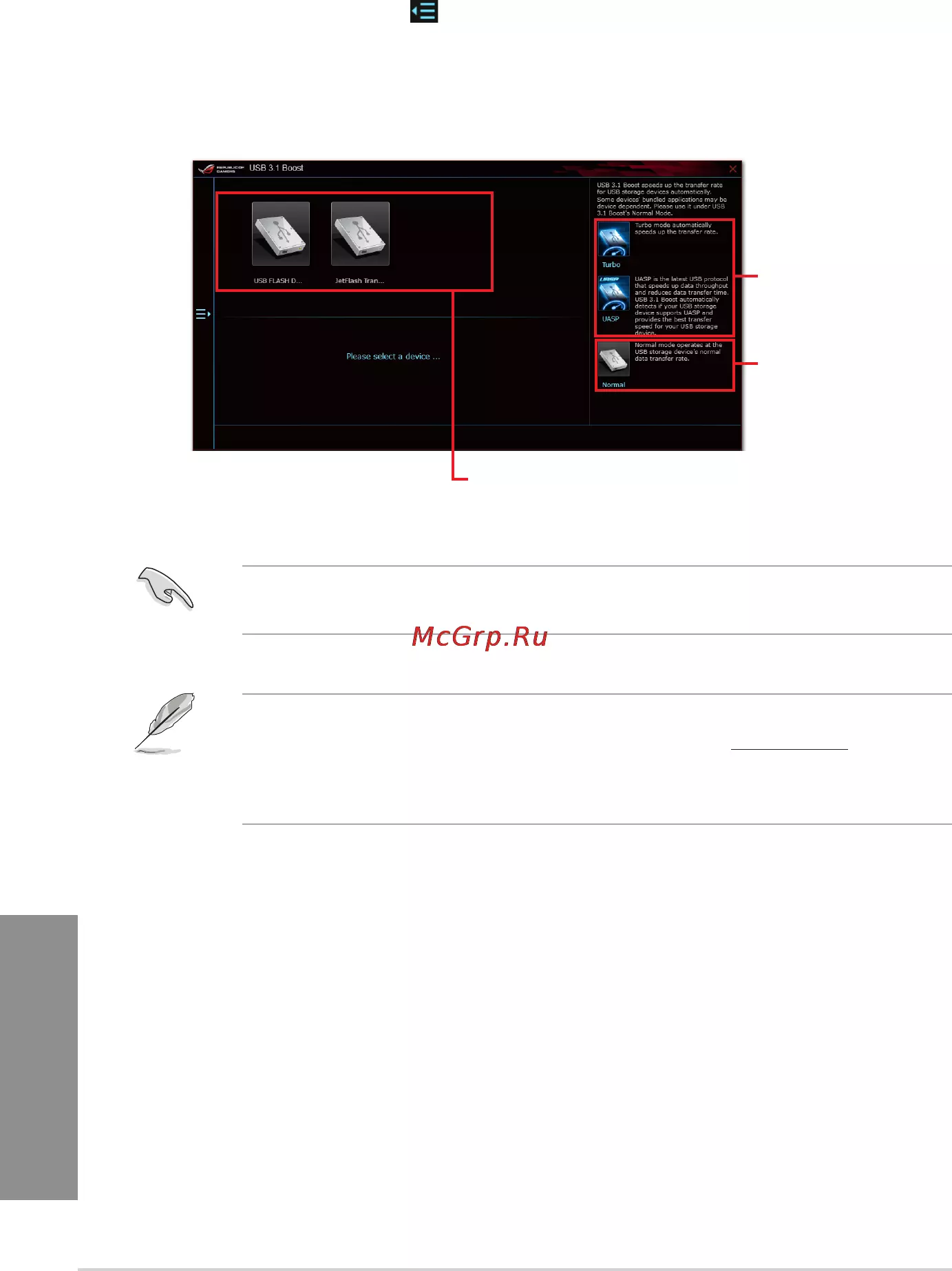

Using the usb 3 boost p.160
Usb 3 boost technology supports uasp usb attached scsi protocol that automatically speeds up the transfer rates of your usb storage devices p.160
Usb 3 boost p.160
To launch usb 3 boost click p.160
On the left of the ai suite 3 main menu then select usb p.160
Launching usb 3 boost p.160
Chapter 4 software support p.160
Chapter 4 p.160
Ez update screen p.161
Ez update p.161
Chapter 4 p.161
Launching ez update p.161
System information p.162
Launching the system information p.162
Chapter 4 p.162
Chapter 4 p.163
To launch mobo connect click p.164
On the left of the ai suite 3 main menu then select mobo p.164
Mobo connect screen p.164
Mobo connect allows you to share the pc s keyboard mouse for smart devices or stream audio playback from your smart device yo the pc p.164
Mobo connect p.164
Launching mobo connect p.164
Connect p.164
Chapter 4 software support p.164
Chapter 4 p.164
Launching usb bios flashback p.165
Chapter 4 p.165
Using usb bios flashback p.165
Usb bios flashback p.165
Chapter 4 p.166
Wi fi engine p.167
Using wi fi engine p.167
Launching wi fi engine p.167
Chapter 4 p.167
Using the ap mode p.168
To use ap mode click or tap ap mode on the wi fi engine menu p.168
The ap mode allows you to set your system as an access point for other wireless enabled devices p.168
Some networks may require you to key in a password p.168
From the list of available networks select a network that you want to connect to p.168
Chapter 4 software support p.168
Chapter 4 p.168
Chapter 4 p.169
Asus account login p.169
Wi fi go and remote go p.169
System requirements p.169
Smart device supported screen resolutions p.169
Logging in p.170
Creating an asus account p.170
Chapter 4 p.170
Using wi fi go p.171
Chapter 4 p.171
Wi fi go nfc remote app for smart devices p.172
Chapter 4 p.172
Using the wake on lan p.173
Chapter 4 p.173
Cloud go p.174
Click or tap cloud go p.174
Chapter 4 software support p.174
Chapter 4 p.174
To use cloud go p.174
Log in to your cloud account then click or tap sign in p.174
Google drive and skydriv p.174
Cloud go allows you to control and synchronize your files across multiple cloud services such as asus webstorage dropbo p.174
To use remote desktop p.175
Remote desktop interface for window p.175
Remote desktop allows you to remotely control your desktop in real time using your smart device p.175
Remote desktop p.175
On your smart device tap remote desktop p.175
Chapter 4 p.175
Asus maximus viii impact p.175
Remote desktop control notification p.176
Chapter 4 p.176
File transfer p.177
Chapter 4 p.177
Chapter 4 p.178
Remote keyboard mouse allows you to use your smart device s touch panel as a remote keyboard and mouse for your computer p.178
Remote keyboard mouse p.178
Chapter 4 software support p.178
Push notice screen p.179
Push notice p.179
Pairing your computer and smart device p.179
Launching push notice on your computer p.179
Chapter 4 p.179
This feature allows you to send alerts of the unusual activities of the voltage temperature and fan settings of your computer to your smart device p.180
This feature allows you to restart shut down or put your computer to sleep mode and sends an alert to your smart device p.180
Setting up pc status alerts p.180
Setting up pc mode alerts of your computer p.180
Chapter 4 software support p.180
Chapter 4 p.180
Chapter 4 p.181
Asus maximus viii impact p.181
You can also send messages via the push notice messaging shortcut on the lower right p.181
Viewing your computer status on your smart device p.181
This feature allows you to send messages to your smart device p.181
Then select p.181
Sending messages to your smart device p.181
On your smart device to launch push notice p.181
Corner of your screen to do this click then click p.181
Sonic studio ii p.182
Rog audio features p.182
Installing the software p.182
Chapter 4 p.182
Chapter 4 p.183
Chapter 4 p.184
Chapter 4 p.185
Sonic senseamp p.186
Chapter 4 p.186
Chapter 4 p.187
Asus maximus viii impact p.187
After you close the pop window sonic senseamp enters speaker configuration and displays the adjusted headphone impedance p.187
Dts connect p.188
Chapter 4 p.188
Sonic radar ii is designed for first person shooting fps games and shows the precise direction and intensity of where a sound is coming from it features a simple and friendly user interface and also features sound enhancers to amplify desired sound effects p.189
Sonic radar ii p.189
Display menu p.189
Customize the settings for each game including transparency signal size and remanency p.189
Chapter 4 p.189
Asus maximus viii impact p.189
Chapter 4 p.190
Game mode game packets given top priority p.191
File sharing mode file sharing packets given top priority p.191
Chapter 4 p.191
Asus maximus viii impact p.191
To use gamefirst iii double click p.191
Optimization mode game packets are prioritized and other packets also optimized p.191
On the desktop p.191
Media streaming mode media streaming packets given top priority p.191
Gamefirst iii is a network management software that features four preset packet prioritized profiles optimization game media streaming and file sharing facilitating different user scenarios users can also manually allocate bandwidth and adjust priority settings of each application to run faster and smoother p.191
Gamefirst iii p.191
Network monitor p.192
Chapter 4 p.192
You can use this feature to test the internet service provider isp speed or manually key in the desired uploading downloading speed and apply the speed if needed p.193
Using the network information p.193
Displays information about the physical network card such as speed physical address ip address subnet mask and default gateway p.193
Chapter 4 p.193
Bandwidth test p.193
Asus maximus viii impact p.193
Keybot ii p.194
Chapter 4 p.194
Chapter 4 p.195
Chapter 4 p.196
Asus media streamer p.196
The following media formats are supported gp mp4 m4a aac ts flac mp3 mid xmf mxmf rtttl rtx ota imy ogg mkv wav jpg gif png bmp webp webm p.197
Chapter 4 p.197
Asus maximus viii impact p.197
Adding and deleting media files p.197
Your ramdisk drive allows you to place your favorite applications and files into ram so you can utilize your ram speed for better read write performance the files that are stored inside the ramdisk are automatically backed up every time your pc is turned off p.198
To launch ramdisk click p.198
To create ramdisk drives p.198
Ramdisk is a data storage software that reserves a part of your system s memory and turns it into a high speed virtual drive where you can store cache files and game apps for instant access the dynamic memory allocation function can release the unused memory of ramdisk back to the system when needed and helps extend the lifespan of your ssd or hdd p.198
Ramdisk p.198
Creating deleting a ramdisk drive p.198
Chapter 4 software support p.198
Chapter 4 p.198
A junction point creates a link that remaps the original contents into the ramdisk enabling access to the desired application or data to be done purely within the original file location p.199
To delete or format an existing ramdisk drive p.199
The format function is available only if you enable the dynamic memory allocation function on your disk p.199
Creating deleting a junction point p.199
Chapter 4 p.199
Asus maximus viii impact p.199
Synchronizing backup files p.200
Chapter 4 p.200
Memtweakit p.201
Chapter 4 p.201
Validating and saving your memtweakit settings p.202
Chapter 4 p.202
Rog cpu z p.203
Chapter 4 p.203
Ramcache p.204
Chapter 4 p.204
Chapter 5 p.205
Raiddefinitions p.205
Raidconfigurations p.205
Raid support p.205
Raid definitions p.205
Raid configurations p.205
Chapter 5 raid support p.205
Settingtheraiditeminbios p.206
Setting the raid item in bios p.206
Installingserialataharddisks p.206
Installing serial ata hard disks p.206
Chapter 5 p.206
The navigation keys at the bottom of the screen allow you to move through the menus the navigation keys at the bottom of the screen allow you to move through the menus and select the menu options p.207
Rapidstoragetechnologyoptionromutility p.207
Intel rapid storage technology option rom utility p.207
Chapter 5 p.207
Asus maximus viii impact p.207
Turn on the system p.207
Toentertheinte p.207
To display the utility main menu p.207
The utility supports maximum four hard disk drives for raid configuration p.207
The raid bios setup screens shown in this section are for reference only and may not exactly match the items on your screen p.207
Tocreatearaidset p.208
To select the hard disk drives you want to include in the raid set the select disks screen appears p.208
The following screen appears p.208
Creatingaraidset p.208
Chapter 5 raid support p.208
Chapter 5 p.208
Chapter 5 p.209
Deletingaraidset p.210
Chapter 5 raid support p.210
Chapter 5 p.210
Be cautious when deleting a raid set you will lose all data on the hard disk drives when you delete a raid set p.210
Todeletearaidset p.210
To return to the delete volume menu p.210
The following warning message appears p.210
The following screen appears p.210
Rapidstoragetechnologyoptionromutility p.211
Exitingtheinte p.211
Creatingaraiddriverdiskwithoutenteringtheos p.211
Creatingaraiddriverdisk p.211
Creating a raid driver disk without entering the os p.211
Creating a raid driver disk p.211
Chapter 5 p.211
Installingtheraiddriverduringwindow p.212
Installing the raid driver during windows os installation p.212
Creatingaraiddriverdiskinwindow p.212
Creating a raid driver disk in windows p.212
Chapter 5 p.212
Os installation p.212
Notices p.213
Federal communications commission statement p.213
Appendix p.213
Appendices p.213
Vcci japan compliance statement p.214
Kc korea warning statement p.214
Ic canadian compliance statement p.214
Class b ite p.214
Canadian department of communications statement p.214
Appendix p.214
Rf equipment notices p.215
Exposure to radio frequency energy p.215
Ce european community compliance statement p.215
Asus recycling takeback services p.215
Appendix p.215
Wireless radio use p.215
Ncc taiwan wireless statement p.216
Japan rf equipment statement p.216
Google license terms p.216
Fcc bluetooth wireless compliance p.216
Bluetooth industry canada statement p.216
Appendix p.216
Asus maximus viii impact p.217
Appendix p.217
Technical support p.218
Asustek computer inc p.218
Asus contact information p.218
Asus computer international america p.218
Asus computer gmbh germany and austria p.218
Appendix p.218
108 ec emc directive p.219
Name jerry shen p.219
Motherboard p.219
Model name maximus viii impact p.219
Maximus viii impact p.219
Ec declaration of conformity p.219
Ec conformity marking p.219
Declare the following apparatus p.219
Declaration of conformity p.219
Declaration date 21 09 2015 declaration date 21 09 2015 p.219
Conform with the essential requirements of the following directives p.219
Year to begin affixing ce marking 2015 p.219
Ce marking p.219
We the undersigned p.219
Appendix p.219
Ver 140331 p.219
95 ec lvd directive p.219
Signature signature p.219
65 eu rohs directiv p.219
Product name motherboard p.219
5 ec r tte directive p.219
125 ec erp directive p.219
Position ceo p.219
Appendix p.220
Appendices p.220

Asus rog maximus viii impact [161/220] Ez update

Содержание

Похожие устройства
