Asus rog maximus viii impact [187/220] Chapter 4

ASUS MAXIMUS VIII IMPACT

4-49

Chapter 4

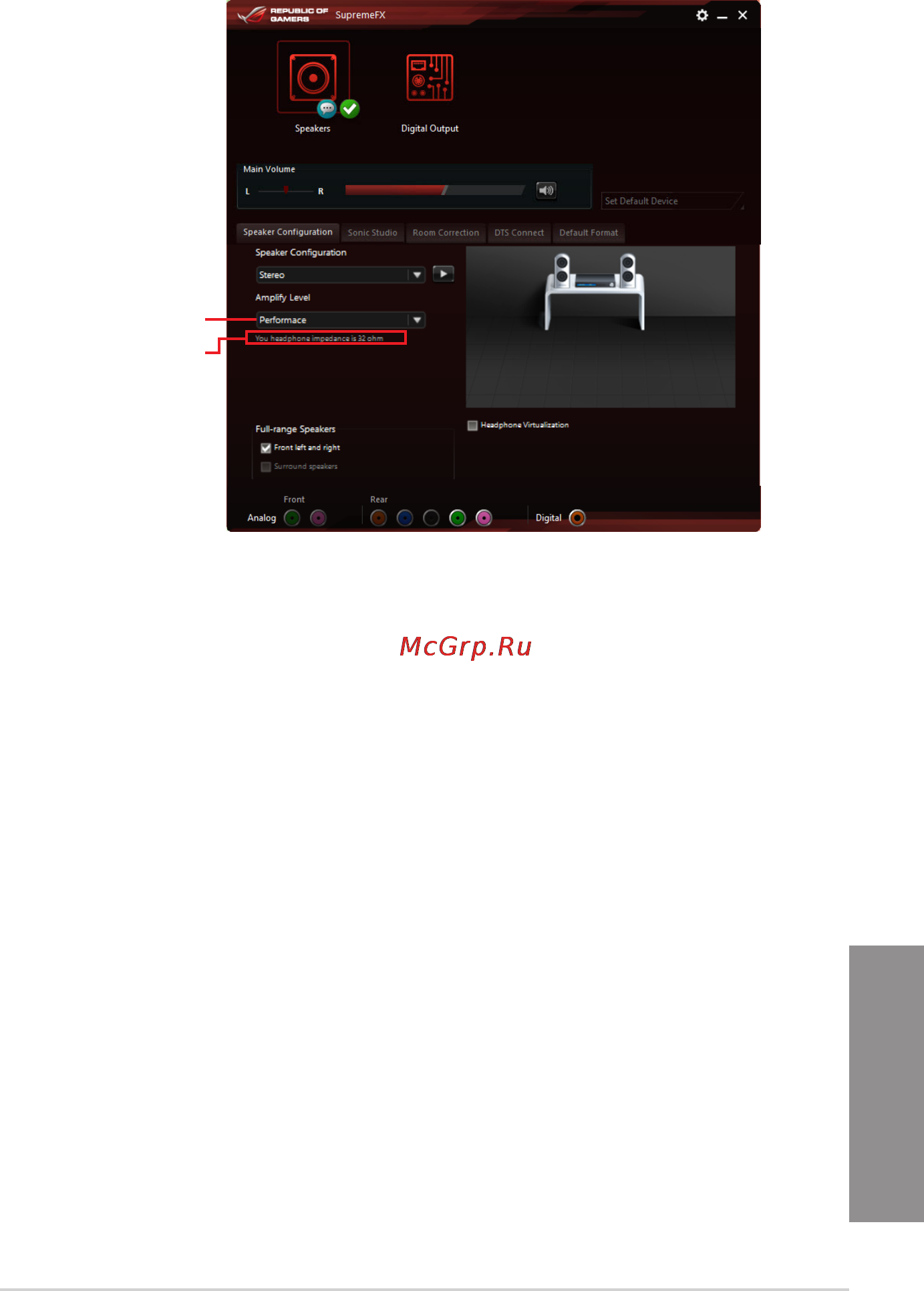

After you close the pop-window, Sonic SenseAmp enters speaker conguration and

displays the adjusted headphone impedance.

Click to manually adjust the

amplify level

Displays the impedance of

your headphone
