Инструкция по эксплуатации Страница: 193

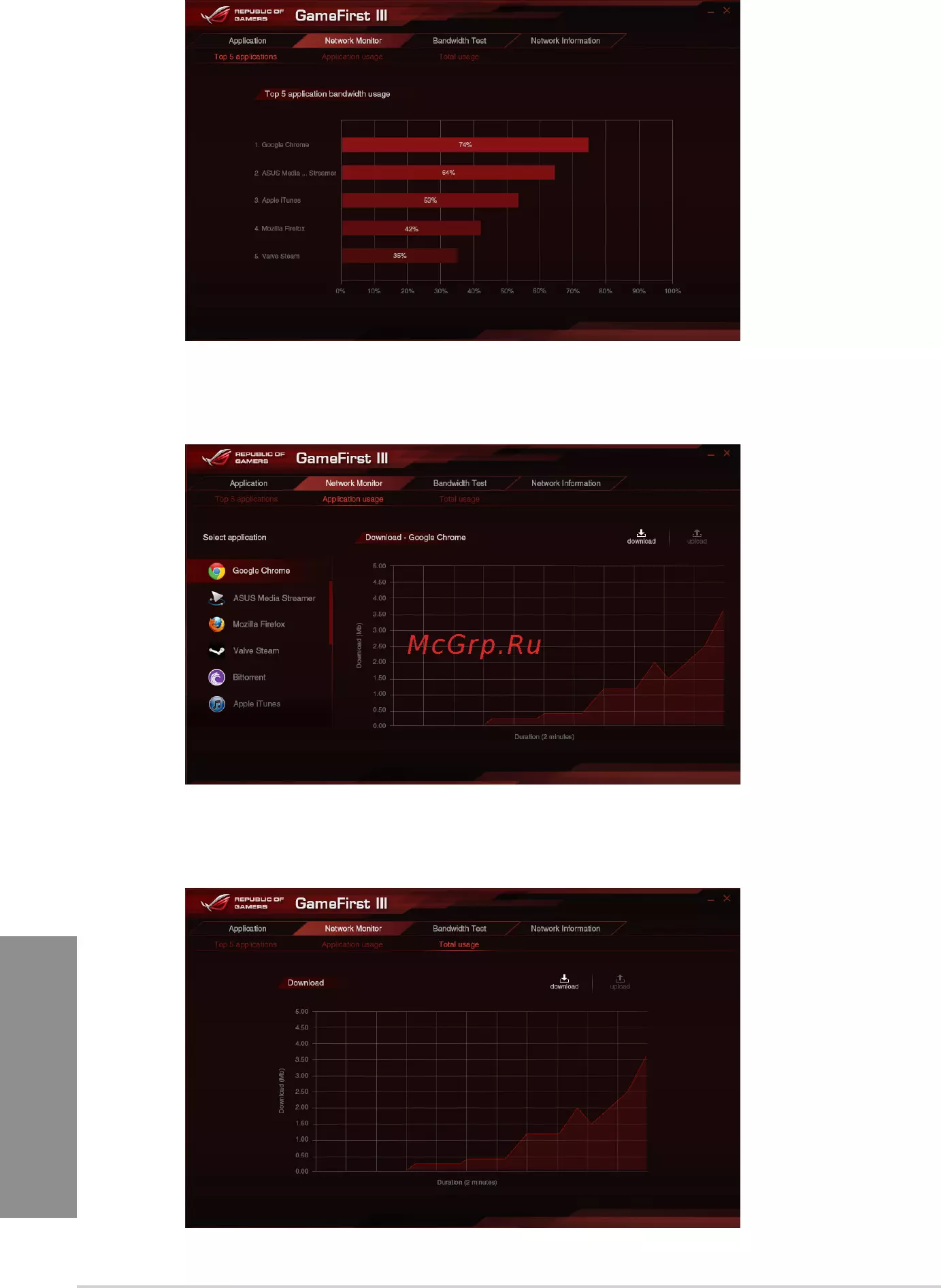

Asus rog maximus viii impact [193/220] You can use this feature to test the internet service provider isp speed or manually key in the desired uploading downloading speed and apply the speed if needed

ASUS MAXIMUS VIII IMPACT

4-55

Chapter 4

Click to begin the

speed test

Bandwidth Test

You can use this feature to test the Internet Service Provider (ISP) speed or manually key in

the desired uploading/downloading speed and apply the speed if needed.

Key in the upload/

download speed

Click to apply the speed after manually keying in the

desired speed or after you performing the speed test

Using the Network Information

Displays information about the physical network card such as speed, physical address, IP

address, subnet mask, and default gateway.
