2G6
2-1-2
(1) Paper feed control
The following diagram shows interconnectivity of the feeding system components including the sensors and rollers.
The engine board provides the signals in conjunction with the electrophotography process that is driven by the main
board.

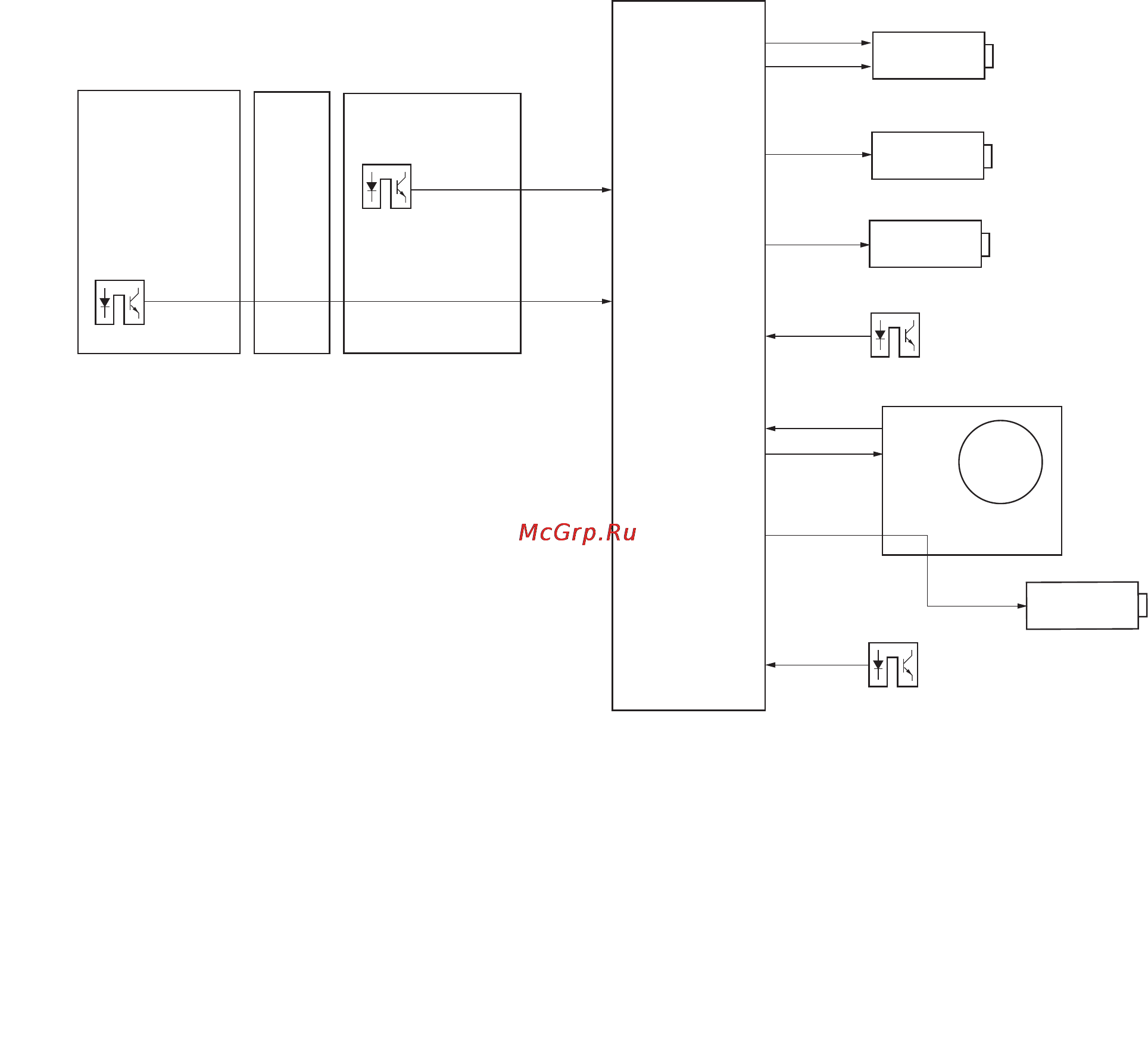

Figure 2-1-2 Paper feed control
MRDYN
YC04-8
YC04-9
YC04-1
YC14-2
CN1-8
CN1-9
CN1-1
CN2-2
DUDR1
RESDRN
RESIT
YC303-6
CN2-10 CN302-7
YC11-8
YC13-1
YC13-3
YC03-2
YC12-10
EXITN
Engine PWB
Bias PWB
High
voltage
unit
Switchback
solenoid
Registration
solenoid
MPFSOL
YC09-2
MP feed
solenoid
MP paper
sensor
HANDSN
YC07-2
FEDDRN
FEDDRN
Feed
solenoid
Main motor
Paper
sensor
PAPER
Registration
sensor
Power
supply
unit
Exit
sensor
DUDR2
MOTORN
