2G6
1-5-15
Causes Check procedures/corrective measures
1. Contaminated main charger wire.
2. Dirty or flawed drum.
3. Deformed or worn cleaning blade.
4. Defective magnet roller (in the process unit).

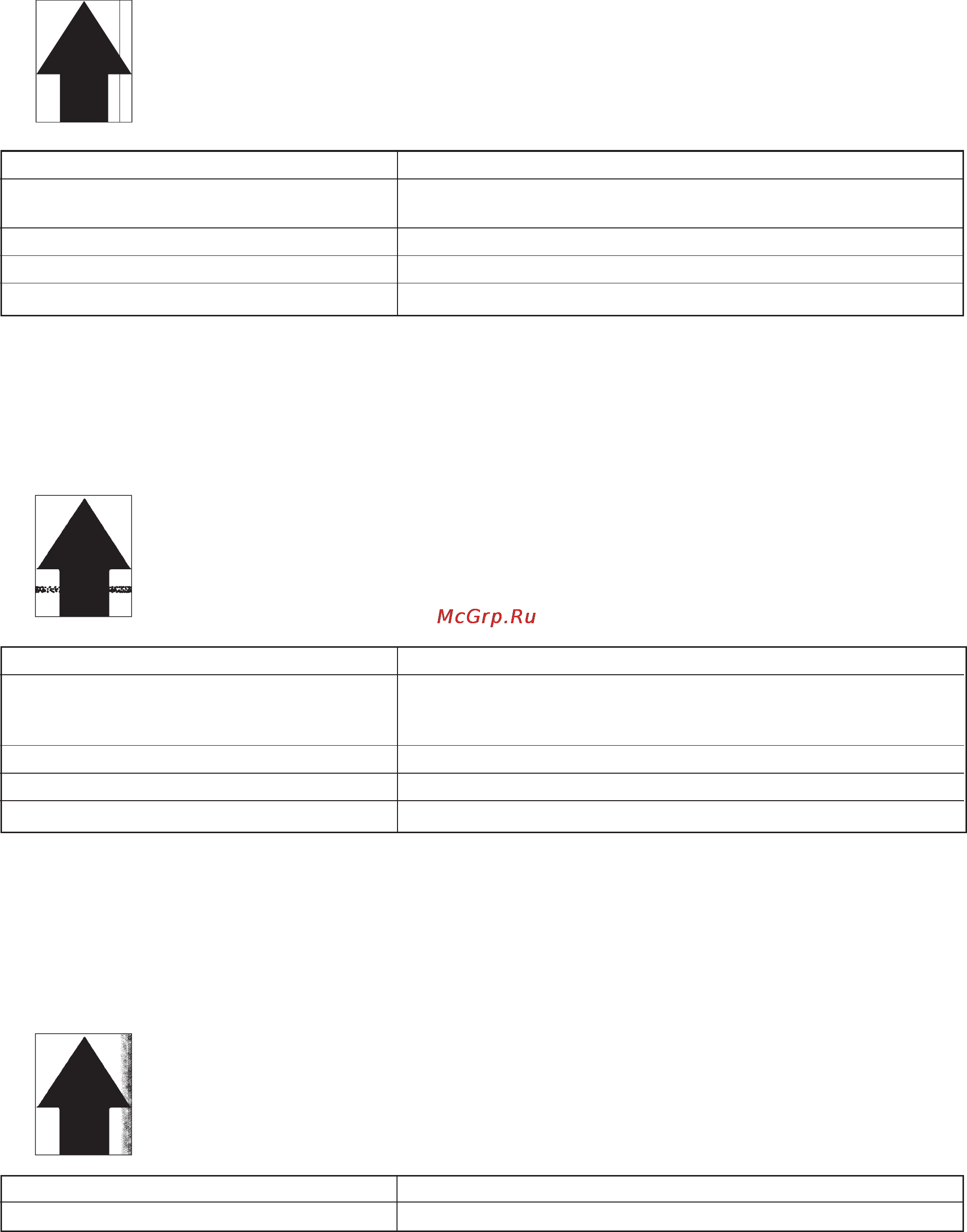

(6) A black line appears
longitudinally.
Causes
1. Contaminated main charger wire.
2. Dirty or flawed drum.
3. Deformed or worn cleaning blade.
4. Defective magnet roller (in the process unit).
Clean the main charger wire by pulling the green colored cleaning
knob in and out several times.
Replace the process unit.
Replace the process unit.
Replace the process unit.
Causes Check procedures/corrective measures
1. Defective process unit's grounding.
2. Flawed drum.
3. Dirty developing section.
4. Leaking main charger housing.
Causes Check procedures/corrective measures
1. Dirty main charger wire.
(7) A black line ap-
pears laterally.
Causes
1. Defective process unit's grounding
2. Flawed drum.
3. Dirty developing section.
4. Leaking main charger housing.
(8) One side of the
print image is
darker than the
other.
Causes
1. Dirty main charger wire.
The drum axle in the process unit and its counter part, the grounding
tab in the printer, must be in a good contact. If necessary, apply a
small amount of electro-conductive grease onto the tab.
Replace the process unit.
Replace the process unit.
Replace the process unit.
Replace the process unit.
