2G6
1-6-19
1-6-9 Removing and splitting the fuser unit
WARNING
The fuser unit is hot after the printer was running. Wait until it cools down.
CAUTION
When refitting the fuser unit, make sure the fuser unit gear and the printer’s drive gear are properly meshed with each
other. For this, rotate the main motor several turns before fixing screws.
1. Remove the rear side cover.
2. Remove the right and left cover (See page 1-6-4).
3. Remove the two connectors.
4. Remove two screws.
5. Remove the fuser unit.

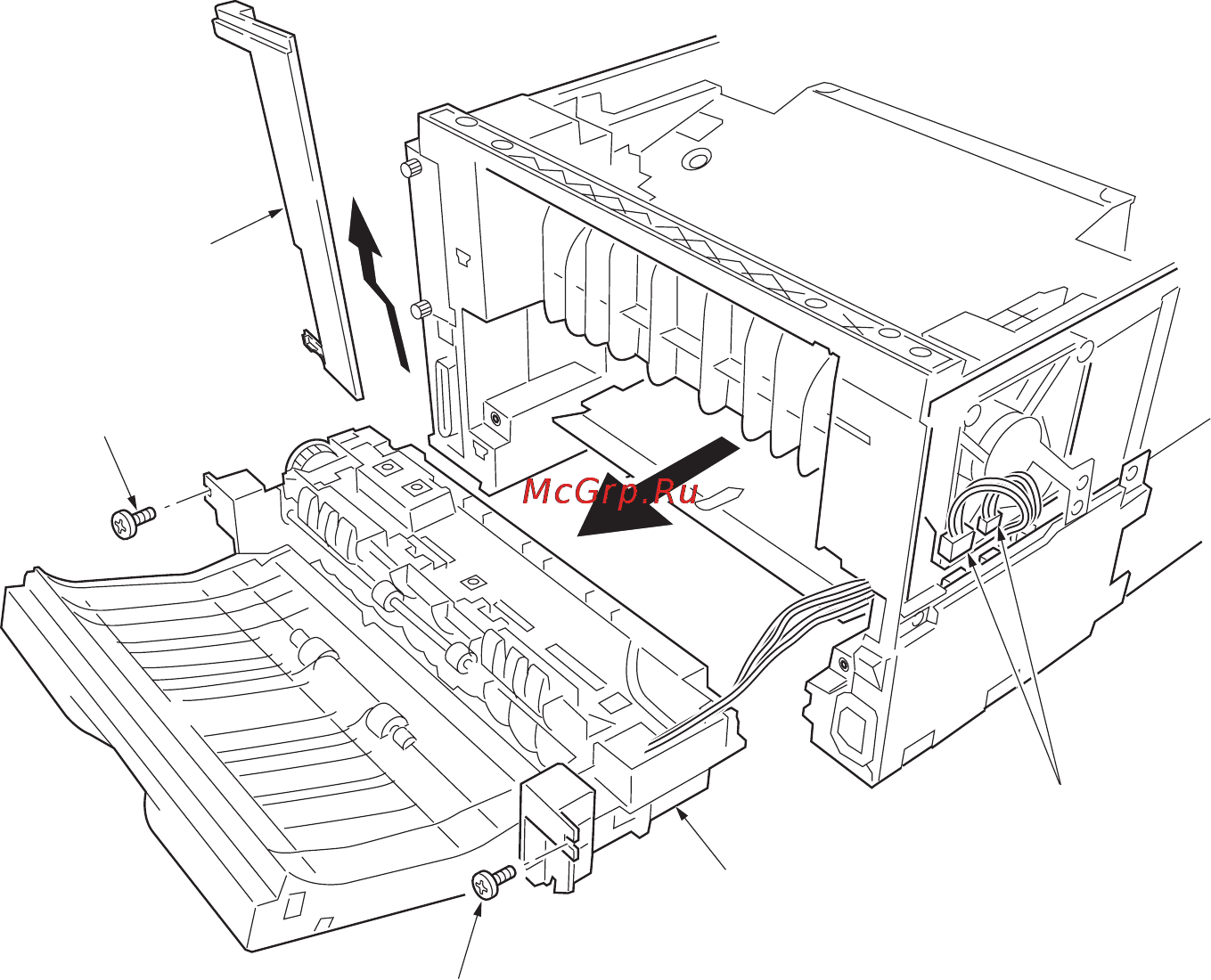

Figure 1-6-20 Removing the fuser unit
Screw
Rear side cover
Screw
Fuser unit
Connectors
