1-3-11
2G6
1-3-4 Installing the network interface card (option)
If the serial interface board kit is installed, remove it to use the network interface card.

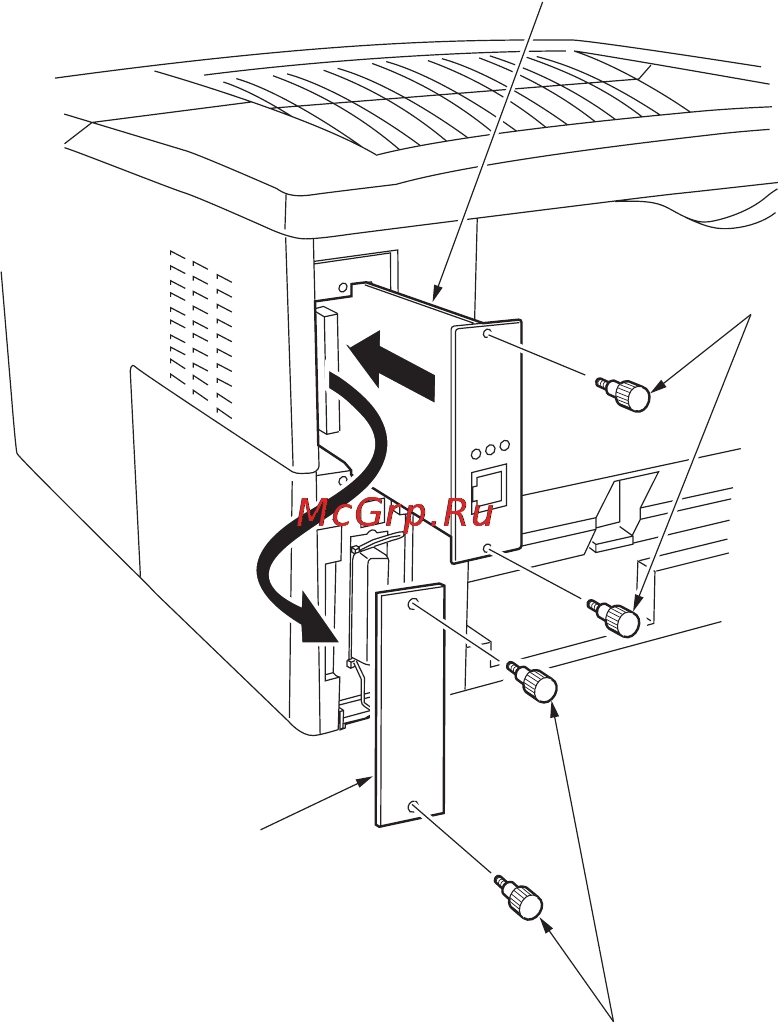

Figure 1-3-19 Inserting the network interface card
Screws
Network interface card
Screws
Option interface
slot cover
CAUTION
Take precautions that no foreign substances such as
metal chips or liquid get inside the printer during the
installation process. Operation of the printer during the
presence of a foreign substance may lead to fire or
electric shock.
WARNING
Turn the printer's power switch off. Unplug the printer's
power cable.
Procedure
1. Remove the two screws and then remove the option
interface slot cover (or the serial interface board).
2. Insert the network interface card in the slot. Push it
in all the way.
3. Secure the network interface card by using two
screws.
