1-3-10
2G6
1-3-3 Installing the memory card (option)
The main board of the printer is equipped with one
slot for memory card.
CAUTION
Take precautions that no foreign substances such as
metal chips or liquid get inside the printer during the
installation process. Operation of the printer during
the presence of a foreign substance may lead to fire or
electric shock.
WARNING
Turn the printer's power switch off. Unplug the
printer's power cable and disconnect the printer from
the computer or the network. Never insert or remove a
memory card while the printer power is ON.
Failure to turn the power switch OFF will immediately
halt the printer with a [Memory card err20] message
(this message may not always appear). It also could
result in any damage to the printer's electronic parts or
the memory card. Turn the power switch ON again to
restart the printer.
Procedure
1. Remove the two screws and then remove the
option interface slot cover (or network interface
card/serial interface board).
2. Insert the memory card in the slot. Push it in all
the way.
3. Secure the option interface slot cover (or network
interface card/serial interface board) by using two
screws.

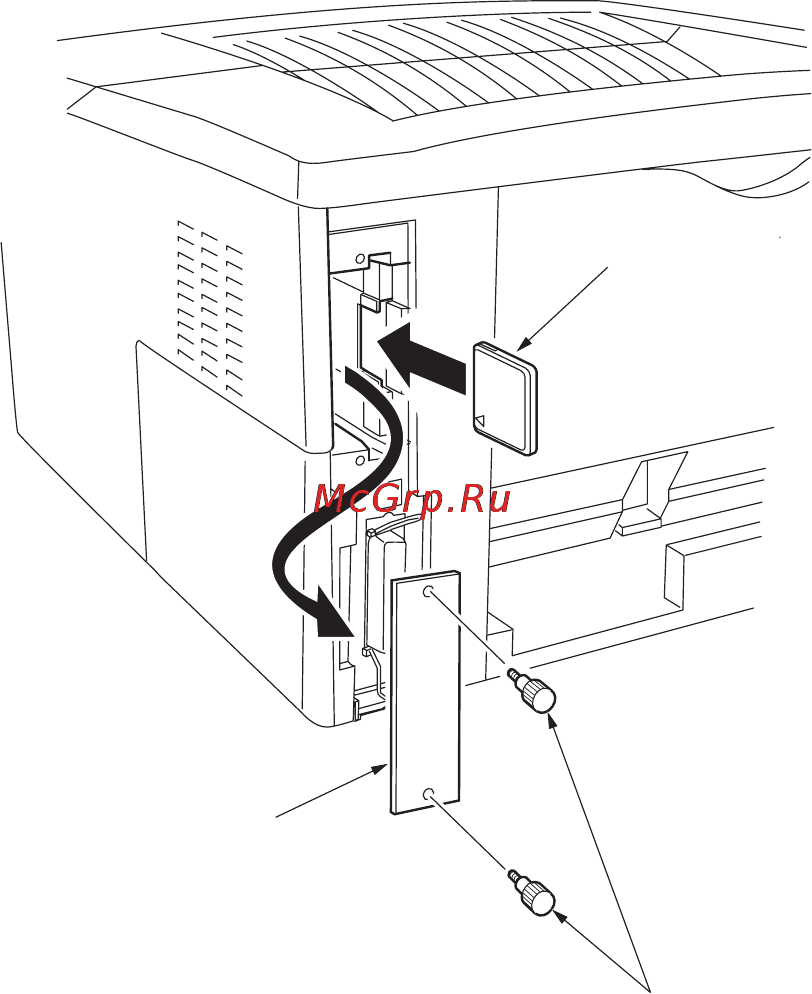

Figure 1-3-18 Inserting the memory card
Screws
Memory card
Option interface
slot cover
