150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual

3. Login

You can manage the 150Mbps/300Mbps Wireless-N AP/ Repeater / Router client through the

Web browser-based configuration utility. To configure the device via Web browser, at least one

properly configured computer must be connected to the device via Ethernet or wireless network.

The 150Mbps/300Mbps Wireless-N AP/ Repeater / Router client is configured with the

default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is

enabled by default. Before setting up the Router, make sure your PCs are configured to obtain

an IP address automatically from the Router by the steps below.

3.1. Configure computer

3.1.1. Windows 98/Me

1. Go to Start à Settings à Control Panel.

2. Find and double-click the Network icon. The Network dialog box appears.

3. Click the Configuration label and ensure that you have network card.

4. Select TCP/IP. If TCP/IP appears more than once, please select the item that has an arrow “à”

pointing to the network card installed on your computer. DO NOT choose the instance of

TCP/IP with the words “Dial Up Adapter” beside it.

5. Click Properties. The TCP/IP Properties dialog box appears.

6. Ensure the Obtain IP Address Automatically is checked.

7. From the WINS Configuration dialog box, Ensure that Disable WINS Resolution is checked.

8. From the Gateway dialog box, remove all entries from the Installed gateways by selecting

them and clicking Remove.

9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search

Order box by selecting them and clicking Remove. Remove all entries from the Domain Suffix

Search Order box by selecting them and clicking Remove. Click Disable DNS.

10. Click OK, back to Network Configuration dialog box

11. Click OK, if prompted to restart, click YES.

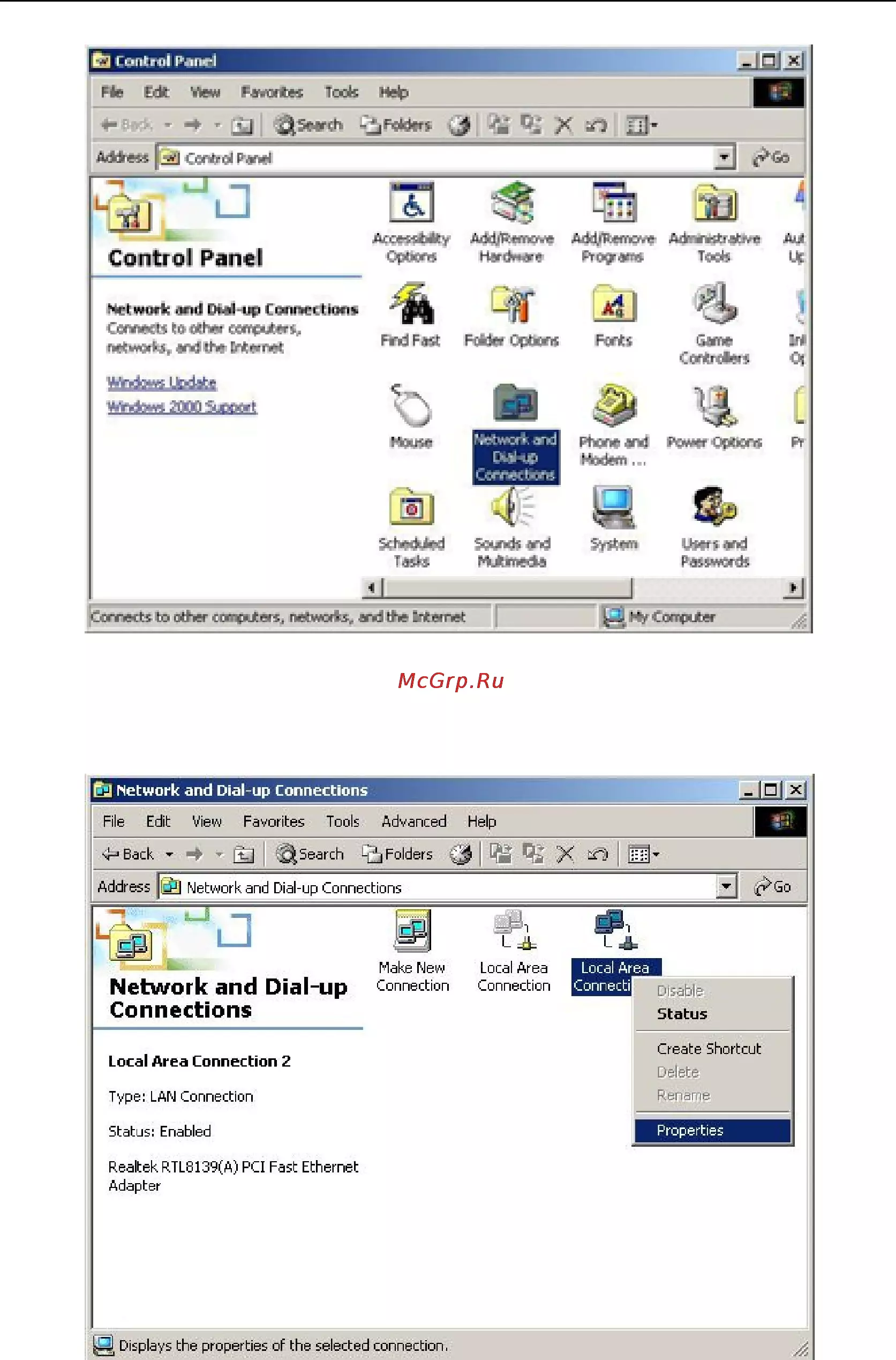

3.1.2. Windows 2000

Please follow the steps below to setup your computer:

1. Go to Start à Settings à Control Panel
