150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual

1. Push the WPS button in the Router until the WPS LED is flashing several times.

2. Push the WPS button in the wireless network card for about 3-5seconds.

3. The safe connection will be established automatically.

Method 2:

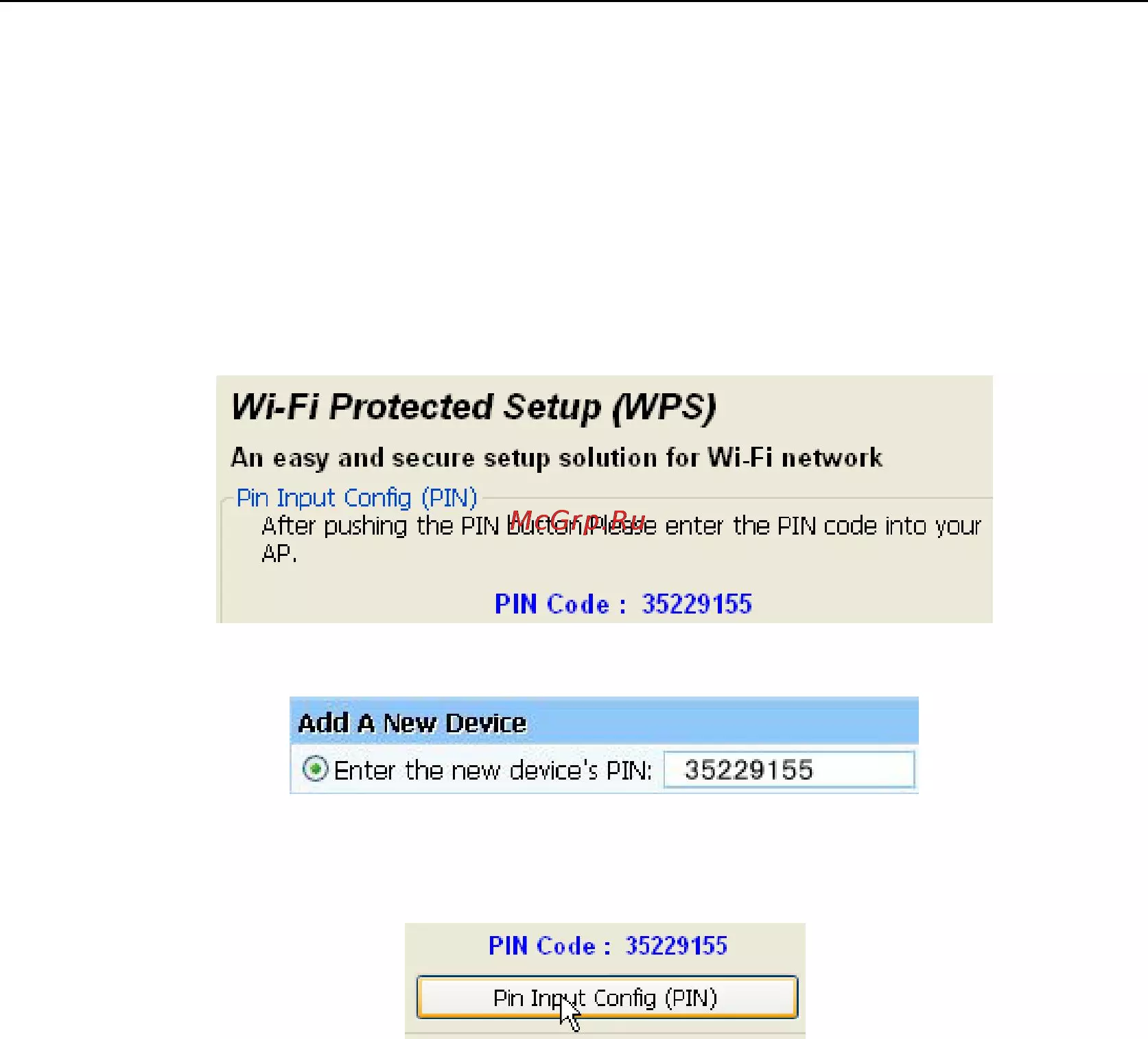

1. Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then

click ’connect’.

Figure 4-14

Figure 4-15

2. Push the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter

Figure 4-16

3. Select this router in the pop-up window, then click ‘Select’

4. The connection between the adapter and the router is be established automatically.

Method 3:

1. Select ‘Input PIN from AP’ in WI-FI protect setup page, input PIN of the router, then click

‘PIN Input Config (PIN)’

2. Select this router in the pop-up window, then click ‘Select’

3. The connection between the adapter and the router is be established automatically.

Remark

If there is more than one AP in the PBC mode when you use the method 1, there will be session

overlap. Please using method 2/3 or wait for a while push the button again.

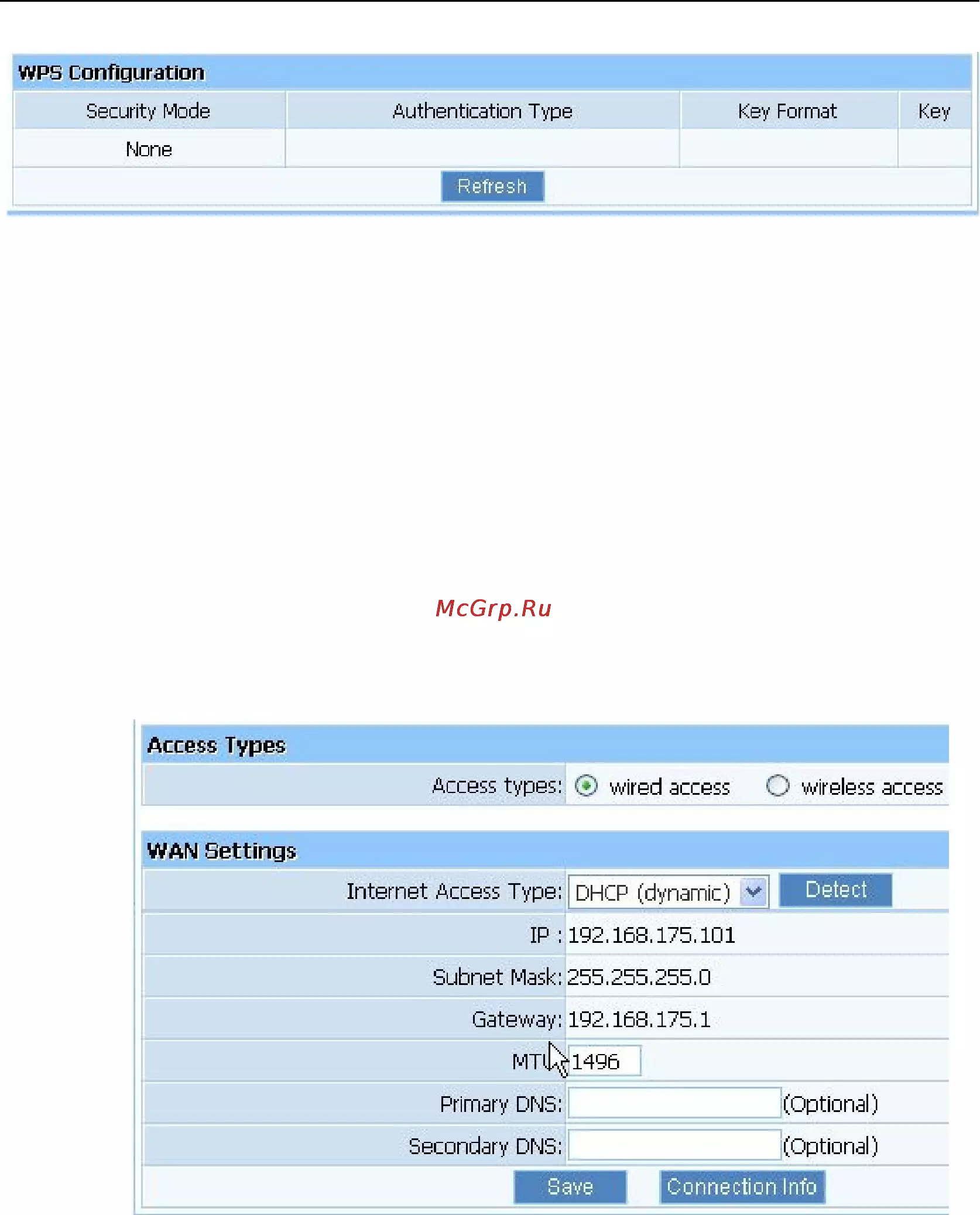

4.3.3. WPS Configuration

Display the WPS configuration information.
