150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual

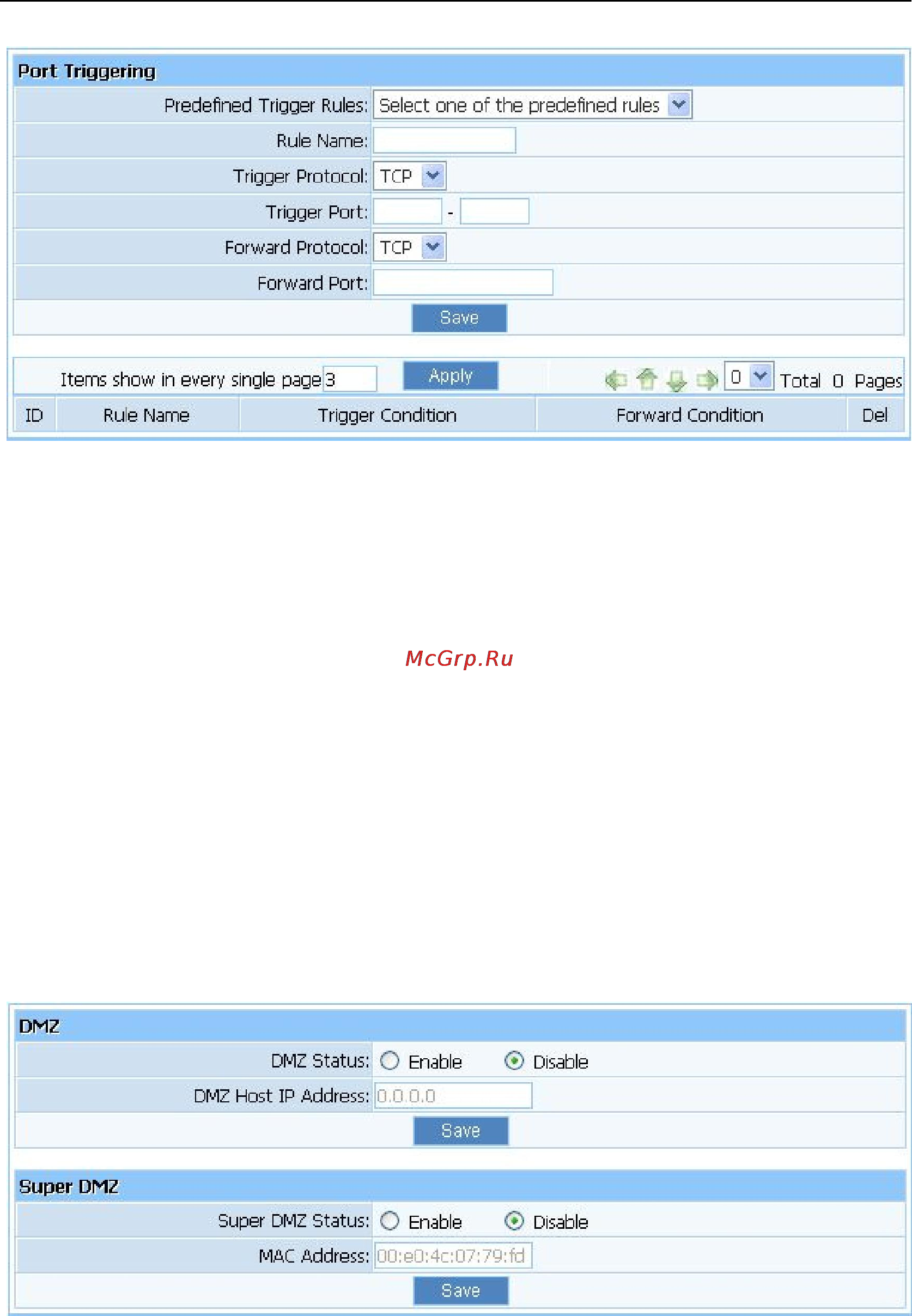

Figure 4-38

Ø Predefined Trigger Rules: select one of the Predefined Rules.

Ø Rule Name: describe one Predefined Trigger that you will configure.

Ø Trigger Protocol: you can select TCP/UDP.

Ø Trigger Port: you can select a part of ports.

Ø Forward Protocol: you can select TCP/UDP.

Ø Forward Port: you can select a part of ports.

4.7.3. DMZ

DMZ opens all the ports of one computer, exposing the computer to the Internet. So it should

only be used for some special-purpose, especial for Internet online games. Using this function

you can select “DMZ” item and input IP address of DMZ host, then click “Save”. For the

purpose of security, we suggested that using “Virtual servicer” instead of “DMZ”.

Figure 4-39

4.7.4. UPnP

The UPnP function supports load Application’s port forward record automatically. Select

“Enable” to enable this function.
