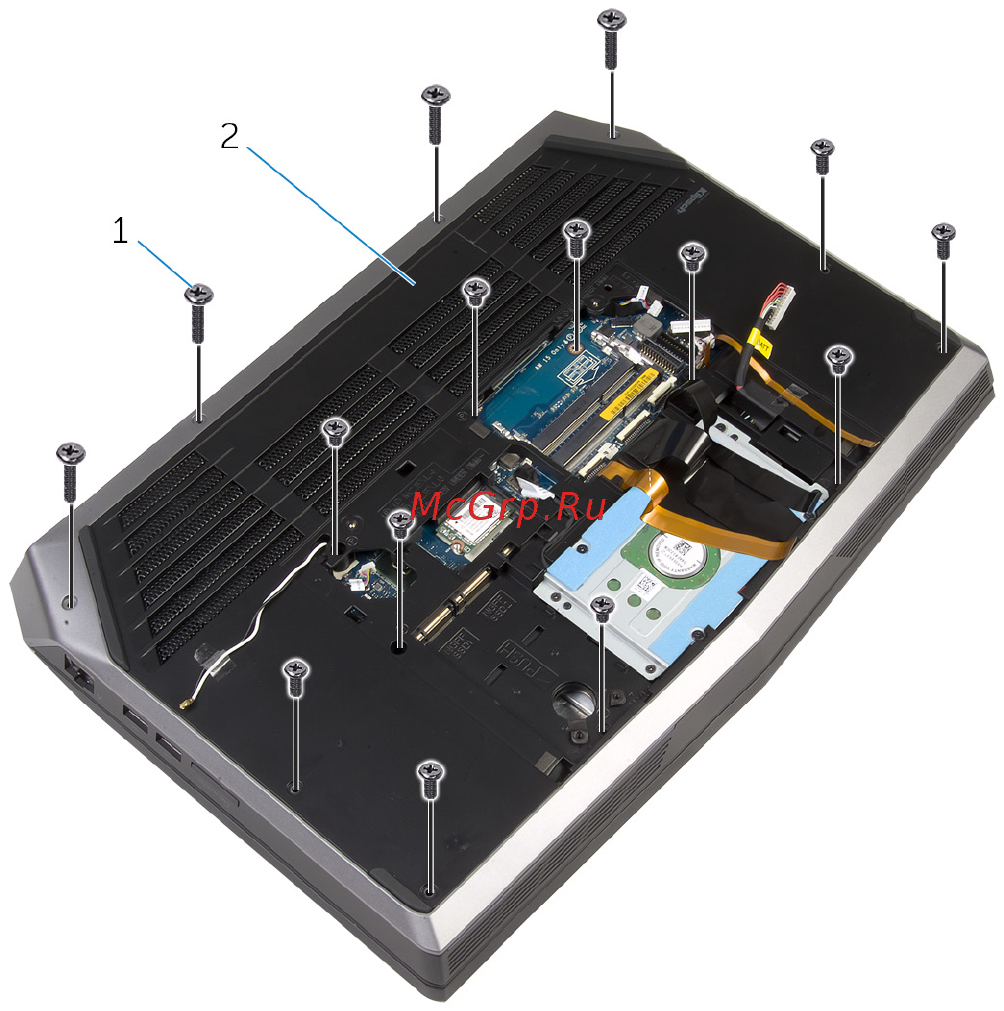

3 Remove the screws that secure the palm-rest assembly to the computer
base.
1 screws (15) 2 computer base
4 Turn the computer over and open the display as far as possible.
5 Lift the computer base and rest the display on a clean and flat surface.
38
