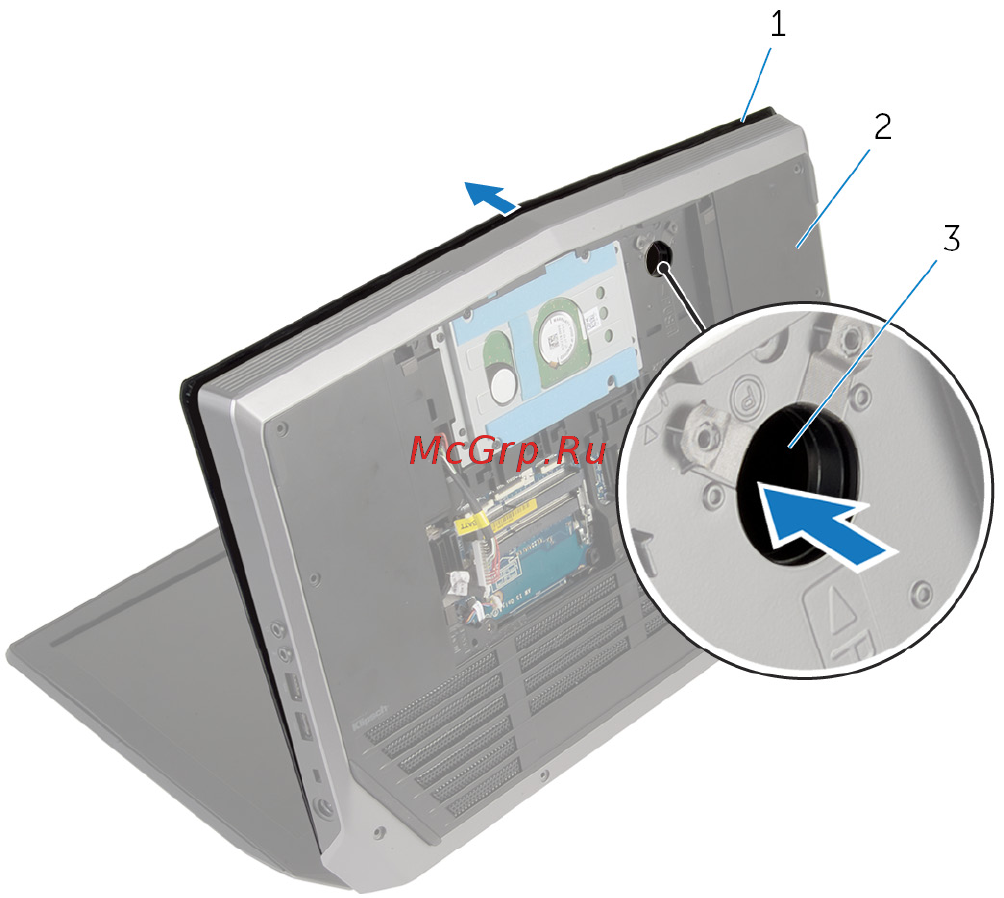

6 Push the palm-rest assembly from the release hole to release it from the
tabs on the computer base.
1 palm-rest assembly 2 computer base
3 release hole
7 Place the computer in an upright position.
8 Using a plastic scribe, pry up along the edges of the palm-rest assembly.
39
