Dell alienware 15, a15-6366 Инструкция по эксплуатации онлайн [45/149] 152455
![Dell alienware 15, a15-6366 Инструкция по эксплуатации онлайн [45/149] 152455](/views2/1166679/page45/bg2d.png)

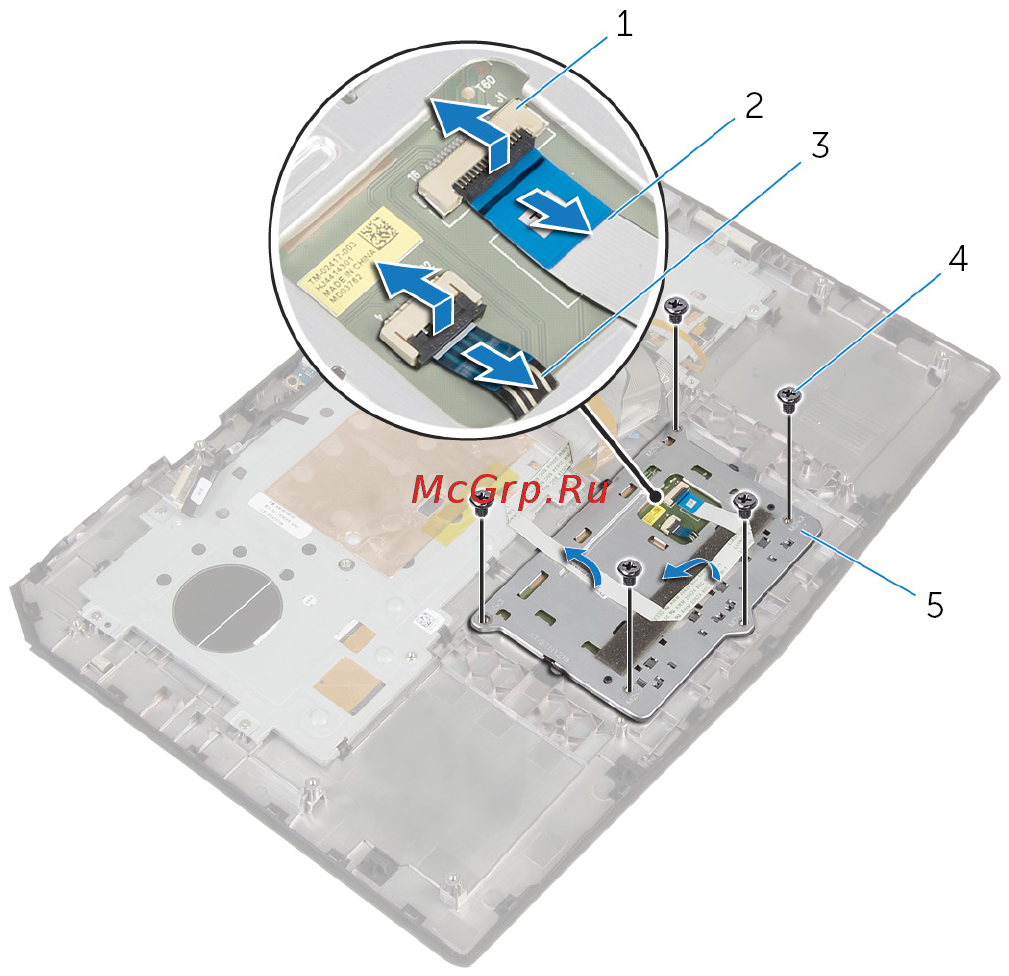

3 Remove the screws that secure the touch-pad bracket to the palm-rest
assembly.
1 latches (2) 2 touch-pad cable
3 touch-pad buttons cable 4 screws (5)
5 touch-pad bracket
45
