Dell alienware 15, a15-6366 Инструкция по эксплуатации онлайн [46/149] 152455
![Dell alienware 15, a15-6366 Инструкция по эксплуатации онлайн [46/149] 152455](/views2/1166679/page46/bg2e.png)

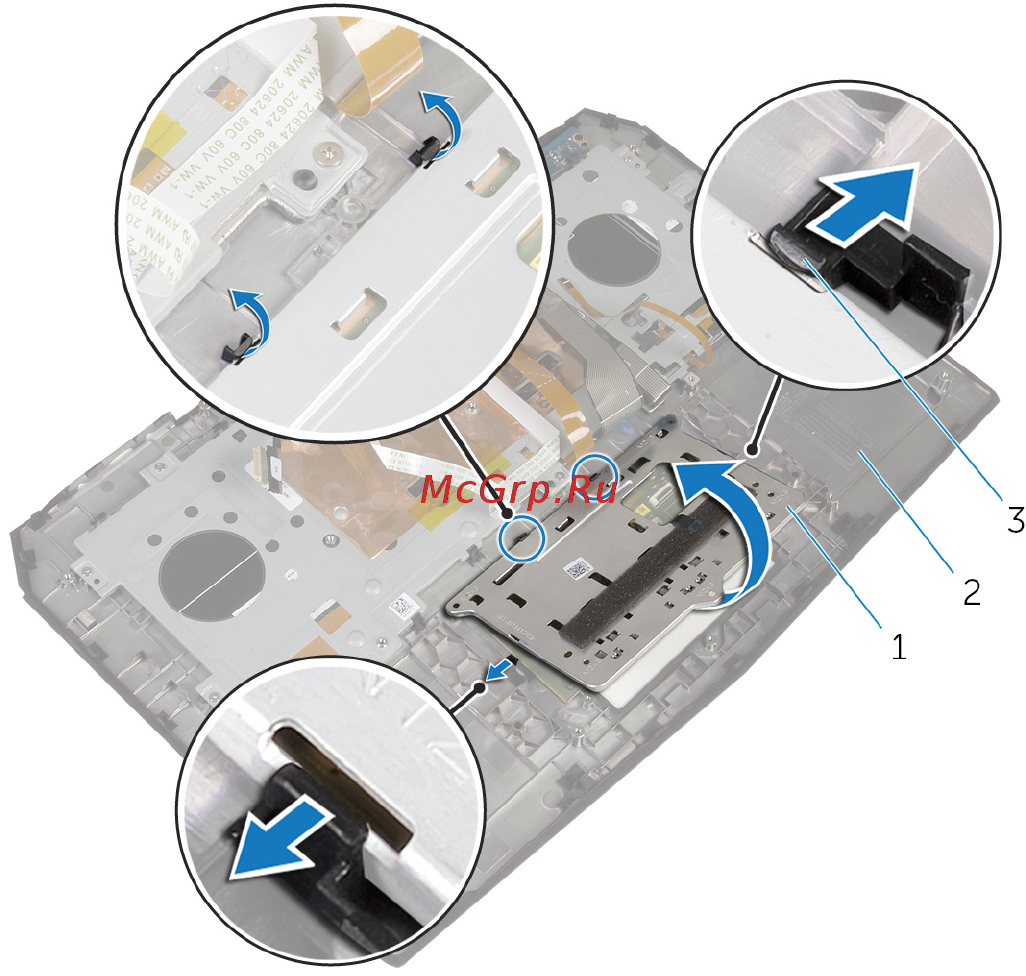

4 Release the tabs that secure the touch-pad bracket to the palm-rest
assembly and lift the touch-pad bracket off the palm-rest assembly.
1 touch-pad bracket 2 palm-rest assembly
3 tabs (4)
46
