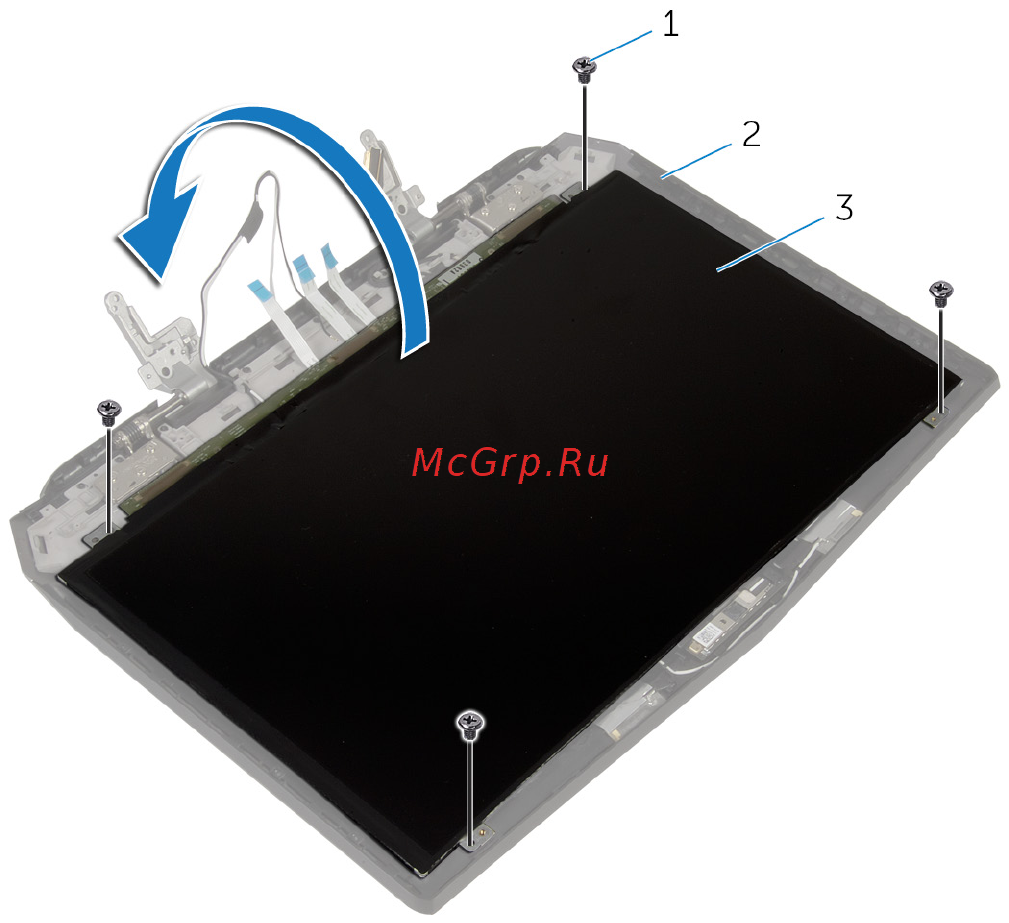

2 Gently lift the display panel and turn it over.
1 screws (4) 2 display back-cover
3 display panel
3 Lift the latch and disconnect the display cable from the display panel.
89
