Dell alienware 15, a15-6366 Инструкция по эксплуатации онлайн [90/149] 152455
![Dell alienware 15, a15-6366 Инструкция по эксплуатации онлайн [90/149] 152455](/views2/1166679/page90/bg5a.png)

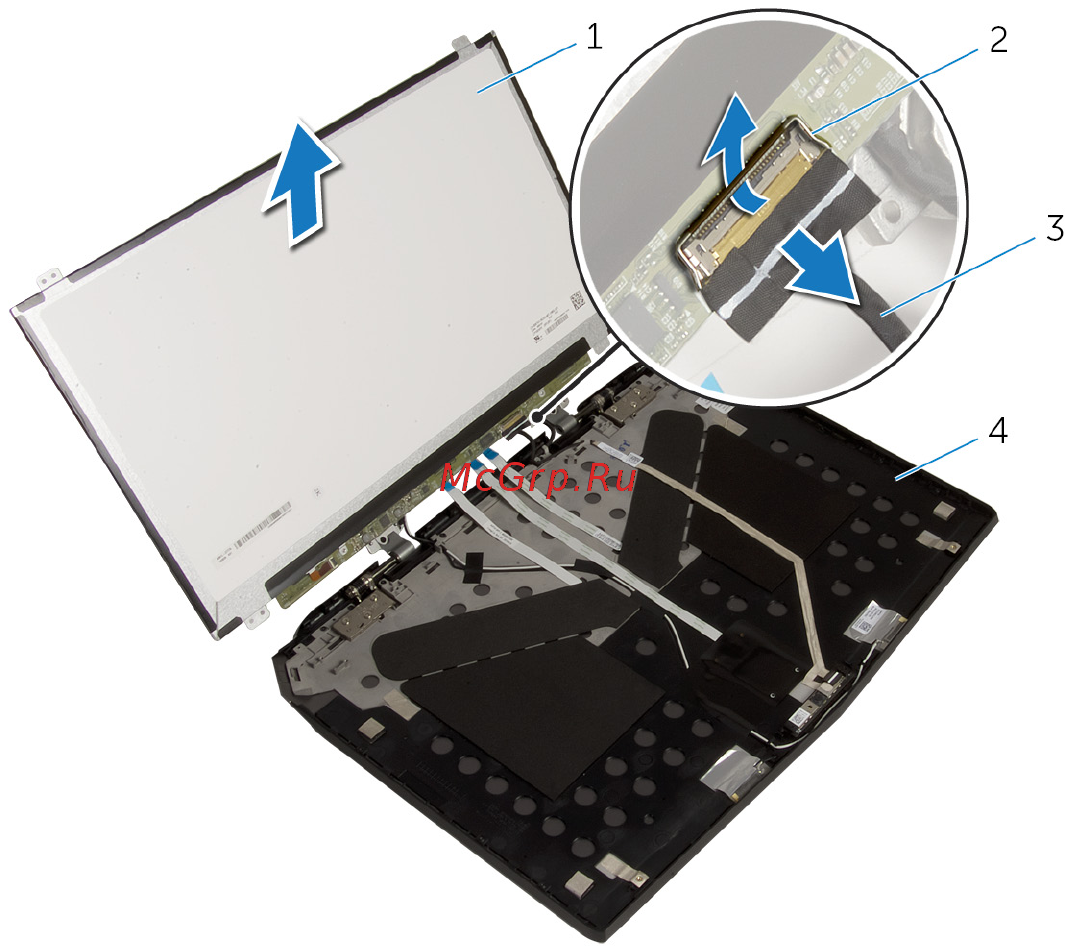

4 Lift the display panel off the display back-cover.
1 display panel 2 latch
3 display cable 4 display back-cover
90
