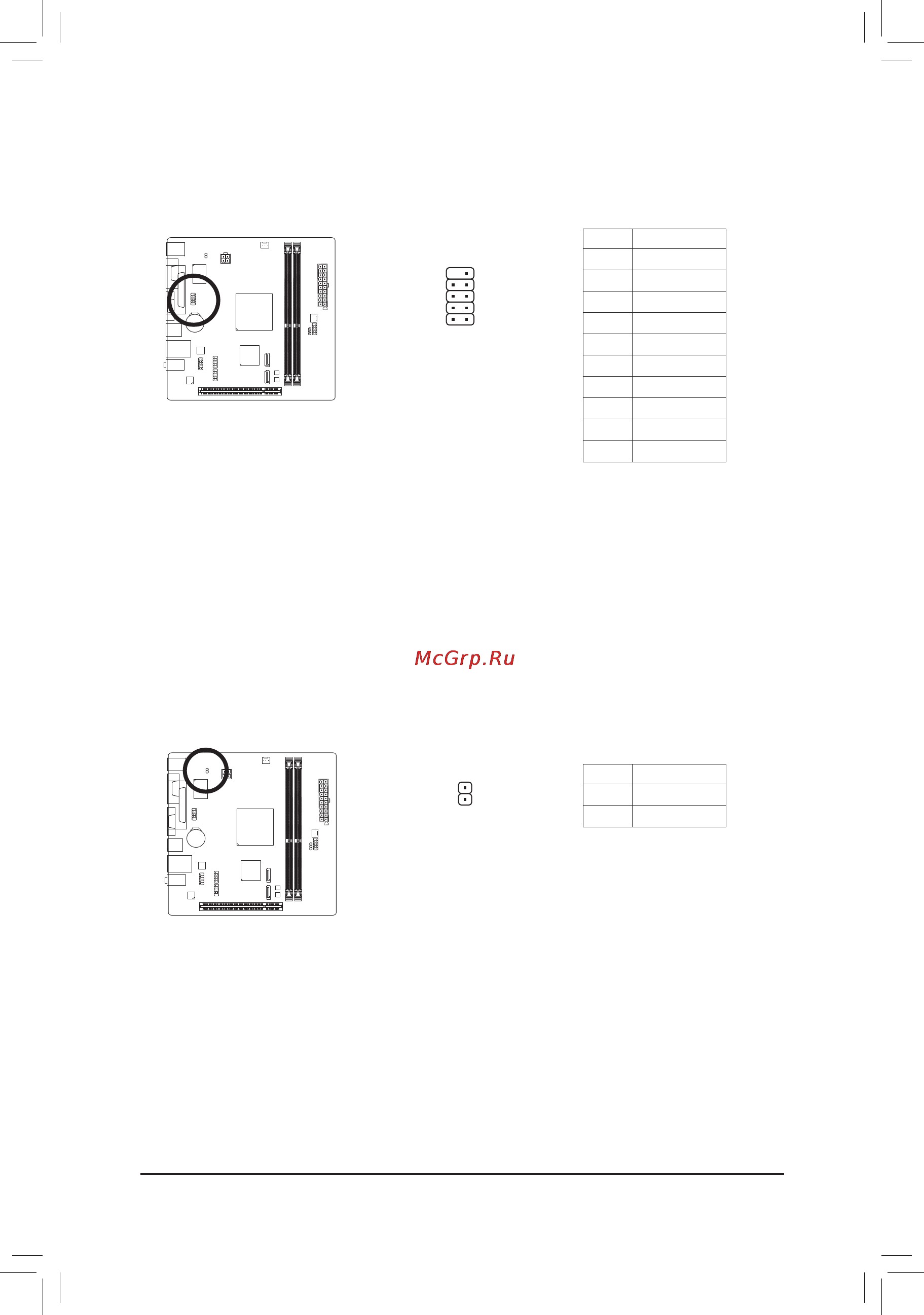

- 21 -

Hardware Installation

11) COMB (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the op-

tional COM port cable, please contact the local dealer.

PinNo. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

12) CI (Chassis Intrusion Header)

This motherboard provides a chassis detection feature that detects if the chassis cover has been re-

moved. This function requires a chassis with chassis intrusion detection design.

PinNo. Denition

1 Signal

2 GND
