- 45 -

Drivers Installation

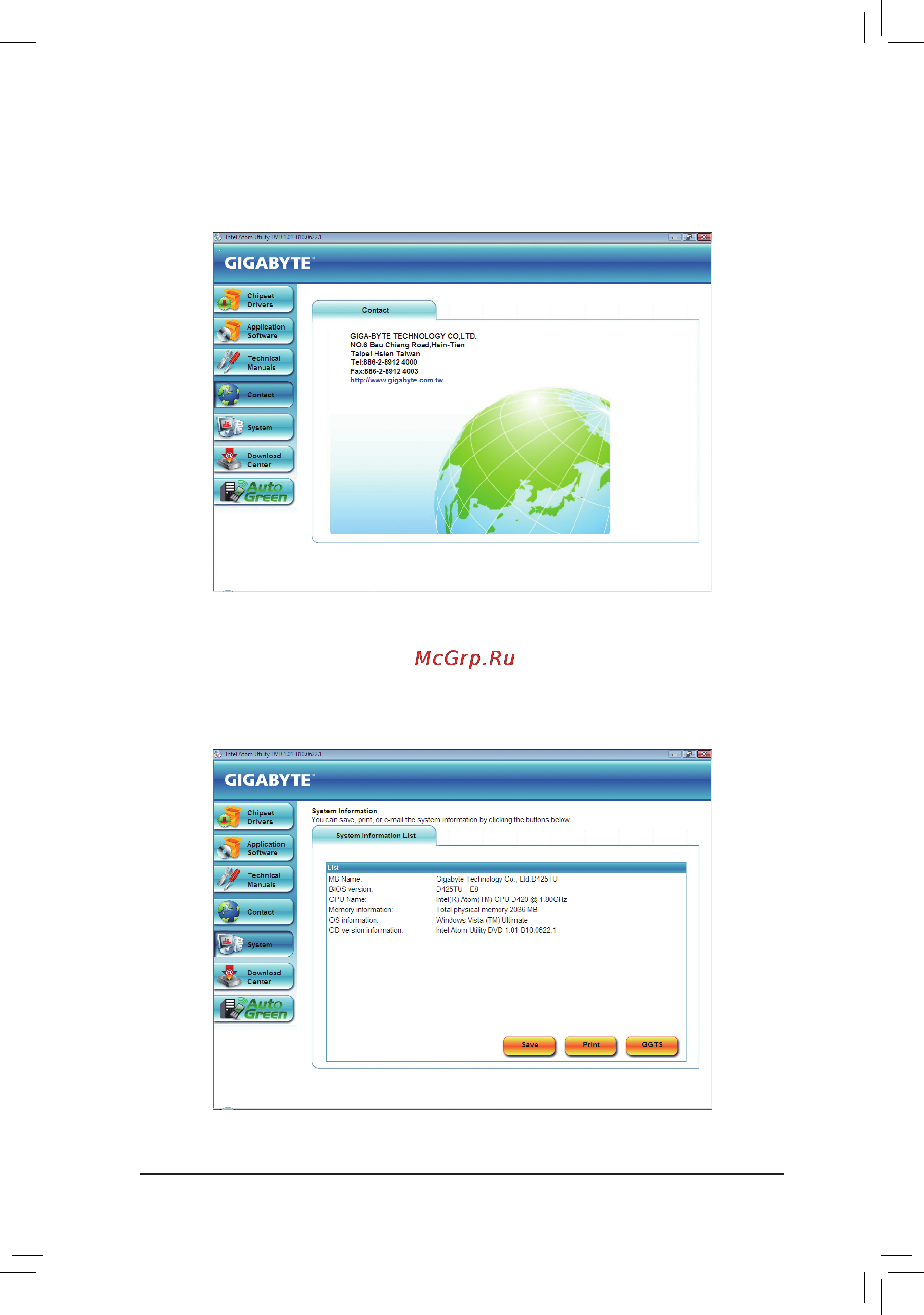

3-4 Contact

ForthedetailedcontactinformationoftheGIGABYTETaiwanheadquarterorworldwidebranchofces,click

the URL on this page to link to the GIGABYTE website.

3-5 System

This page provides the basic system information.
