Инструкция по эксплуатации Страница: 10

HP dl160gen8 [10/109] Dimm slots

Component identification 10

Item Description

Fan connector 6

Fan connector 5

8-pin power connector

Fan connector 4

SD card slot

Fan connector 3

24-pin power connector

Fan connector 2

System battery

FlexibleLOM standby power connector

4-pin power connector

Redundant power supply connector

Discovery service connector

Processor socket 2

Processor 2 DIMM slots

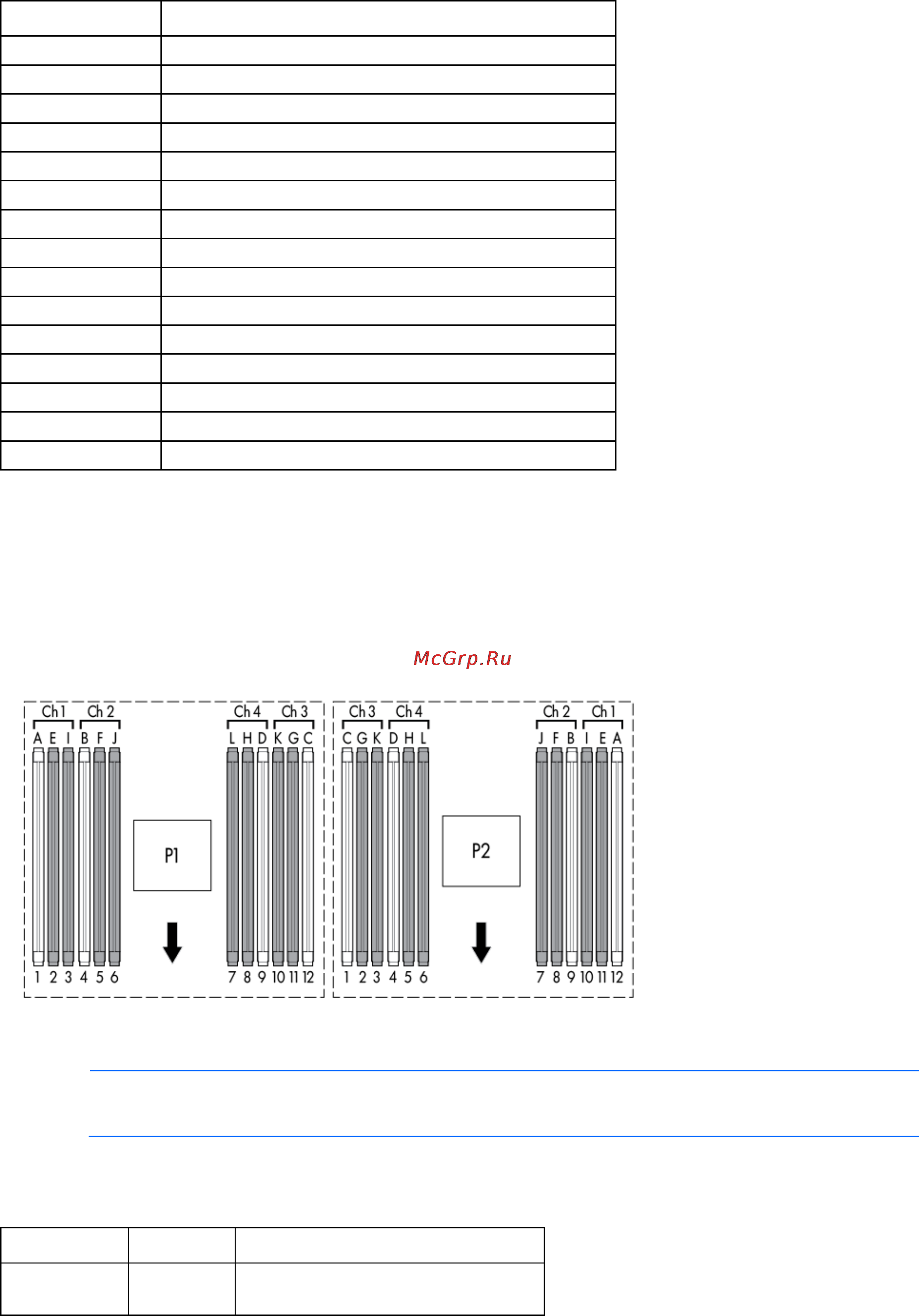

DIMM slots

DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the

letter assignments for population guidelines.

NOTE: For proper orientation, the arrows indicate the front of the server.

System maintenance switch

Position Default Function

Off Off = iLO security is enabled

On = iLO security is disabled

Содержание

Abstract 1
Hp proliant dl160 gen8 server user guide 1
Notice 2
Contents 3
Component identification 6
Front panel components 6
Item item description 6
Front panel leds and buttons 7
Item description status 7
Description 8
Item description status 8
Rear panel components 8
Rear panel leds and buttons 8
Item description 9
System board components 9
Dimm slots 10
Dimm slots are numbered sequentially 1 through 12 for each processor the supported amp modes use the letter assignments for population guidelines 10
Item description 10
Note note for proper orientation the arrows indicate the front of the server 10
Position default function 10
System maintenance switch 10
Caution caution clearing cmos and or nvram deletes configuration information be sure to properly configure the server or data loss could occur 11
Drive numbering 11
For additional information see the hp website http h20000 www2 hp com bc docs support supportmanual c00797875 c00797875 pdf 11
Lff configuration 11
Nmi header 11
Position default function 11
Sff configuration 11
Systems running microsoft windows experience a blue screen trap when the os crashes when this happens microsoft recommends that system administrators perform an nmi event by temporarily shorting the nmi header with a jumper the nmi event enables a hung system to become responsive again 11
The nmi header enables administrators to perform a memory dump before performing a hard reset crash dump analysis is an essential part of eliminating potential reliability issues such as hangs or crashes in operating systems device drivers and applications many crashes can freeze a system requiring you to perform a hard reset resetting the system erases any information that supports root cause analysis 11
When the system maintenance switch position 6 is set to the on position the system is prepared to erase all system configuration settings from both cmos and nvram 11
When using the embedded smart array controller in an sff configuration only drives 1 2 3 and 4 are available 11
Drive led definitions 12
Fbwc module led definitions 12
Item led status definition 12
The fbwc module has three single color leds one amber and two green the leds on the cache module installed on a storage controller are duplicated on the reverse side of the module to facilitate status viewing 12
Amber 1 amber 2 green 3 green interpretation 13
Cache module installed on a storage controller 13
Cache module installed on the system board 13
Amber 2 green 3 green interpretation 14
Fan modules 14
One processor configuration 14
Two processor configuration 14
When only one processor is installed for proper cooling make sure the fan blanks are installed in fan positions 1 2 and 5 14
When processor 2 is installed install fans in positions 2 and 5 15
Operations 16
Power down the server 16
Power up the server 16
Remove the server from the rack 16
Extend the server from the rack 17
Install the access panel 19
Remove the access panel 19
Remove the security bezel optional 19
Disconnect each power cord from the power source 20
Disconnect each power cord from the server 20
Do one of the following 20
Extend the server from the rack on page 17 20
Install the processor air baffle 20
Place the air baffle over the system board 20
Power down the server on page 16 20
Press the locking latch the access panel slides to a closed position 20
Push down the air baffle 20
Remove all power 20
Remove the access panel on page 19 20
Remove the processor air baffle 20
Remove the server from the rack on page 16 20
Use a t 15 torx screwdriver to tighten the security screw on the locking latch 20
Remove the pci riser cage 21
Install the pci riser cage 22
Connect each power cord to the power source 23
Power up the server on page 16 23
Optimum environment 24
Optional installation services 24
Rack planning resources 24
Space and airflow requirements 25
Temperature requirements 25
Electrical grounding requirements 26
Power requirements 26
Server warnings and cautions 26
Rack warnings 27
Identifying the contents of the server shipping carton 28
Installing hardware options 28
Installing the server into the rack 28
Installing the operating system 29
Powering on and selecting boot options 30
Registering the server 30
Drive options 31
Hardware options installation 31
Introduction 31
Security bezel option 31
Drive installation guidelines 32
Installing a hot plug drive 32
Installing a non hot plug drive 33
Installing the 700 mm mini sas cable 34
Mini sas cable option 34
Connect each power cord to the power source 35
Connect each power cord to the server 35
Connect the mini sas cable from the storage controller to the drive backplane 35
Disconnect each power cord from the power source 35
Disconnect each power cord from the server 35
Do one of the following 35
Extend the server from the rack on page 17 35
Install an optional p822 smart array controller 35
Install the access panel on page 19 35
Install the pci riser cage on page 22 35
Install the processor air baffle on page 20 35
Installing the 800 mm mini sas cable 35
Power down the server on page 16 35
Power up the server on page 16 35
Remove all power 35
Remove the access panel on page 19 35
Remove the processor air baffle on page 20 35
Remove the server from the rack on page 16 35
Slide the server into the rack 35
Connect each power cord to the power source 36
Connect each power cord to the server 36
Connect the mini sas cable from the smart array controller to the hard drive backplane 36
Disconnect each power cord from the power source 36
Disconnect each power cord from the server 36
Do one of the following 36
Extend the server from the rack on page 17 36
Install the access panel on page 19 36
Install the processor air baffle on page 20 36
Power down the server on page 16 36
Power up the server on page 16 36
Remove all power 36
Remove the access panel on page 19 36
Remove the processor air baffle on page 20 36
Remove the server from the rack on page 16 36
Slide the server into the rack 36
Vga power cable option 36
Connect each power cord to the power source 37
Connect each power cord to the server 37
Install the access panel on page 19 37
Install the processor air baffle on page 20 37
Power up the server on page 16 37
Remove the adhesive stickers from the vga cable clips and then attach the clips onto the fan cage 37
Route the cable through the cable clips and then connect the cable to the vga card and power supply cable 37
Slide the server into the rack 37
Controller options 38
Installing a storage controller 38
Installing the fbwc module and capacitor pack 39
Connect each power cord to the power source 41
Connect each power cord to the server 41
Insert the cable end of the capacitor pack into the holder 41
Install the access panel on page 19 41
Install the capacitor pack 41
Install the processor air baffle on page 20 41
Power up the server on page 16 41
Press the opposite end of the capacitor pack into the holder 41
Route the capacitor pack cable towards the front of the chassis 41
Slide the server into the rack 41
When using a smart array controller expansion board install the cache module on the storage controller and then install the controller into the pci riser cage install the pci riser cage on page 22 41
Optical drive option 42
If you have an sff configuration do the following 43
Sff configuration 43
Using the t 10 screw from the optical drive kit and a t 10 t 15 torx screwdriver install the drive 43
Connect the cable from the rear of the drive to the sata dvd rom drive connector on the system board use cable hp part number 663771 001 to connect to the drive connect the blue and black end of the cable to the optical drive connect the longer blue end to the sata connector on the system board and the short black cable to the power connector 44
If you have a lff configuration do the following 44
Route the cable through the drive bay and then connect the cable to the rear of the optical drive 44
Memory options 45
All types are referred to as dimms when the information applies to all types when specified as lrdimm rdimm or udimm the information applies to that type only all memory installed in the server must be the same type 46
Depending on the processor model the number of dimms installed and whether lrdimms udimms or rdimms are installed the memory clock speed can be reduced to 1333 or 1066 mt s 46
Important this server does not support mixing lrdimms rdimms or udimms attempting to mix any combination of these dimms can cause the server to halt during bios initialization 46
Lrdimms support higher densities than single and dual rank rdimms and higher speeds than quad rank rdimms this support enables you to install more high capacity dimms resulting in higher system capacities and higher bandwidth 46
Populated dimm speed mt s dimm type dimm rank 1 dimm per channel 2 dimms per channel 3 dimms per channel 46
Quad rank pc3l 10600 ddr3 1333 lrdimms operating as dual rank dimms at up to 1333 mt s 46
Rdimms offer larger capacities than udimms and include address parity protection 46
Single and dual rank pc3 10600 ddr 1333 rdimms operating at up to 1333 mt s 46
Single and dual rank pc3 10600 ddr 1333 udimms operating at up to 1333 mt s 46
Single and dual rank pc3 12800 ddr 1600 rdimms operating at up to 1600 mt s 46
Speed voltage and capacity dimm type dimm rank dimm capacity native speed mt s voltage 46
The memory subsystem in this server can support lrdimms rdimms or udimms 46
The server supports the following dimm speeds 46
Udimms represent the most basic type of memory module and offer lower latency in one dimm per channel configurations and relatively low power consumption but are limited in capacity 46
Certain performance features are unique with hp smartmemory hp smartmemory 1 5v ddr3 1333 registered memory is engineered to achieve the same performance level as 1 v memory for example while the industry supports ddr3 1333 rdimm at 1 v this gen8 server supports ddr3 1333 rdimm up to 3 dimms per channel at 1066 mt s running at 1 5v this equates to up to 20 less power at the dimm level with no performance penalty in addition the industry supports udimm at 2 dimms per channel at 1066 mt s hp smartmemory supports 2 dimms per channel at 1333 mt s or 25 greater bandwidth 47
Dimm identification 47
Hp smartmemory 47
Hp smartmemory introduced for gen8 servers authenticates and unlocks certain features available only on hp qualified memory and verifies whether installed memory has passed hp qualification and test processes qualified memory is performance tuned for hp proliant and bladesystem servers and provides future enhanced support through hp active health and manageability software 47
Item item description definition 47
To determine dimm characteristics use the label attached to the dimm and the following illustration and table 47
Memory protection modes 48
Memory subsystem architecture 48
Single dual and quad rank dimms 48
Advanced ecc 49
General dimm slot population guidelines 49
Lockstep memory configuration 49
Memory population guidelines 49
Online spare memory 49
Advanced ecc population guidelines 50
Lockstep memory population guidelines 50
Online spare population guidelines 50
Installing a dimm 51
Population order 51
Processor and fan module option 52
Open each of the processor locking levers in the order indicated and then open the processor retaining bracket 53
Remove the clear processor socket cover retain the processor socket cover for future use 53
Press and hold the processor retaining bracket in place and then close each processor locking lever press only in the area indicated on the processor retaining bracket 55
Remove the adhesive tape from the slot and then install the heatsink 55
Remove the thermal interface protective cover from the heatsink 55
Tighten one pair of diagonally opposite screws halfway and then tighten the other pair of screws 55
Using the guide pin on the processor backplate position the heatsink 55
Finish the installation by completely tightening the screws in the same sequence 56
Locate fan slots 2 and 5 56
Note note dual processor configurations require seven fans 56
Remove the fan blanks from slots 2 and 5 56
Installing the front video adapter cable 57
Hp trusted platform module option 58
Installing the trusted platform module board 59
Enabling the trusted platform module 60
Expansion board options 61
Installing an expansion board 61
Retaining the recovery key password 61
Flexiblelom option 63
Common slot power supply option 64
Be sure that the power supply led is green 66
Connect the power cord to the power source 66
Connect the power cord to the power supply 66
Use the strain relief clip to secure the power cord and then route the power cord through the cable management solution 66
Cabling 67
Cabling overview 67
Drive cabling 67
Lff drive cabling 67
Cable number cable number description 68
Lff drive cage connected to an embedded smart array controller 68
Lff drive cage connected to smart array controller card in a full height slot 68
Cable number cable number description 69
Sff drive cabling 69
Sff drive cage connected to an embedded smart array controller 69
Sff drive cage connected to smart array controller card in a full height slot 69
Sff drive cage connected to smart array controller card in low profile slot 69
Basic configuration 70
Cable number cable number description 70
In this configuration the embedded smart array controller can only support up to four sata drives 70
Power cabling 70
Server power cabling 70
Cable number cable number description 71
Cable number description 71
Maximum configuration 71
Cable number description 72
Fbwc capacitor pack cabling 72
Front panel cabling 72
Internal usb cabling 73
For more information about product features specifications options configurations and compatibility see the product quickspecs on the hp product bulletin website http www hp com go productbulletin 74
Hp ilo 74
Hp ilo management engine 74
Hp product quickspecs 74
Server mode 74
Software and configuration utilities 74
The hp ilo management engine is a set of embedded management features supporting the complete lifecycle of the server from initial deployment through ongoing management 74
The ilo subsystem is a standard component of selected hp proliant servers that simplifies initial server setup server health monitoring power and thermal optimization and remote server administration the ilo subsystem includes an intelligent microprocessor secure memory and a dedicated network interface this design makes ilo independent of the host server and its operating system 74
The software and configuration utilities presented in this section operate in online mode offline mode or in both modes software or configuration utility server mode 74
Active health system 75
Integrated management log 76
Intelligent provisioning 76
Erase utility 77
Hp insight diagnostics 77
Hp insight diagnostics survey functionality 77
Hp insight remote support software 78
Hp service pack for proliant 78
Scripting toolkit 78
Hp rom based setup utility 79
Hp smart update manager 79
Auto configuration process 80
Using rbsu 80
Boot options 81
Configuring amp modes 81
Re entering the server serial number and product id 81
Array configuration utility 82
Utilities and features 82
Automatic server recovery 83
Option rom configuration for arrays 83
Rompaq utility 83
Usb support 83
Drivers 84
Keeping the system current 84
Redundant rom support 84
Safety and security benefits 84
Change control and proactive notification 85
Hp operating systems and virtualization software support for proliant servers 85
Software and firmware 85
Version control 85
Troubleshooting 86
Troubleshooting resources 86
System battery replacement 87
Regulatory information 89
Safety and regulatory compliance 89
Turkey rohs material content declaration 89
Ukraine rohs material content declaration 89
Warranty information 89
Electrostatic discharge 90
Grounding methods to prevent electrostatic discharge 90
Preventing electrostatic discharge 90
Depending on installed options the server is configured with one of the following power supplies 91
Environmental specifications 91
Hp 460 w cs power supply 94 specifications 91
Hp 500 w multi output power supply specifications 91
Hp 750 w cs power supply 94 specifications 91
Hp 750 w dc cs power supply 94 specifications 91
Power supply specifications 91
Server specifications 91
Specification value 91
Specifications 91
Hp 460 w cs power supply 94 specifications 92
Hp 500 w multi output power supply specifications 92
Hp 750 w cs power supply 94 specifications 92
Specification value 92
Caution this equipment is designed to permit the connection of the earthed conductor of the dc supply circuit to the earthing conductor at the equipment if this connection is made all of the following must be met 93
Hp 750 w dc cs he power supply 94 efficiency 93
Specification value 93
This equipment must be connected directly to the dc supply system earthing electrode conductor or to a bonding jumper from an earthing terminal bar or bus to which the dc supply system earthing electrode conductor is connected 93
This equipment must be located in the same immediate area such as adjacent cabinets as any other equipment that has a connection between the earthed conductor of the same dc supply circuit and the earthing conductor and also the point of earthing of the dc system the dc 93
Power supply calculations 94
Before you contact hp 95
Customer self repair 95
Hp contact information 95
Support and other resources 95
