Инструкция по эксплуатации Страница: 43

HP dl160gen8 [43/109] If you have an sff configuration do the following

Hardware options installation 43

SFF configuration

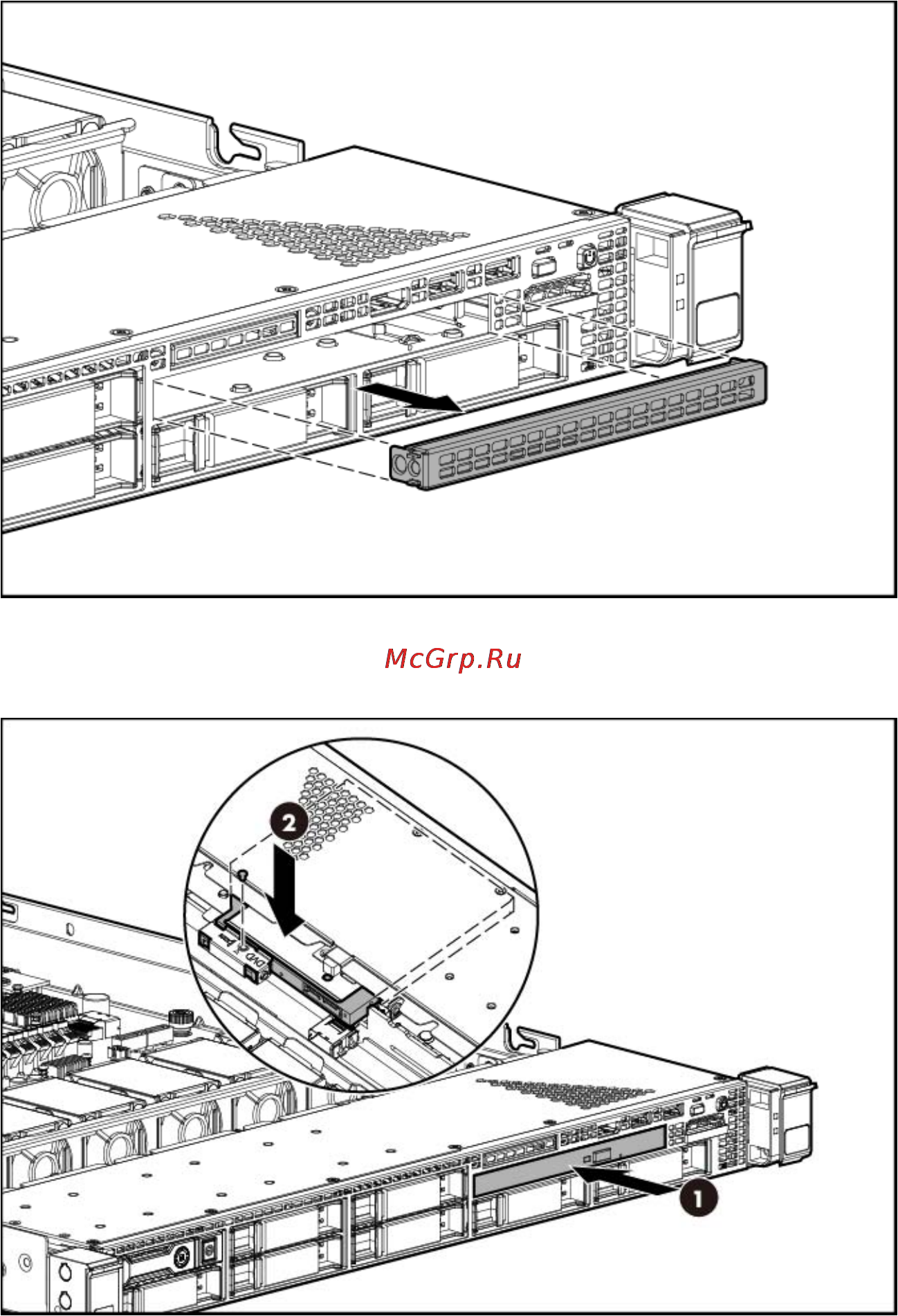

8. If you have an SFF configuration, do the following:

a. Using the T-10 screw from the optical drive kit and a T-10/T-15 Torx screwdriver, install the drive.
