HP dl160gen8 [41/109] Connect each power cord to the power source

Hardware options installation 41

When using a Smart Array controller expansion board, install the cache module on the storage

controller, and then install the controller into the PCI riser cage ("Install the PCI riser cage" on page

22).

9. Route the capacitor pack cable towards the front of the chassis.

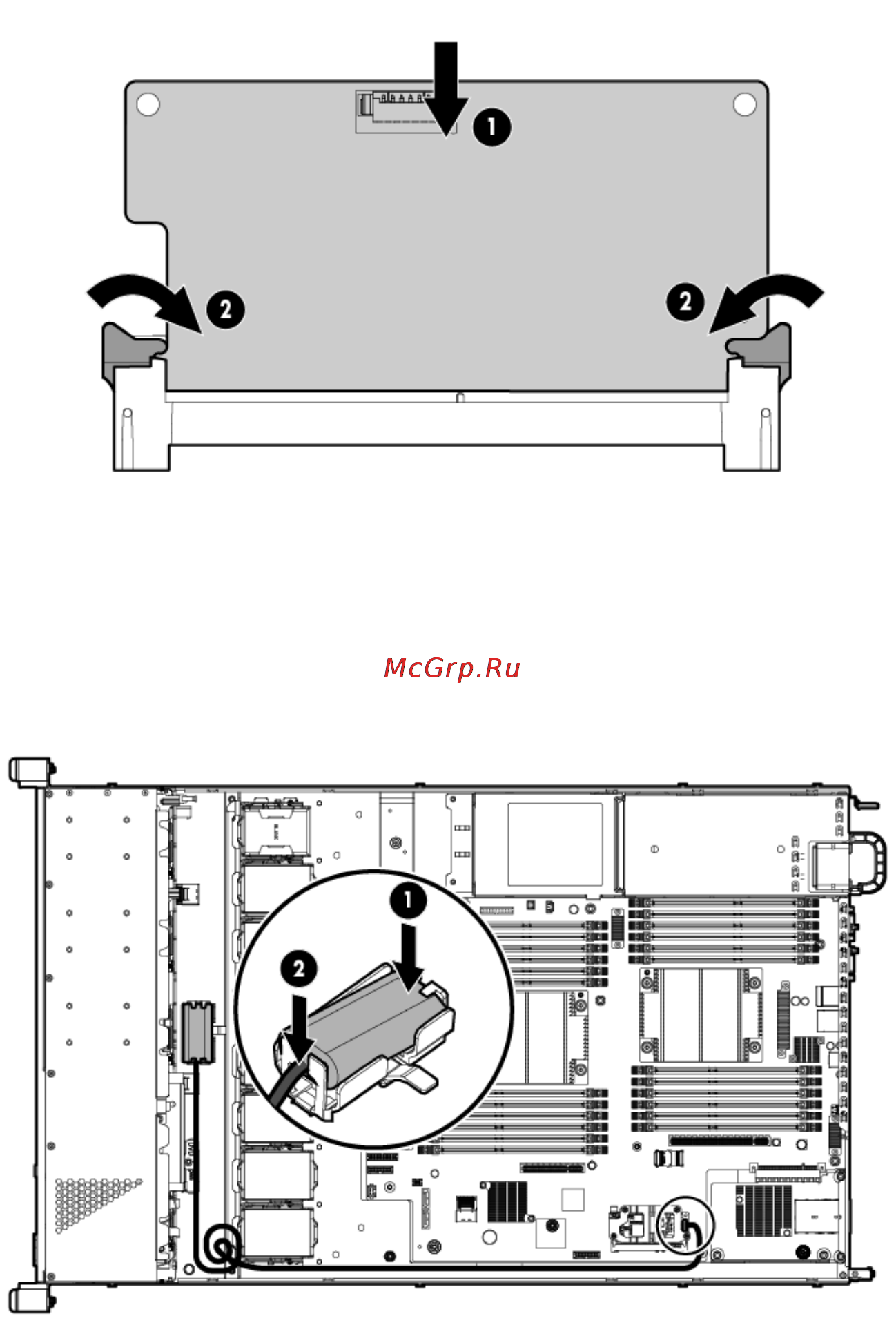

10. Install the capacitor pack:

a. Insert the cable end of the capacitor pack into the holder.

b. Press the opposite end of the capacitor pack into the holder.

11. Install the processor air baffle (on page 20).

12. Install the access panel (on page 19).

13. Slide the server into the rack.

14. Connect each power cord to the server.

15. Connect each power cord to the power source.

16. Power up the server (on page 16).
