HP dl160gen8 [14/109] Fan modules

Component identification 14

1 - Amber 2 - Green 3 - Green Interpretation

Flashing 2 Hz

Flashing 2 Hz Off The capacitor pack is not attached.

Flashing 2 Hz

Flashing 2 Hz On The capacitor has been charging for 10 minutes, but

has not reached sufficient charge to perform a full

backup.

On Off The current backup is complete, but power fluctuations

occurred during the backup.

On On The cache module microcontroller has failed.

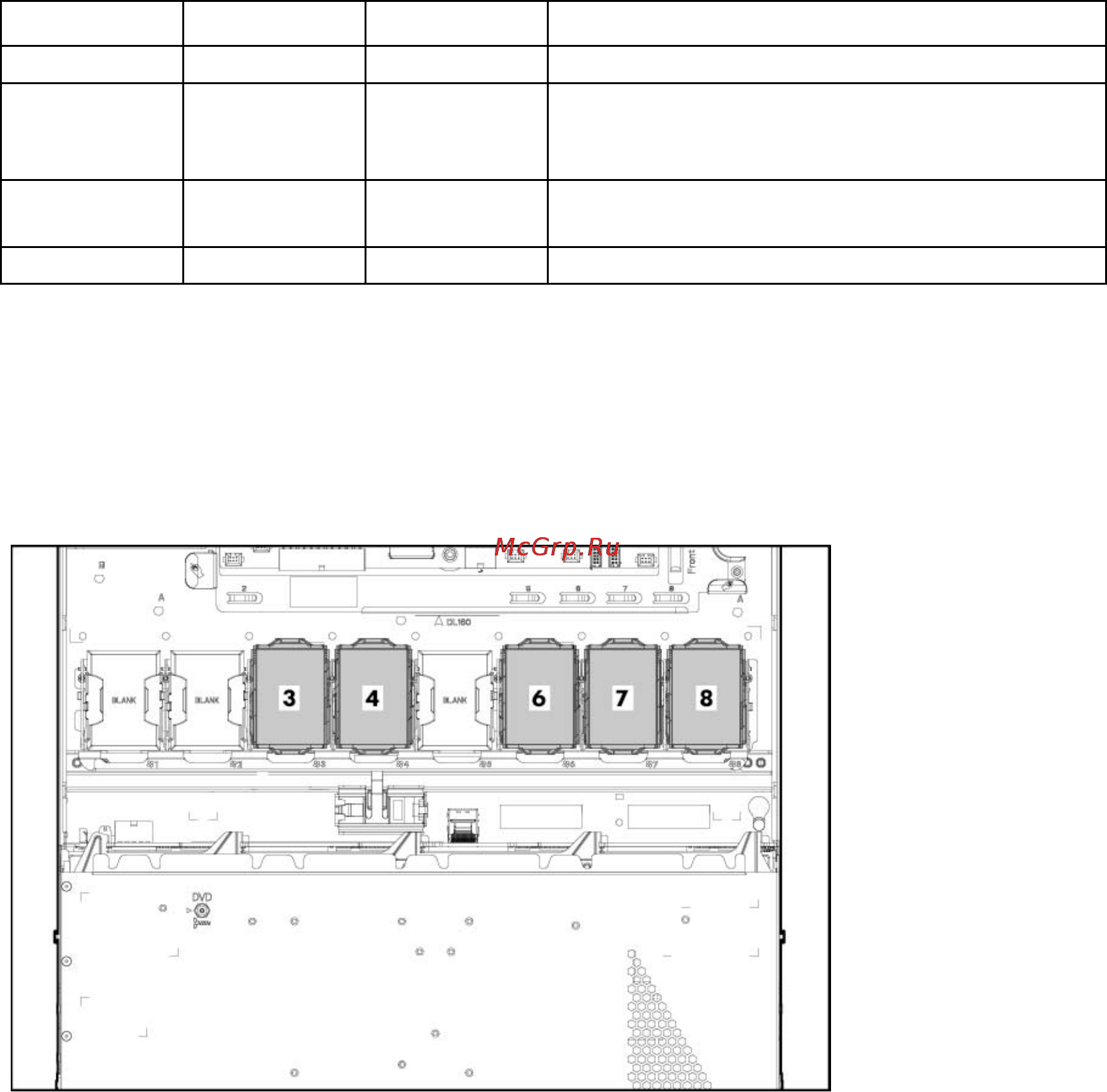

Fan modules

• One-processor configuration

When only one processor is installed, for proper cooling, make sure the fan blanks are installed in fan

positions 1, 2, and 5.

• Two-processor configuration
