Hardware options installation 42
Optical drive option
This server supports the installation of a SATA DVD-ROM optical drive or a SATA DVD-RW optical drive.
To install the component:
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 17).
o Remove the server from the rack (on page 16).
4. Remove the access panel (on page 19).
5. Remove the processor air baffle (on page 20).
6. Remove the PCI riser cage (on page 21).
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.

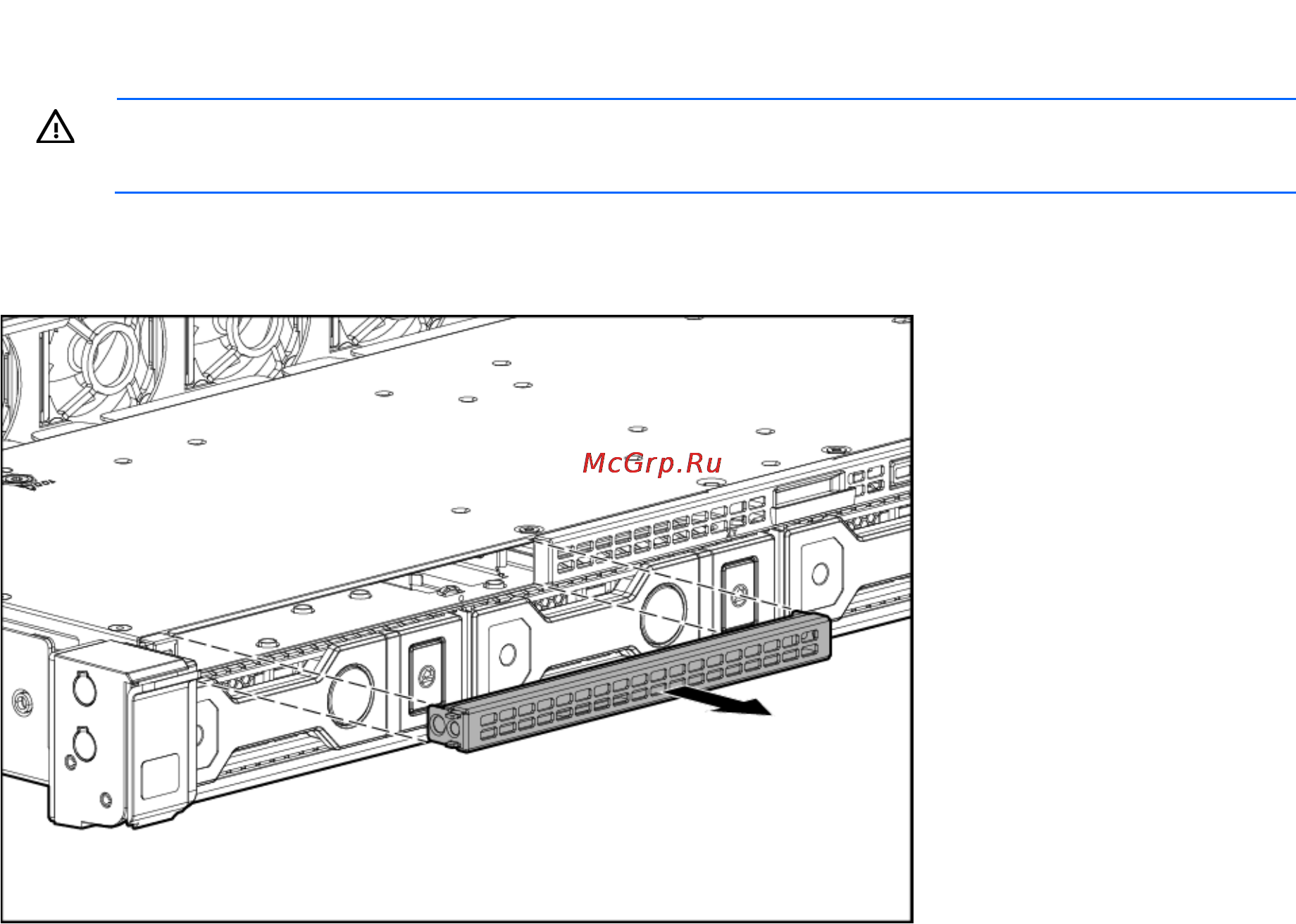

7. Remove the optical drive blank:
o LFF configuration
