Zyxel ZyWALL USG 2000 [103/150] Configure the wan trunk
![Zyxel ZyWALL USG 50 [103/150] Configure the wan trunk](/views2/1169217/page103/bg67.png)
Chapter 5 Managing Traffic
ZyWALL USG 20-2000 User’s Guide
103

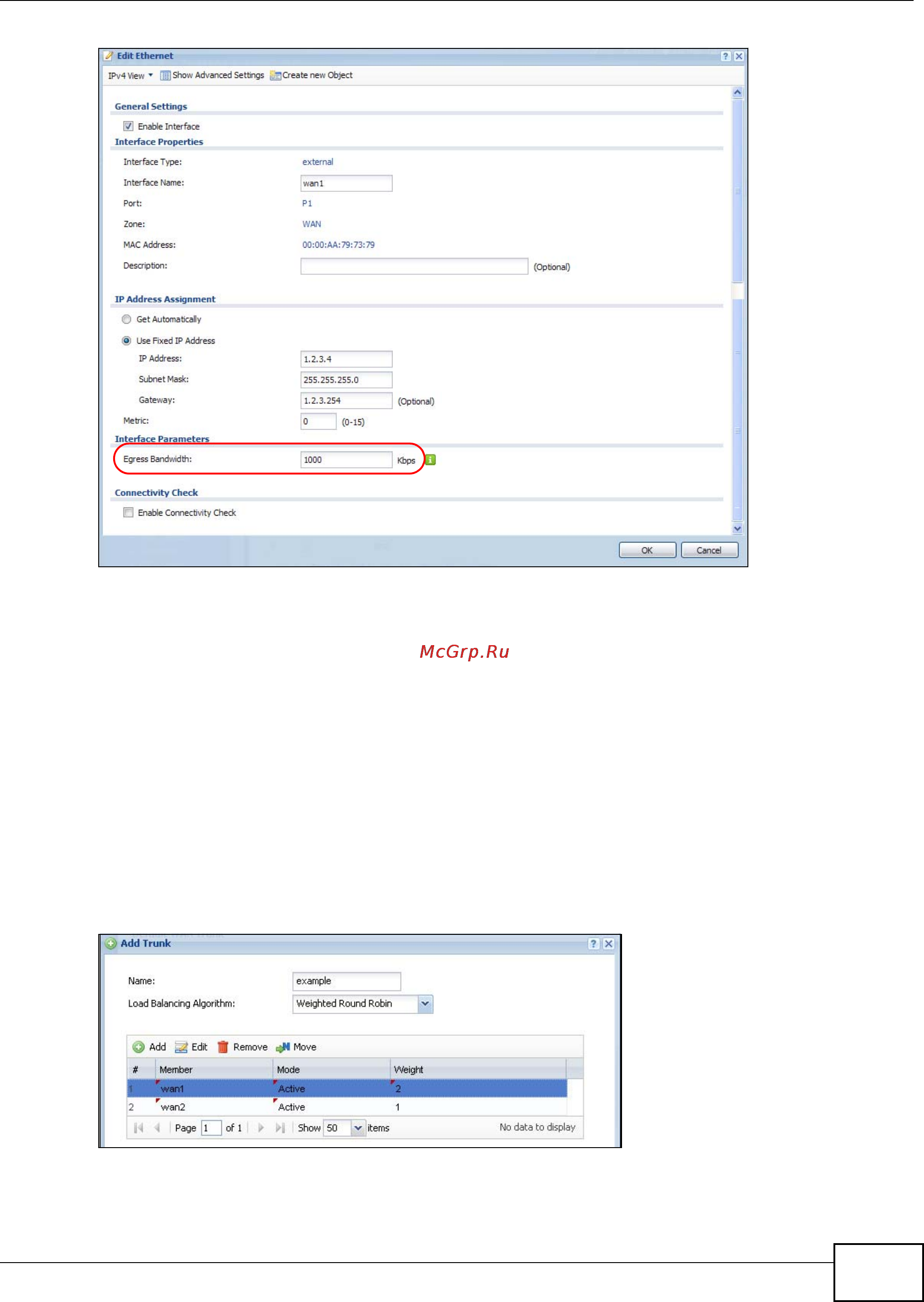

2 Repeat the process to set the egress bandwidth for wan2 to 512 Kbps.
3 For 3G interface settings, go to Configuration > Network > Interface > Cellular. Double-click
the cellular1 entry and set the egress bandwidth for cellular1 to 512 Kbps.
5.2.2 Configure the WAN Trunk
1 Click Configuration > Network > Interface > Trunk. Click the Add icon.
2 Name the trunk and set the Load Balancing Algorithm field to Weighted Round Robin.
Add wan1 and enter 2 in the Weight column.
Add wan2 (or cellular1) and enter 1 in the Weight column.
Click OK.
