Chapter 5 Managing Traffic
ZyWALL USG 20-2000 User’s Guide
120
5.8 How to Limit Web Surfing and MSN to Specific People
The following is an example of using application patrol (AppPatrol) to enforce web surfing and MSN
policies for the sales department of a company.
5.8.1 Set Up Web Surfing Policies
Before you configure any policies, you must have already subscribed for the application patrol
service. You can subscribe using the Configuration > Licensing > Registration screens or using
one of the wizards.

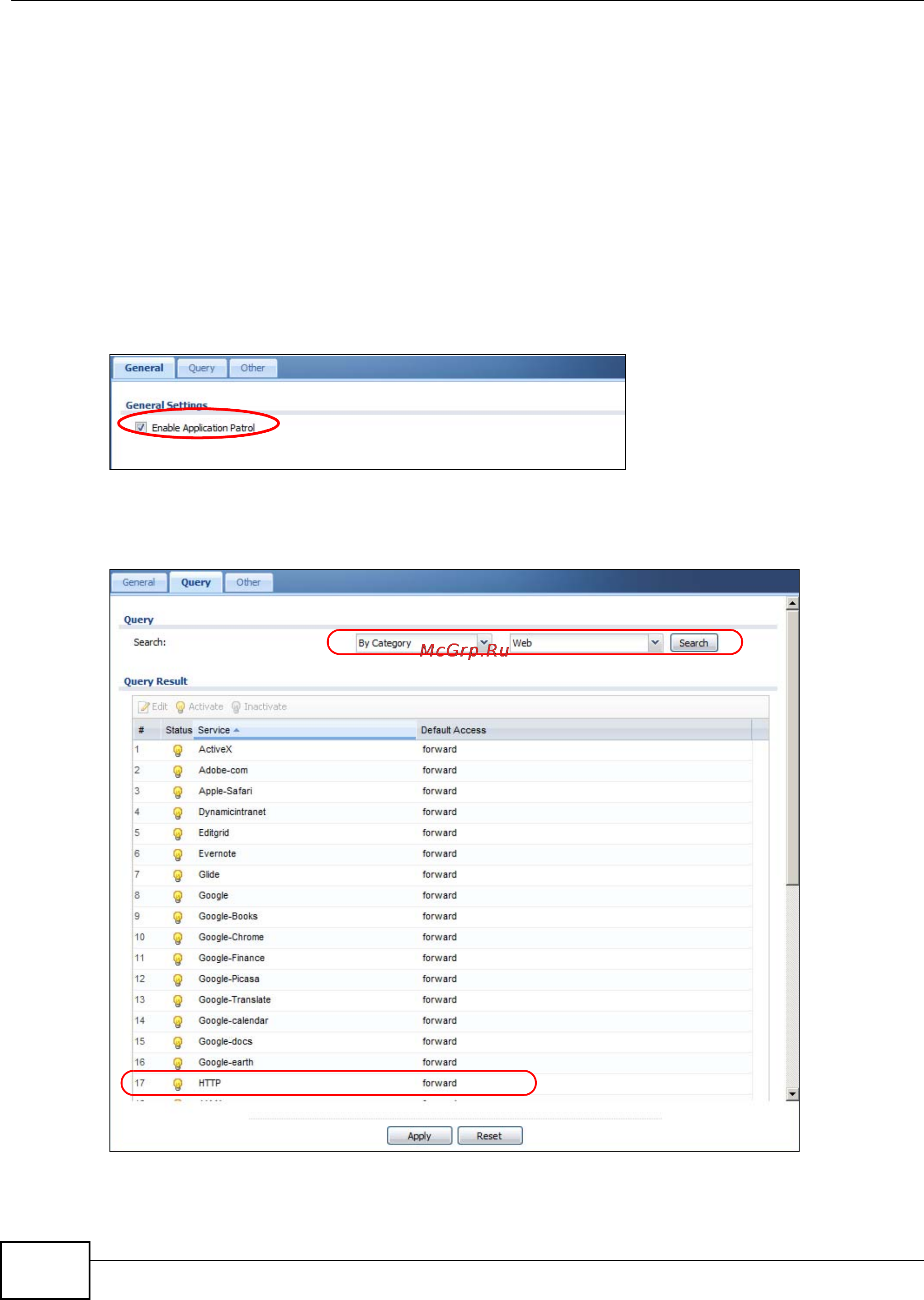

1 Click Configuration > AppPatrol. If application patrol is not enabled, enable it, and click Apply.
2 Click Configuration > AppPatrol > Query. In the first drop down menu select By Category and
in the second drop down menu select Web, then click Search. Double-click the http entry to edit
it.
3 Double-click the Default policy.
