Chapter 2 How to Set Up Your Network
ZyWALL USG 20-2000 User’s Guide
49

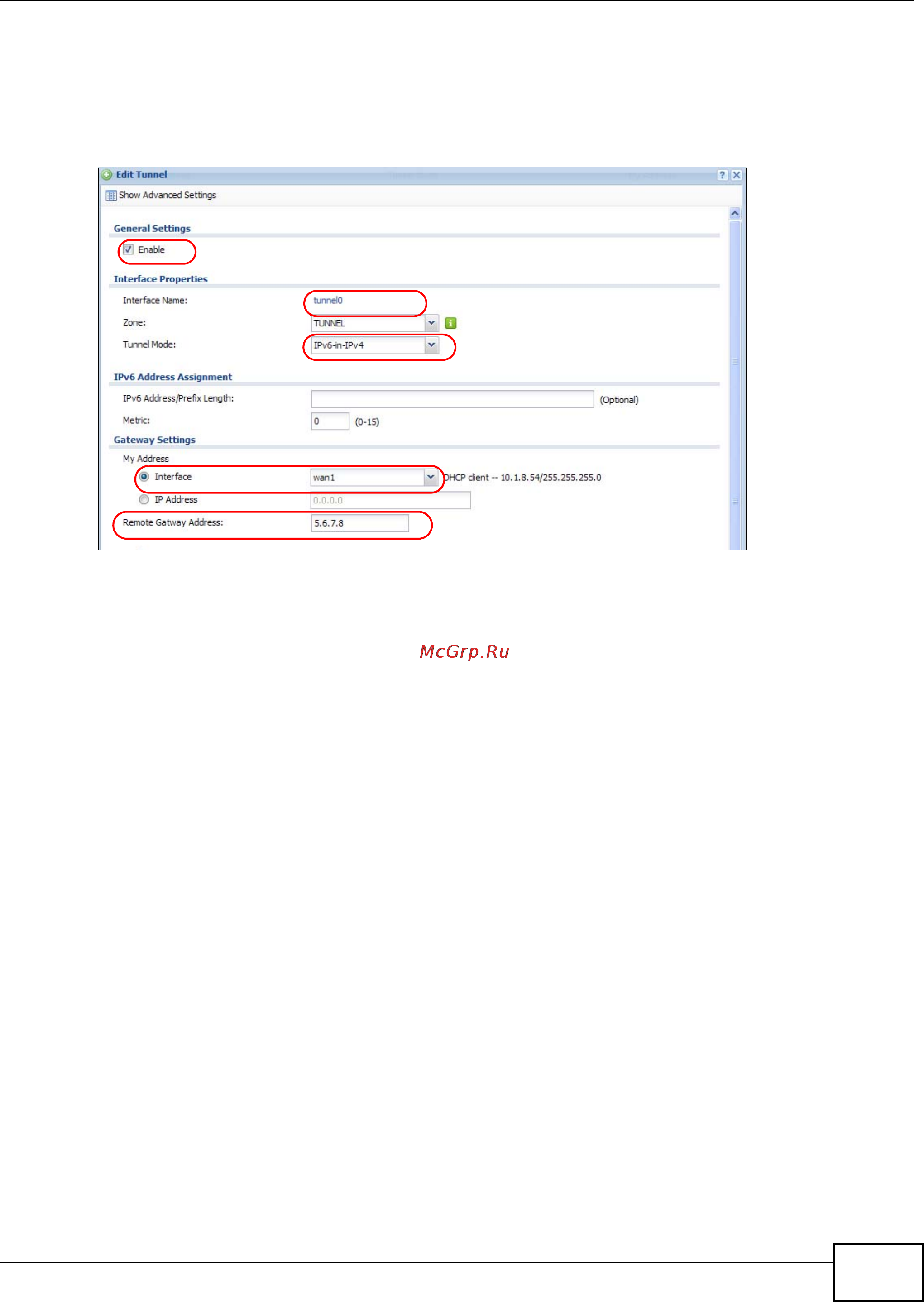

2 The Edit Tunnel screen appears. Select Enable.
Enter tunnel0 as the Interface Name and select IPv6-in-IPv4 as the Tunnel Mode.
Select wan1 in the Interface field in the Gateway Settings section.
Enter 5.6.7.8 as the remote gateway’s IP address. Click OK.
2.8.3 Setting Up the LAN IPv6 Interface
1 Select lan1 in the IPv6 Configuration section in the CONFIGURATION > Network > Interface
> Ethernet screen and click Edit.
2 The Edit Ethernet screen appears. Select Enable Interface and Enable IPv6.
Type 2003:1111:1111:1::1/128 in the IPv6 Address/Prefix Length field for the LAN1’s IP
address.
Enable Router Advertisement. Then click Add in the Advertised Prefix Table to add
2003:1111:1111:1::/64. The LAN1 hosts will get the network prefix through router
advertisements sent by the LAN1 IPv6 interface periodically. Click OK.
