Chapter 4 Create Secure Connections Across the Internet

ZyWALL USG 20-2000 User’s Guide

4.6 L2TP VPN with Android, iOS, and Windows

L2TP VPN uses the L2TP and IPSec client software included in remote users’ Android, iOS, or

Windows operating systems for secure connections to the network behind the ZyWALL.

1 L2TP VPN uses one of the ZyWALL’s IPSec VPN connections. Edit Default_L2TP_VPN_GW as

follows:

•Set My Address to the WAN interface domain name or IP address you want to use.

• Replace the default Pre-Shared Key.

2 Create a host-type address object containing the My Address IP address configured in the

Default_L2TP_VPN_GW and set the Default_L2TP_VPN_Connection’s Local Policy to use it.

3 In Configuration > VPN > L2TP VPN enable the connection and set the VPN connection L2TP

VPN uses, the L2TP client IP address pool, the authentication method, and the allowed users.

4 Configure a policy route to let remote users access resources on the network behind the ZyWALL.

• Set the policy route’s Source Address to the address object that you want to allow the remote

users to access (LAN1_SUBNET in the following example).

•Set the Destination Address to the IP address pool that the ZyWALL assigns to the remote

users (L2TP_POOL in the following example).

• Set the next hop to be the VPN tunnel you are using for L2TP.

4.6.1 L2TP VPN Example

Here a sales representative uses a laptop to securely connect to the ZyWALL’s network.

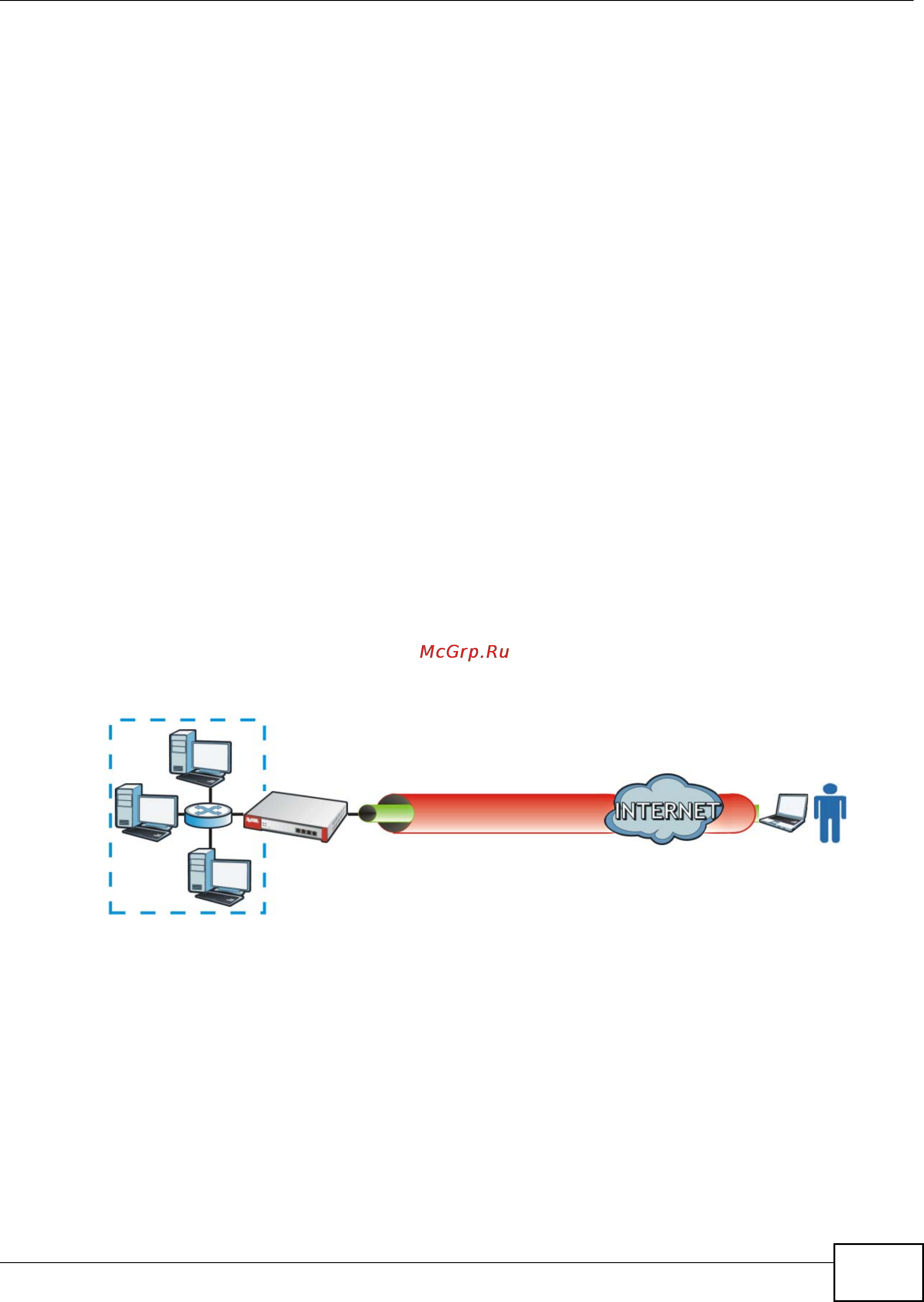

Figure 34 L2TP VPN Example

• The ZyWALL has a WAN interface with a static IP address of 172.16.1.2.

• The remote user has a dynamic public IP address and connects through the Internet.

• You configure an IP address pool object named L2TP_POOL to assign the remote users IP

addresses from 192.168.10.10 to 192.168.10.20 for use in the L2TP VPN tunnel.

• The VPN rule allows the remote user to access the LAN1_SUBNET (the 192.168.1.x subnet).

Do the following to configure the L2TP VPN example:

172.16.1.2

L2TP_POOL:

192.168.10.10~192.168.10.20

LAN1_SUBNET:

192.168.1.x
