Chapter 4 Create Secure Connections Across the Internet

ZyWALL USG 20-2000 User’s Guide

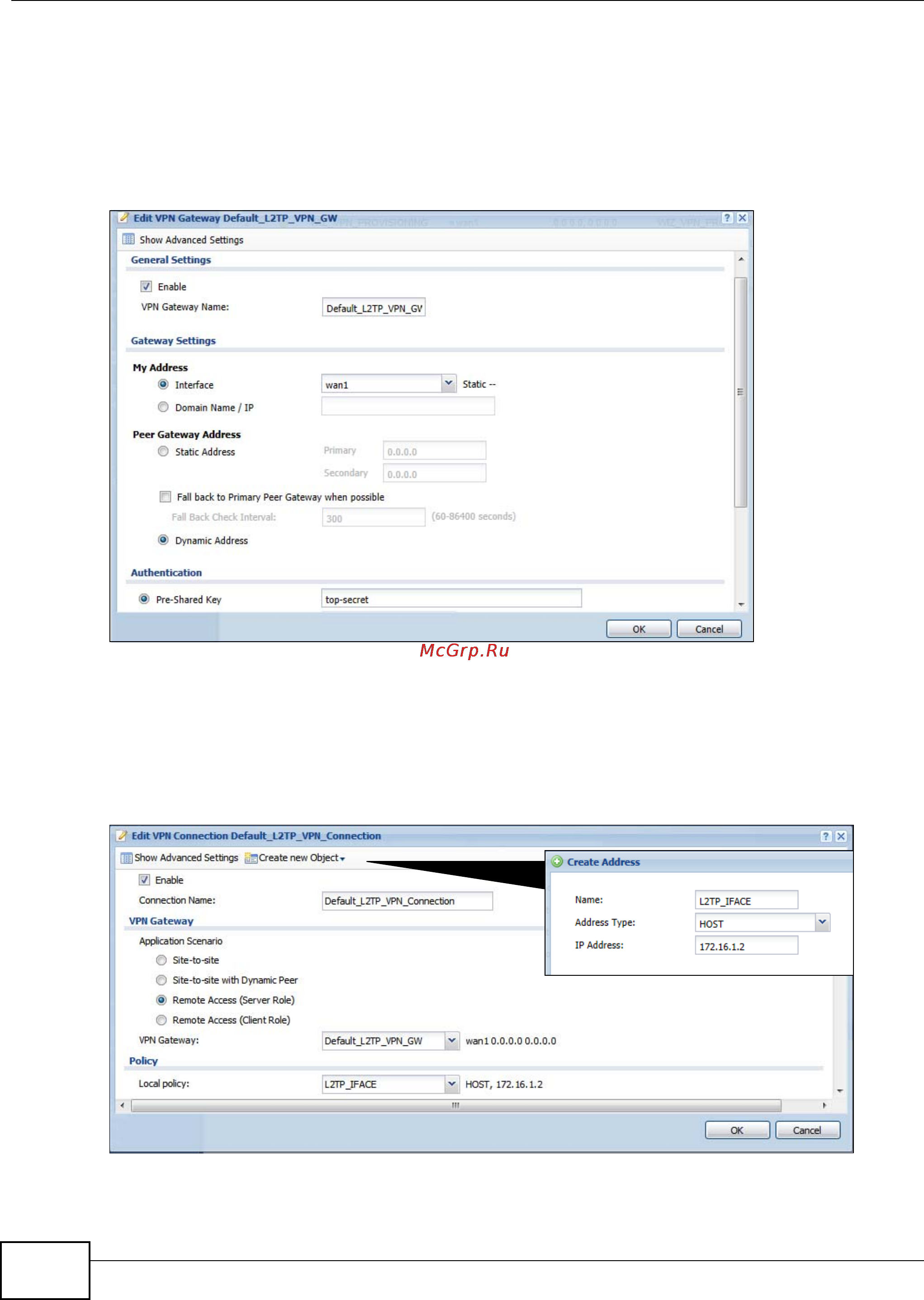

1 Click Configuration > VPN > IPSec VPN > VPN Gateway and double-click the

Default_L2TP_VPN_GW entry.

Select Enable.

Set My Address. This example uses a WAN interface with static IP address 172.16.1.2.

Set Authentication to Pre-Shared Key and configure a password. This example uses top-

secret. Click OK.

2 Click the VPN Connection tab and double-click the Default_L2TP_VPN_Connection entry.

Click Create New Object > Address and create a host type address object that contains the My

Address IP address you configured in the Default_L2TP_VPN_GW. The address object in this

example uses the WAN interface’s IP address (172.16.1.2) and is named L2TP_IFACE.

Select Enable, set Application Scenario to Remote Acces and Local Policy to L2TP_IFACE,

and click OK.

172.16.1.2
